Summary of Contents for EAW NTX Series

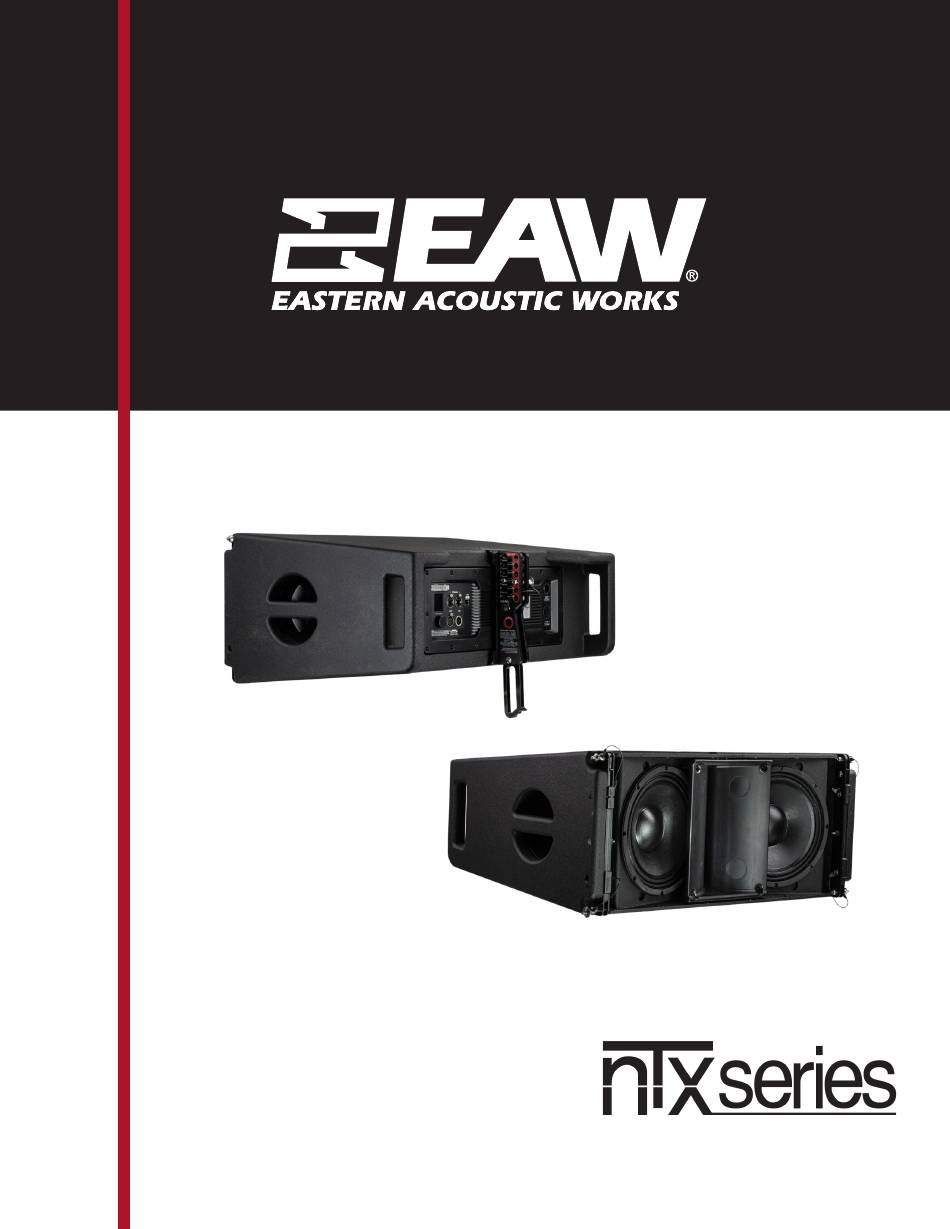

  • Page 1 Quickstart Guide...

  • Page 2: Table Of Contents

    SECTION 1 – INTRODUCTION ......................2 SECTION 2 – UNBOXING YOUR NTX SERIES SYSTEM ................3 SECTION 3 – SETTING UP YOUR NTX SERIES NETWORK ..............5 SECTION 4 – UPDATING FIRMWARE ON NTX OR SBX MODULES............7 SECTION 5 – GOING ONLINE ......................9 SECTION 6 –...

  • Page 3: Section 1 - Introduction

    This guide is intended to get you up and running with your NTX Series system as quickly as possible. It will detail the process from start to finish, from receiving your NTX or SBX loudspeakers to the first downbeat of the gig.

  • Page 4: Section 2 - Unboxing Your Ntx Series System

    *not required if network control and/or Dante audio aren’t used. Section 2 – Unboxing Your NTX Series System Inventory When you receive your NTX Series loudspeakers please make sure that each of the following items is included. Each NTX Series loudspeaker should ship with: NTX or SBX loudspeaker •...

  • Page 5: Operation Modes

    Operation Modes NTX Series loudspeakers offer many advanced features that are designed to make it as simple as possible to deliver excellent audio performance. Dante compatibility, wireless network control, and redundant analog backups are just a few of the features that work towards that goal. While we encourage users to take advantage of these, it isn’t required.

  • Page 6: Section 3 - Setting Up Your Ntx Series Network

    Section 3 – Setting up your NTX Series network While a network is not required to operate a NTX Series system, it is required for network control and/or Dante audio. Some general network suggestions are outlined below, as well as diagrams of sample networks for Dante and control, and control only.
  • Page 7 Figure 4 illustrates a sample network for control only, without Dante audio. Like the example of the Dante network above, individual NTX Series modules, or groups of modules daisy-chained together, have ‘home runs’ to a network switch. Care must be taken to not form a network loop, where any loudspeaker, or group of daisy chained loudspeakers, is connected twice to a switch or router.

  • Page 8: Section 4 - Updating Firmware On Ntx Or Sbx Modules

    The Dante ports on NTX Series loudspeakers are bidirectional, either can be used to connect with other • devices. Port C on the rear of NTX Series loudspeakers is identical to the Dante ports, but multicast Dante traffic is • filtered out. The computer running Resolution 2 can be directly connected to this port.
  • Page 9 Select the firmware file (.eawfw) in C:\ProgramData\EAW Resolution:...

  • Page 10: Section 5 - Going Online

    Communications is established by clicking Network on the Menu bar and selecting Connect. Resolution 2 will then search for any NTX Series devices on the network and displays them in the Online Devices list. This list will include your computer running Resolution 2.

  • Page 11: Section 6 - Assigning Physical Arrays/Modules To Modeled Arrays/Modules In Resolution

    NTX Series devices are grouped according to how they are physically arrayed, so if you have assembled an array of two modules in a single vertical column for example, those will be listed as: Array # Column 1 EAW-Module-##### EAW- Module -##### …….

  • Page 12: Section 7 - Managing Ntx Arrays In Resolution

    Columns and the meters. A physical NTX Series Array in the Online Devices list can be assigned or associated with a modeled Array in the model by simply clicking on the Array in the list and dragging it on to the appropriate modeled Array.
  • Page 13 Double clicking the name of an Array will open the Array Configuration dialog. Right clicking a module in an Array will open a menu with options to Insert Item Above, Insert Item Below, Unassign, or Remove Array Item.
  • Page 14 Double clicking a module will open the Diagnostics Window for that module. For online networked NTX Series Modules, it is possible to run a driver test on individual drivers, a group of drivers, or an auto sequence of each driver ending with a full range test.

  • Page 15: Section 8 - Assigning Inputs In Resolution

    Array to receive signal. This may be a Dante module transmitting an Analog or AES input or other Dante on-ramp source such as your Dante equipped digital mixing console. All other NTX Series modules in that Array will automatically be configured to receive the Dante audio signal from that source. Analog back up is...
  • Page 16 Selecting Analog The only option for an analog configuration for a NTX Series system is to select analog from the Mode pull down. This changes each input assignment to the XLR Input/Thru connections per module. Selecting Dante Select which Dante source you want to use then choose which Dante channel you want the Array to receive signal.

  • Page 17: Section 9 - Optimizing Ntx Line Arrays In Resolution

    Section 9 – Optimizing NTX Line Arrays in Resolution Go online with the system Click on Network > Connect. • Input Self-Test All devices will appear under Online Devices Input Self-Test...
  • Page 18 Click and drag on arrays or devices to create an array Input Self-Test Choose Ground stacked or Flown An array will automatically create and appear in the right window pane...
  • Page 19 If an IR sensor is not working, it’s possible to manually add an array item, then click and drag the “fragmented” online device to assign. Input Self-Test The green indicators verify that the array is now operating as expected and ready to use.
  • Page 20 Select the array then double click on the EQ/DSP under Properties Check Optimize Options Array Length Compensation: LF Coupling • Air Loss Compensation: HF Shading •...
  • Page 21 Then click Upload Array Parameters When each module status is synchronized, the system is now optimized and ready to use...
  • Page 22 Resolution uses the venue model and array configuration (array size, height, and position) to determine optimization...

  • Page 23: Section 10 -Rigging

    Section 10 -Rigging The assembly of two NTX modules can be done following the steps below: On the first module, remove the pins [3], raise the retractable brackets [2] and fasten them to the new • position using the pins [3]. Remove the pins [1] from the second module, place it on top of the first module, inserting the brackets [2] •...
  • Page 24 The below example explains two cases in which you want to set a specified angle between two modules using the rear rigging. Before carrying out any other operation, make sure that once the movable arm is inserted [6], the hole of the chosen angle is contained inside the loop as shown.
  • Page 25 For quick installation, the following optional accessories can be purchased: Fly-bar for the flown and stacked use for line arrays of NTX210L modules. • A cart to transport up to 4 NTX210L modules. • NTX210L Flybar NTX Flybar using one shackle/pick NTX Flybar using two shackles/pick point points...
  • Page 26 • NTX Series Array Transition Bar To array an SBX118F subwoofer with NTX210L line array loudspeakers, the NTX Series transition bar is needed. Follow the steps outlined below to build the array. Connect the NTX Series flybar to the first SBX118F in the array using the 4 rigging •...
  • Page 27 Connect any additional SBX118F using the same four rigging points as used • previously by the flybar. To rig NTX210L to array, start by pinning transition bar to the first NTX210L and set • splay angle using angle and locking pin. Connect NTX210L to front points on the bottom of SBX118F, and the two transition •...
  • Page 28 NTX210L with the transition bar. Additional NTX line array cabinets may be added by following the steps outlined at the top of Section 10 on page 22. Carts, casters and caster pallets available for NTX Series Products The NTX Cart can transport up to 4x NTX line array items.

  • Page 29: Service, Inspection & Maintenance

    SBX subwoofers. Service, Inspection & Maintenance General Service All components in the NTX Series systems are designed to withstand the most rigorous and demanding environments. Through regular operation it may still be necessary to replace acoustical, electronic and mechanical components.
  • Page 30 Eastern Acoustic Works 19 National Drive Franklin, MA 02038 tel 800 992 5013 / +1 508 234 6158 www.eaw.com ©2024 Eastern Acoustic Works All rights reserved. Products are not drawn to scale. All terms, conditions, and specifications subject to change without notice.
