NT206L
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NT Series and is the answer not in the manual?

Questions and answers

Related Manuals for EAW NT Series

Summary of Contents for EAW NT Series

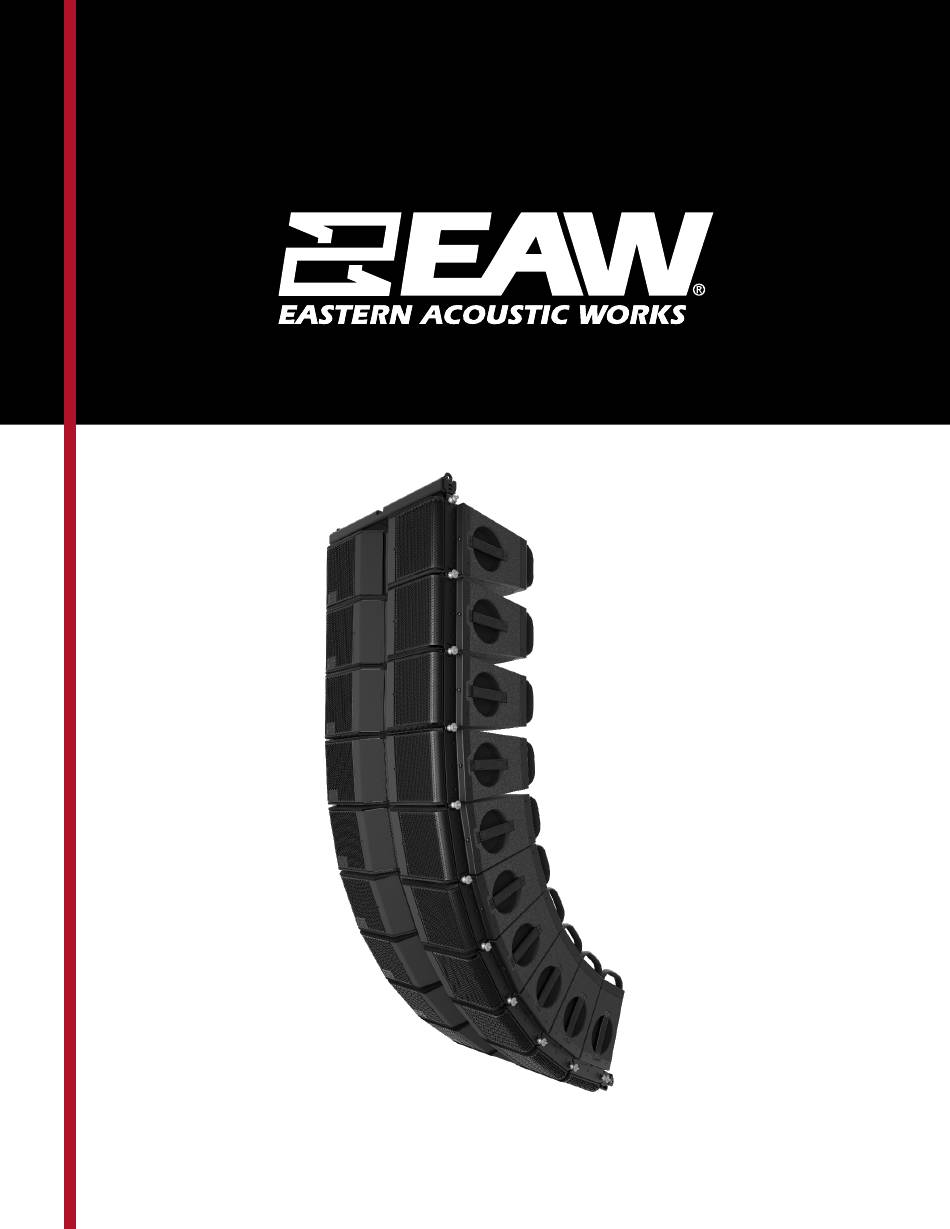

  • Page 1 NT206L User Manual...
  • Page 2 Ensure that ac power supply has a properly grounded safety ground. Failure to follow this warning could cause equipment damage, injury, or death. 17) Do not use at altitude exceeding 2000m above sea level. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...

  • Page 3: Consignes De Sécurité - À Lire En Premier

    Lisez et respectez toutes les consignes de sécurité et les mises en garde fournies dans le manuel des enceintes EAW avant d'utiliser ce produit. Le non-respect de ces consignes et mises en garde peut entraîner des dommages aux équipements et des accidents aux personnes pouvant être fatals.
  • Page 4 SICHERHEITSHINWEISE - LESEN SIE DIESEN ABSCHNITT ZUERST Sicherheitsanweisungen Lesen und beachten Sie alle Warnungen und Sicherheitsanweisungen der mitgelieferten "EAW Lautsprecher Bedienungsanleitung" vor der Benutzung des Produkts. Nichtbeachtung dieser Hinweise können möglicherweise zu Schäden am Equipment oder zu Verletzungen bzw. zum Tod von Personen führen.
  • Page 5 Stellen Sie sicher, dass er Schutzleiter der Netzsteckdose ein gute Verbindung zur Erde hat. Nichtbeachtung dieses Hinweises kann zu Schäden am Equipment, zu Verletzungen oder zum Tod führen. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 6 Anforderungen zu bestimmen und Überkopfmontage zu implementieren. Nur Personen mit der Kenntnis der richtigen Hardware und sichere Rigging Techniken sollten Lautsprecher Kopf auszusetzen versuchen. Die Nichtbeachtung dieser Vorsichtsmaßnahmen kann zu Schäden, Verletzungen oder zum Tod führen. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 7 CAUTION: Changes or modifications not expressly approved by EAW could void the user's authority to operate the equipment. The normal function of the product may be disturbed by strong electromagnetic interference. If so, simply reset the product to resume normal operation by following this instruction manual.

  • Page 8: Technical Specifications

    1 x 1-in exit, 1.75-in voice coil Compression Driver HF Transducer Adjustable Horizontal Directivity (AHD) Horn Loaded with Isophasic waveguide Crossover 1.2kHz Signal Processing DSP with EAW Focusing ™ and DynO™ Modes Flat, Boost ELECTRICAL Input Type Electronically Balanced XLR...
  • Page 9 Although EAW will help in any way possible, it is always the responsibility of the receiving party to file any shipping damage claim. The carrier will help prepare and file this claim.
  • Page 10 7. Limit LED Indicator - The limit indicator will turn red when the output has reached its maximum level. If the LED blinks occasionally, EAW DynO™ will optimize the output and continue to provide clear output at its maximum volume. If the LED blinks frequently or is lit continuously, reduce the level control (1) to prevent output distortion.

  • Page 11: Linking Power

    Up to two additional NT206L products can be looped in this fashion. Use an AC loop connector to daisy-chain AC mains power from one enclosure to another. The maximum, continuous load must not exceed 16A for both the 115V version and the 230V version. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 12 NT206L User Manual EAW DSP Innovations DynO™ is a revolutionary processing technique that allows EAW Engineers to maximize output from a given amplifier – transducer combination. As opposed to conventional limiting which simply views amplifier output and driver power handling in aggregate (i.e. a driver can handle 100 watts or an amplifier can produce 500 watts), the DynO process involves much more detail and complexity.
  • Page 13 User Manual Configuring the adjustable horn Using EAW Adjustable Horizontal Directivity (AHD) technology, its possible to adjust the horn horizontal dispersion from 80 degrees to 110 degrees. Asymmetric (95 degrees left or right of center) coverage may also be deployed by adjusting one part of the horn to 80 degrees, while setting the other part to 110 degrees.
  • Page 14 NT206L (each cabinet weighs approximately 30lbs/13kg) Accessory List (All accessories come with the NT206L Flybar Kit) Accessory Name Quantity Reference Flybar Frame & Groundstack Adapter Stinger w/Link Bracket M20 Mount Adapter Pole Mount Adapter Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 15 Resolution software, and connect shackles to stinger. Figure 1 • Place flybar on top cabinet and pin front positions using pins attached to flybar (Figure 2). Figure 2 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 16 (Figure 4). Lock angle into place by using a pin from the bottom cabinet into the angle lock of the top cabinet. Figure 4 • Repeat the process for each array element that is added. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 17 (Figure 6). Swing rear rigging down and pin to rear rigging of the frame using pin attached to the frame (Figure 7). Using pin on first NT206L cabinet, secure by pinning angle lock. Figure 6 Figure 7 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 18 Using pins on the second cabinet, pin the angle lock (Figure 9b) • Repeat these steps for all additional modules (Up to 3x NT206L are supported depending on the rating of the pole being used) Figure 8 Figure 9a Figure 9b Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 19 Swing down the rear rigging and pin chosen splay angle using pin on the first cabinet (Figure 13a-13b). • Using pins on the second cabinet, pin the angle lock (Figure 13b). • Repeat these steps for all additional modules. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 20 NT206L Groundstack Array with Subwoofer using the M20 Mount Adapter 1. Create Subwoofer M20 Mount Assembly • Invert Flybar and pin M20 Mount Adapter (C) to Flybar Frame (A) using pins on frame (Figure 14). Figure 14 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 21 NT206L User Manual 2. Place flybar assembly on top of a supported EAW subwoofer (SBX118F, SBX218, RS115, RS118, RSX18F) and line up mount to threaded M20 pole cup on the cabinet (Figure 15). Secure by turning clockwise until fully tightened and oriented in the correct location.
  • Page 22 (Figure 19a-19b). • Using pins on the second cabinet, pin the angle lock (Figure 19b). • Repeat these steps for all additional modules. Figure 18 Figure 19a Figure 19b Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 23 • Connect the flybar assembly to the most bottom cabinet in array by pinning the two front rigging positions using the pins attached to the frame (Figure 2) Figure 2 Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 24 Swing the rear rigging from the bottom cabinet down and secure to the flybar frame using the pin on the frame (Figure 3). Figure 3 • Connect rigging point to shackle to adjust array tilt/pullback angle. Tel 800 992 5013 / +1 508 234 6158 www.eaw.com...
  • Page 25 SERVICEABLE. Internal Electronics and Wiring NT206L Amplifier Modules are not user-serviceable and must be sent to EAW for repair. In the unlikely event of a failure of any amplifier or processing components, simply remove and replace the entire Amplifier Module with a spare.
