EAW AS660e Specifications

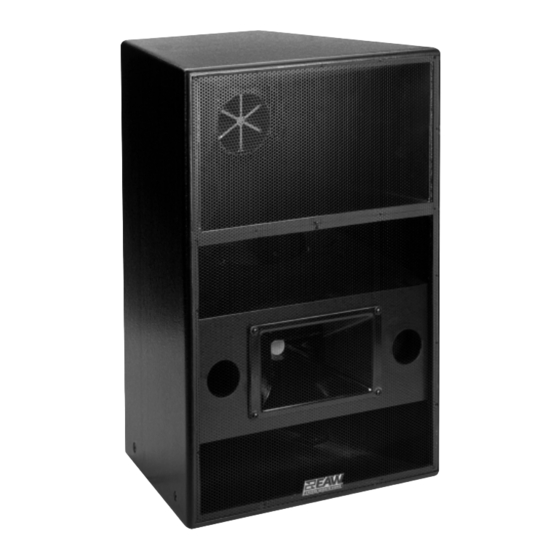

DESCRIPTION

A bi-amplified (passive mid/high crossover) or tri-amplified
3-way full range system in a trapezoidal enclosure. Includes
2x 12-in woofers (separated vertically), a horn-loaded 10-in
MF cone with Radial Phase Plug™ and a 1.4-in exit/2.5-in
voice coil HF neodymium compression driver on a 60° x 45°
constant directivity horn.

APPLICATION

The AS660e is engineered for use in permanent installations.
Optimized subsections provide excellent full range frequency
response in a medium format enclosure. Includes comprehen-
sive 3/8"-16 mounting/suspension points. Six year warranty.
Applications include
Stadiums
Performing Arts Centers

PERFORMANCE

Frequency Response (Hz)
±3 dB 67 Hz to 15 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive MF/HF 107
LF 102
MF 109
HF 109
Impedance (Ohms)
Passive MF/HF 8
LF 4
MF 8
HF 8
Power Handling (Watts, Continuous)
Passive MF/HF 450
LF 800
MF 400
HF 125
Recommended High-Pass Frequency
24 dB/Octave 40 Hz
Calculated Maximum Output (dB SPL @ 1m)
Passive MF/HF Peak 139
LF Peak 137
MF Peak 141
HF Peak 136
Passive MF/HF Long term 133
LF Long Term 131
MF Long Term 135
HF Long Term 130
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arenas
Houses of Worship
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS AS660e
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal 60
Vertical 45

PHYSICAL

Product Group I
System Configuration 3-way, full range
Powering Configuration(s) Bi-amplified (passive MF/HF
LF Subsystem & Loading 2x 12-in, vented
MF Subsystem & Loading 1x 10-in cone, Radial Phase
HF Subsystem & Loading 1x 1.4-in exit/2.5-in voice
Cabinet Type (shape) Trapezoidal
Enclosure Materials Exterior grade Baltic birch
Finish Wear-resistant textured black
Connectors 2x 6-Contact terminal barrier
Suspension Hardware (18) 3/8"-16 threaded mounting/
Grille Powder coated perforated steel
FAX 508 234 8251
AS660e/2 pp
crossover) or tri-amplified
Plug™/ horn-loaded
coil neodymium compression
driver on constant directivity horn
plywood
paint
strip, jumpers used for powering
configuration
suspension points (4 each on
top, bottom and sides, 2 on back)
info@eaw.com www.eaw.com
October 2001 Printed in USA
