EAW JFL210 Specification Sheet

J F L 2 1 0 S p e c i f i c a t i o n s
FEATURES
• Constant curvature line array
• Very easy to pole mount, fly and ground stack
• Vertical arrays of up to six units may be constructed
• High output capability and predictable pattern control
DESCRIPTION

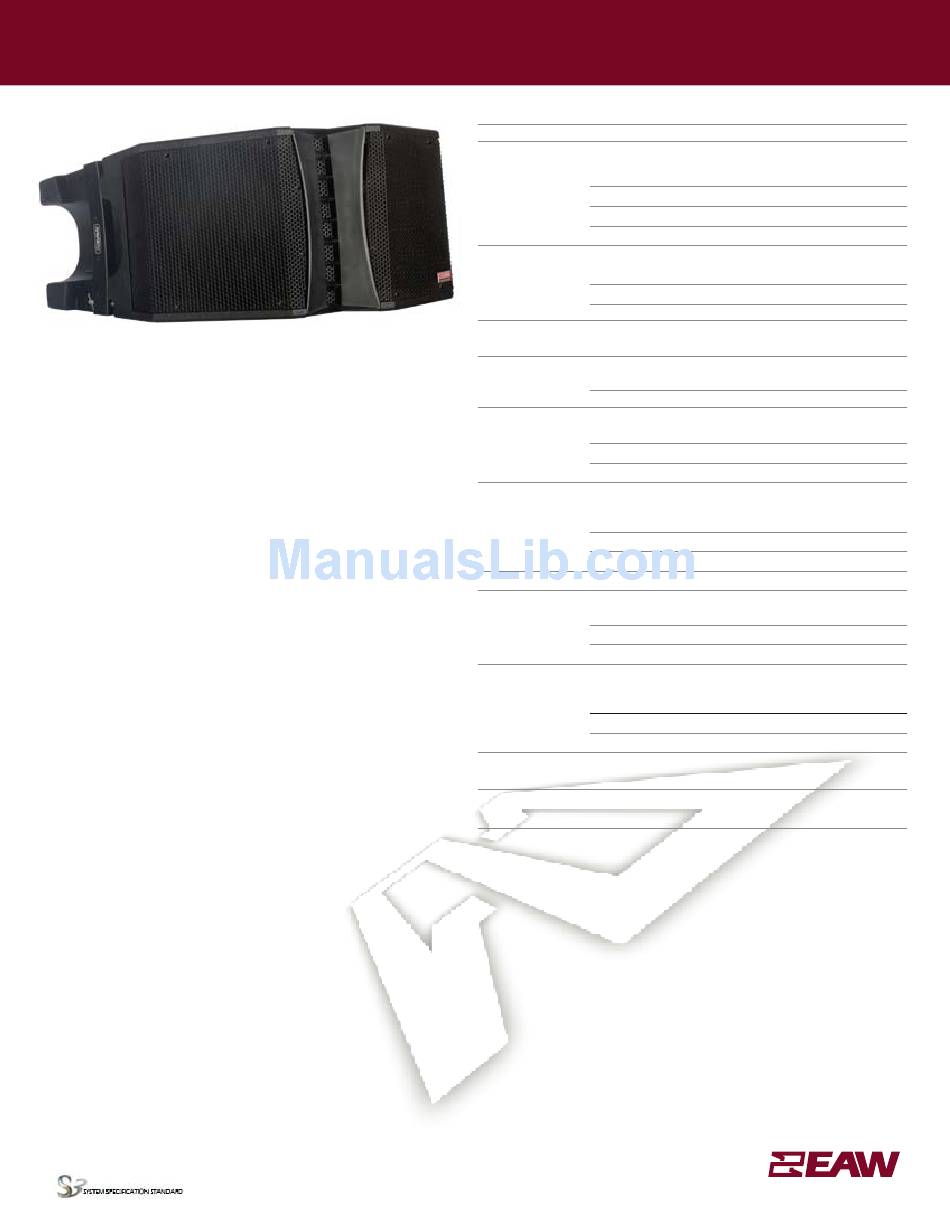

The JFL210 compact line array module features a range of EAW's most
innovative line array technologies within a mobile, light weight package
that's an ideal solution for a multitude of small- and medium-sized
applications, including portable and installed A/V as well as musician/DJ
systems. Incorporating constant curvature line array design principles,
JFL210 modules form easily configured arrays with very predictable
coverage that is both horizontally symmetric and consistent from short to
long throws.
The JFL210's size, shape and weight are optimized for transport and set-
up by one person. Side handles are integrated with the rigging system
and are aligned with the enclosure's center of gravity for superior balance
and stability. Up to two JFL210s may be mounted on a loudspeaker
stand with a 35 mm / 1.38 in diameter pole. Dual-angle, integral pole
mount holes allow the bottom enclosure to be aimed 0° or -15°.
The JFL210's ultra-strong rigging system has a 10:1 design factor, which
meets or exceeds all standards enforced throughout the world. The
rigging is simple to use – enclosures may be easily joined together by
one person acting alone. For portable, flown applications the accessory
FB121 Fly Bar will suspend up to six JFL210 and allow a wide range of
array tilt angles to be readily achieved. The FB121 also doubles as a
ground stack base for up to four JFL210s. Alternately, a pair of threaded
M10 rigging points are available on the enclosure's top and bottom
panels for cost-sensitive permanent install applications.
Users may switch between single- or bi-amp powering modes. An
additional HF Shading switch is active in single-amp mode. It optimizes
high frequency response for single-box or multi-box arrays, or inserts a
correction filter for the high frequency air loss encountered in long throw
applications. When the JFL210 is operated in bi-amp mode the HF
Shading filters are applied in DSP.
Dual Neutrik® Speakon® STX Series NL4 jacks are provided for system
input. The STX Series' all-metal housings are extremely rugged, and
provide weather protection to IP54 when mated with a complementary
STX Series cable connector. The powering mode and HF Shading
switches are recessed and shrouded with a rubber boot for additional
weather protection.
While the JFL210 offers excellent performance with nearly any
loudspeaker processor, its response can be optimized even more
precisely with an EAW UX8800 4×8 digital processor. The UX8800
functions as an excellent overall system manager, processor and
controller, while its Gunness Focusing alignment and driver processing
algorithms dramatically enhance temporal performance.
Overall construction matches the high standards long applied to EAW
portable and touring products. Enclosures are protected by our tough,
highly scratch-resistant RoadCoat™ finish and durable, foam-backed
steel grilles protect the transducers while hiding them from view.
Six year warranty.
EAW products are continually improved. All specifications are therefore subject to change without notice.
Eastern Acoustic Works • One Main Street • Whitinsville, MA 01588 • tel 800 992 5013 / 508 234 6158 • fax 508 234 8251 • www.eaw.com
2-WAy FUll-RANgE, 110° × 15°
See NOTES TABULAR DATA for details
CONFIgURATION
Subsystem:
Transducer
LF 2 x 10 in cone
HF 1 x 1.4 in exit, 3 in voice
coil compression driver
Operating Mode:
Amplifier Channels
Single-amp LF/HF
Bi-amp LF,HF
PERFORMANCE
Operating Range: 65 Hz to 18.5 kHz
Nominal Beamwidth:
Horz 110°
Vert 15°
Axial Sensitivity (whole space SPL):
LF/HF 95 dB
LF 95 dB
HF 105 dB
Input Impedance (ohms):
Nominal
LF/HF 8
LF 8
HF 8
High Pass Filter: High Pass>=60 Hz, 12 dB/octave Butterworth
Accelerated life Test:
LF/HF 80 V
LF 80 V
HF 35 V
Calculated Axial Output limit (whole space SPL):
Average
LF/HF 124 dB
LF 124 dB
HF 127 dB
ORDERINg DATA
Description
EAW JFL210 Black
Optional Accessories
EAW FB121 Fly Bar Black
M10 x 1.5 Forged Shoulder Eyebolt
group · J
Loading
Vented
Horn-loaded
External Signal Processing
High Pass Filter
DSP w/2-way filters
65 Hz to 18.5 kHz
65 Hz to 971 Hz
708 Hz to 18.5 kHz
Minimum
6.5 @ 280 Hz
10.9 @ 270 Hz
9.6 @ 4470 Hz
800 W @ 8 ohm
800 W @ 8 ohm
150 W @ 8 ohm
Peak
130 dB
130 dB
133 dB
Part Number
0029139-90
0031170
0029818
Part Number: RD0480 (A) JFL210 September 2008
