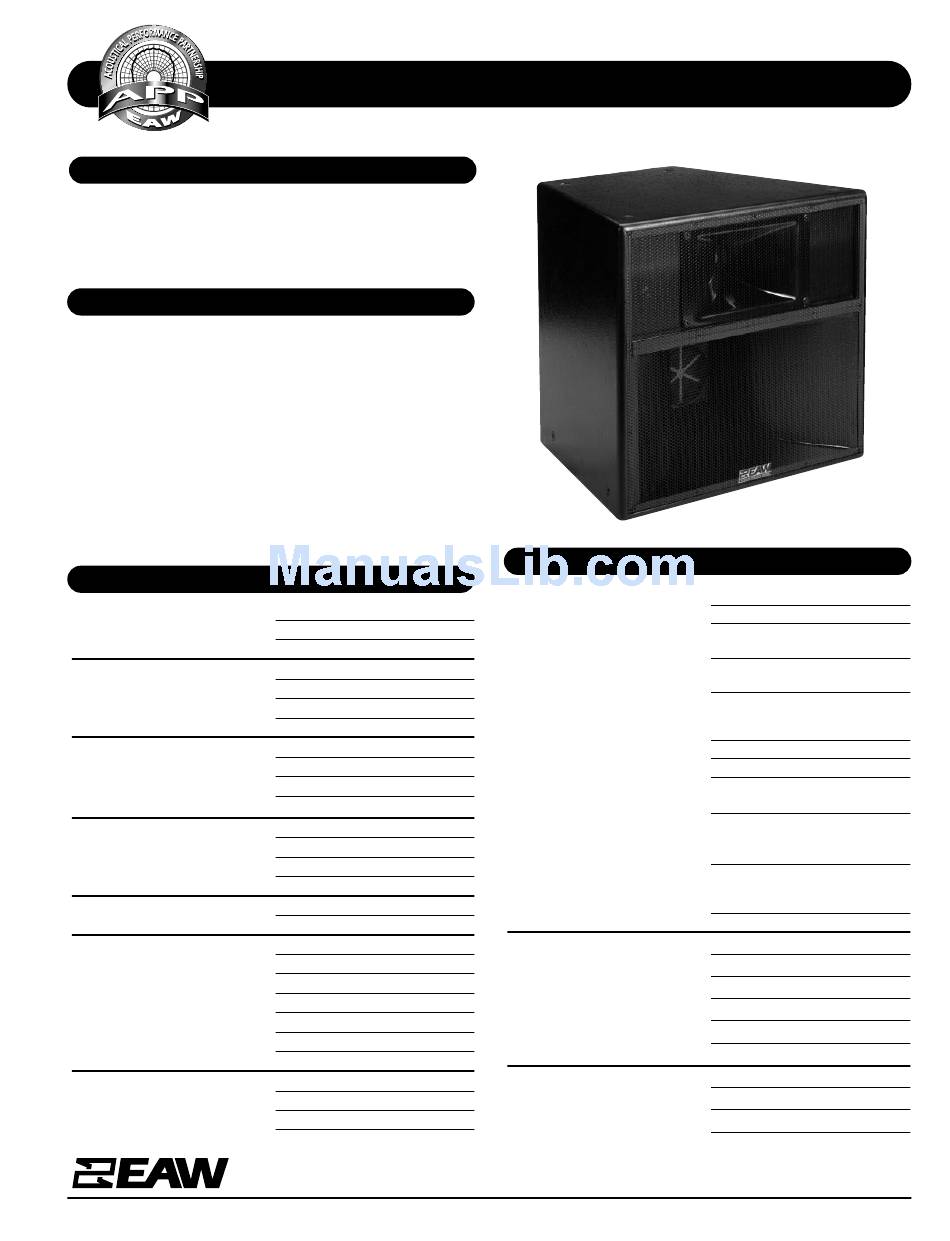

EAW AS490e Specifications

DESCRIPTION

A 2-way mid/high system in a trapezoidal enclosure. Includes
a horn-loaded 10-in MF cone with Radial Phase Plug™ and a
1.4-in exit/2.5-in voice coil HF neodymium compression driv-
er on a 90° x 45° constant directivity horn. Powering mode is
selectable: bi-amplified or passive MF/HF crossover.

APPLICATION

The AS490e is engineered for use in permanent installations.
It provides the mid/high performance capabilities of the
90°(h) ASe Series systems in a separate mid/high module. It
can be used as a stand-alone system for speech-only applica-
tions or, together with an AS415e, AS422e or AS625e LF mod-
ule, provide full range performance in a flexible, modular,
multi-enclosure format. Includes comprehensive 3/8"-16
threaded mounting/suspension points. Six year warranty.
Applications include:
Stadiums
Performing Arts Centers

PERFORMANCE

Frequency Response (Hz)
±3 dB 200 Hz to 15 kHz
-10 dB 180 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive MF/HF 107
MF 109
HF 109
Impedance (Ohms)
Passive MF/HF 8
MF 8
HF 8
Power Handling (Watts, Continuous)
Passive MF/HF 450
MF 400
HF 125
Recommended High-Pass Frequency
24 dB/Octave 200 Hz (speech), 300 Hz (with LF)
Calculated Maximum Output (dB SPL @ 1m)
Passive MF/HF Peak 139
MF Peak 141
HF Peak 136
Passive MF/HF Long term 133
MF Long Term 135
HF Long Term 130
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 90
Vertical 45
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arenas
Houses of Worship
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS AS490e

PHYSICAL

Product Group I
System Configuration 2-way, mid/high
PoweringConfiguration(s) Bi-amplified or passive MF/HF
MF Subsystem & Loading 1x 10-in cone, Radial Phase
HF Subsystem & Loading 1x 1.4-in exit/2.5-in voice coil
Cabinet Type (shape) Trapezoidal
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear-resistant textured black
Connectors 2x 6-Contact terminal barrier
Suspension Hardware (18) 3/8"-16 threaded mounting
Grille Powder coated perforated steel
Dimensions
Height 22.5
Width (front) 24.6
Width (rear) 12.3
Depth 23.0
Trapezoid Angle 15 Degrees per Side
Weights
Net Weight 95
Shipping Weight 110
FAX 508 234 8251
AS490e/2 pp
crossover
Plug™/horn-loaded
neodymium compression driver
on constant directivity horn
paint
strip, jumpers used for powering
configuration
points (4 each top, bottom and
sides, 2 on back)
inches millimeters
572
626
312
584
pounds kilograms
43.2
50.1
info@eaw.com www.eaw.com
October 2001 Printed in USA
