EAW SUBWOOFER AS415e Specifications

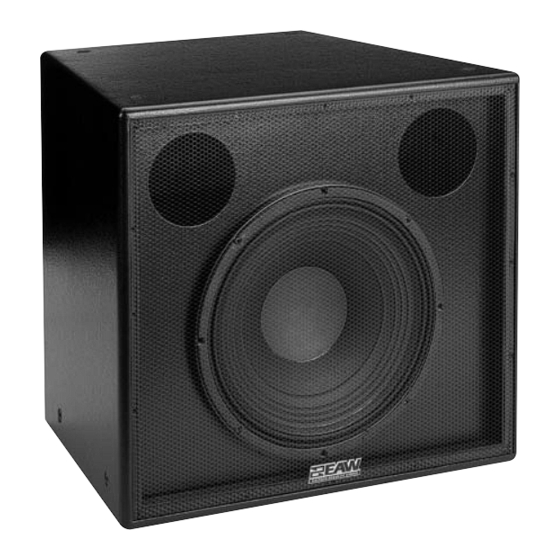

DESCRIPTION
A dedicated low frequency system in a trapeziodal enclosure.
Includes a vented 15-in woofer.
APPLICATION
The AS415e is engineered for permanent installations. It
complements the AS460e or AS490e mid/high modules to
provide full range performance in a flexible, modular, multi-
enclosure format. Its trapezoid angles create the ideal splay
for arrays of 2x AS460e's. Includes comprehensive 3/8"-16
threaded mounting/suspension points. Six year warranty.
Applications include:
Stadiums
Performing Arts Centers
PERFORMANCE
Frequency Response (Hz)
±3 dB 60 Hz to 500 Hz
-10 dB 47 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF 97
Impedance (Ohms)
LF 8
Power Handling (Watts, Continuous)
LF 600
Recommended High-Pass Frequency
24 dB/Octave 40 Hz
Calculated Maximum Output (dB SPL @ 1m)
LF Peak 130
LF Long Term 124
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arenas
Houses of Worship
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS AS415e
PHYSICAL
Product Group I
Configuration Dedicated low frequency system
LF Subsystem & Loading 1x 15-in, vented
Cabinet Type (shape) Trapezoidal
Enclosure Materials Exterior grade Baltic birch
Finish Wear-resistant textured black
Connectors 2-Contact terminal strip
Suspension Hardware (18) 3/8"-16 threaded mounting
Grille Powder coated perforated steel
Dimensions
Height 22.5
Width (front) 24.6
Width (rear) 16.5
Depth 23
Trapezoid Angle 10 Degrees per Side
Weights
Net Weight 88
Shipping Weight 103
FAX 508 234 8251
AS415e/2 pp
plywood
paint
points (4 each top and bottom
and sides, 2 on back)
inches millimeters
572
626
419
584
pounds kilograms
40.0
46.9
info@eaw.com www.eaw.com
October 2001 Printed in USA
