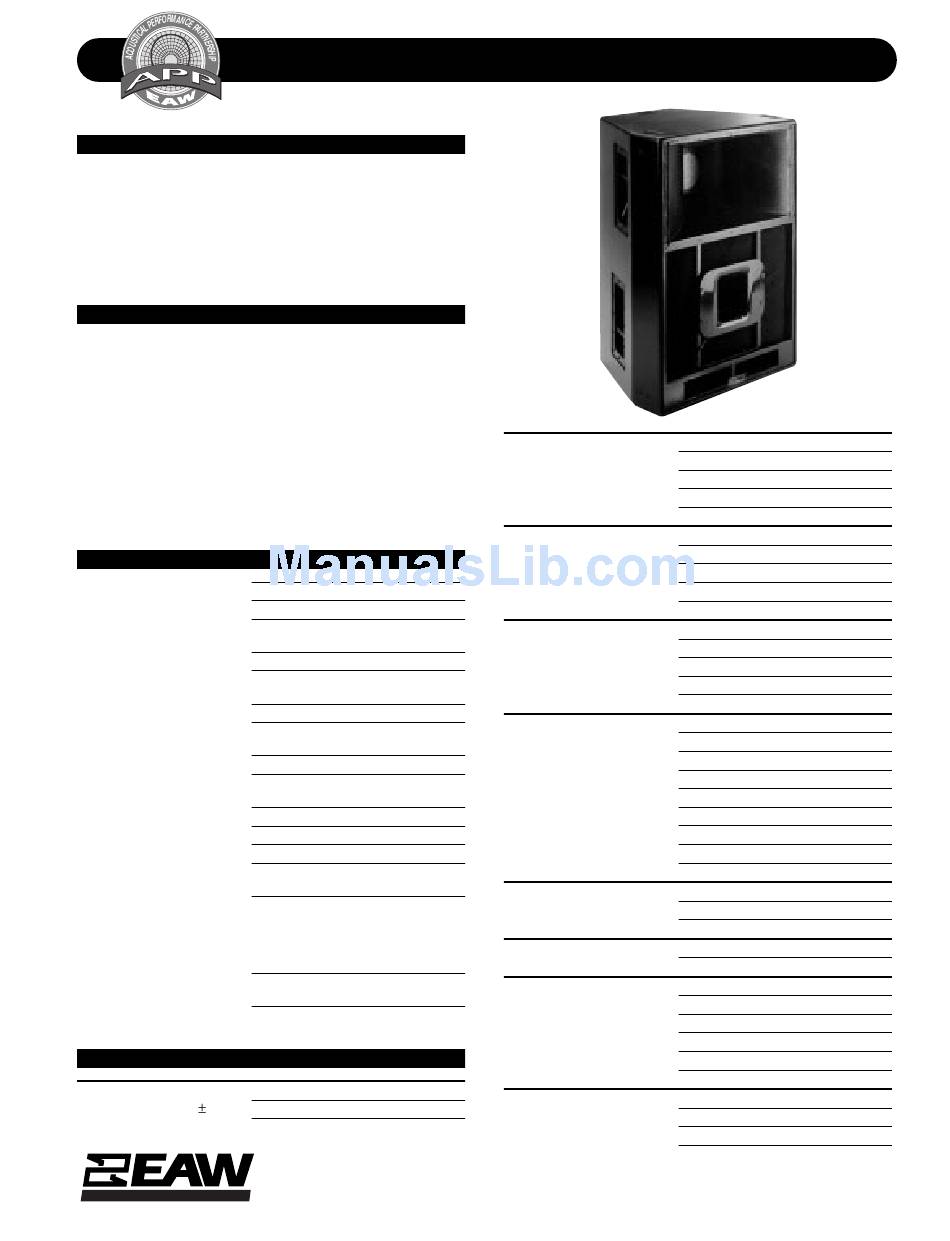

EAW KF695e Technical Specifications

DESCRIPTION
A 3-way full range system in a vented trapezoidal enclosure.
Includes a 15-in woofer in a wave guide cavity with ARC™
device, a horn-loaded 10-in midrange cone and a 2-in exit
compression driver mounted coaxially in the wave guide cavity
on a 90 x 40 constant directivity horn. Powering mode is
switchable: biamplified (passive MF/HF crossover) or
triamplified.
APPLICATIONS
The KF695e Virtual Array system's true 3-way design dra-
matically improves the quality of vocal reproduction while
its cone-driven midrange horn and horn loaded woofer ex-
tend pattern control into the lower octaves. Universal sus-
pension hardware (flytrack with integral 3/8"-16 mounting
point) supports permanent or portable applications. Six year
warranty.
Applications include:
Band PA
Corporate Events
Large HOW's
DESCRIPTIVE DATA
Part Number 999020
Product Group S
LF Subsystem & Loading 1x 15-in in a Wave Guide Cavity
with ARC™ Device
MF Subsystem & Loading 1x 10-in Horn-Loaded Cone
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 3-way, Full Range
Powering Configuration(s) Switchable: Biamplified (passive
MF/HF crossover) or Triamplified
Controls (switches, knobs) Powering Mode Switch
Recommended High-Pass
Frequency (24 dB/Octave) 45Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors I each male and female AP6
I each male and female AP4
Suspension Hardware (6) 3-Position flytrack with
integral 3/8"-16 suspension points
(3 each top and bottom) plus (5)
3/8"-16 threaded suspension
points (2 per side, 1 on back)
Grill Vinyl Coated Perforated Steel,
Foam Backed
Options 179001 Flyclip with ring
179002 Flyclip with hook
NOMINAL DATA
Frequency Response (Hz)
3 db 65Hz to 17kHz
-10 dB 50Hz
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# KF695e-888047 (A)/2 pp/1/29/99 • Printed In USA
TECHNICAL SPECIFICATIONS KF695e
Ballroom Events
Convention Centers
Live Music Club
Axial Sensitivity (dB SPL/1 Watt/1m)
Biamped MF/HF 107
LF 100
MF 107
HF 107
Impedance (Ohms)
Biamped MF/HF 8
LF 8
MF 8
HF 8
Power Handling, AES Standard (Watts)
Biamped MF/HF 400
LF 1000
MF 400
HF 200
Calculated Maximum Output (dB SPL, @ 1m)
Biamped MF/HF Peak 139.0
LF Peak 136.0
MF Peak 139.0
HF Peak 136.0
Biamped MF/HF Long term 133.0
LF Long Term 130.0
MF Long Term 133.0
HF Long Term 130.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 90
Vertical 40
Recommended Complementary Systems
Sub SB600e/SB625P
Dimensions inches
Height 33.22
Width (Front) 25.63
Width (Rear) 12.75
Depth 19.75
Trapezoid Angle 23 degrees per side
Weights pounds kilograms
Net Weight 147
Shipping Weight 162
millimeters
844
651
324
502
66.9
73.7
