Sheet Metal Parts

Within the Autodesk Inventor design environment, a sheet metal part can be
displayed as a folded model or a flat pattern. With sheet metal commands,
you can unfold features and work on a model in a flattened state, and then
refold the features.
You create sheet metal parts from a template file. The sheet metal template
file incorporates a set of rules. The rules determine some common attributes
such as material type and thickness, unfolding rules, gap sizes, and so on. By
changing a single rule, you can change the material of a sheet metal part from
An iPart typically generates multiple
unique parts that belong to the same
family.
NOTE You can create an iPart and save
it as a table-driven iFeature.
Location
Search: iPart Fundamentals"
Parts:
iParts - The Basics
iParts - Beyond the Basics
Chances are that a design you have been asked to create
contains components that lend themselves to fabrication
from sheet metal.
Autodesk Inventor provides functionality that simplifies the
creation, editing, and documentation of digital prototypes
of sheet metal components.

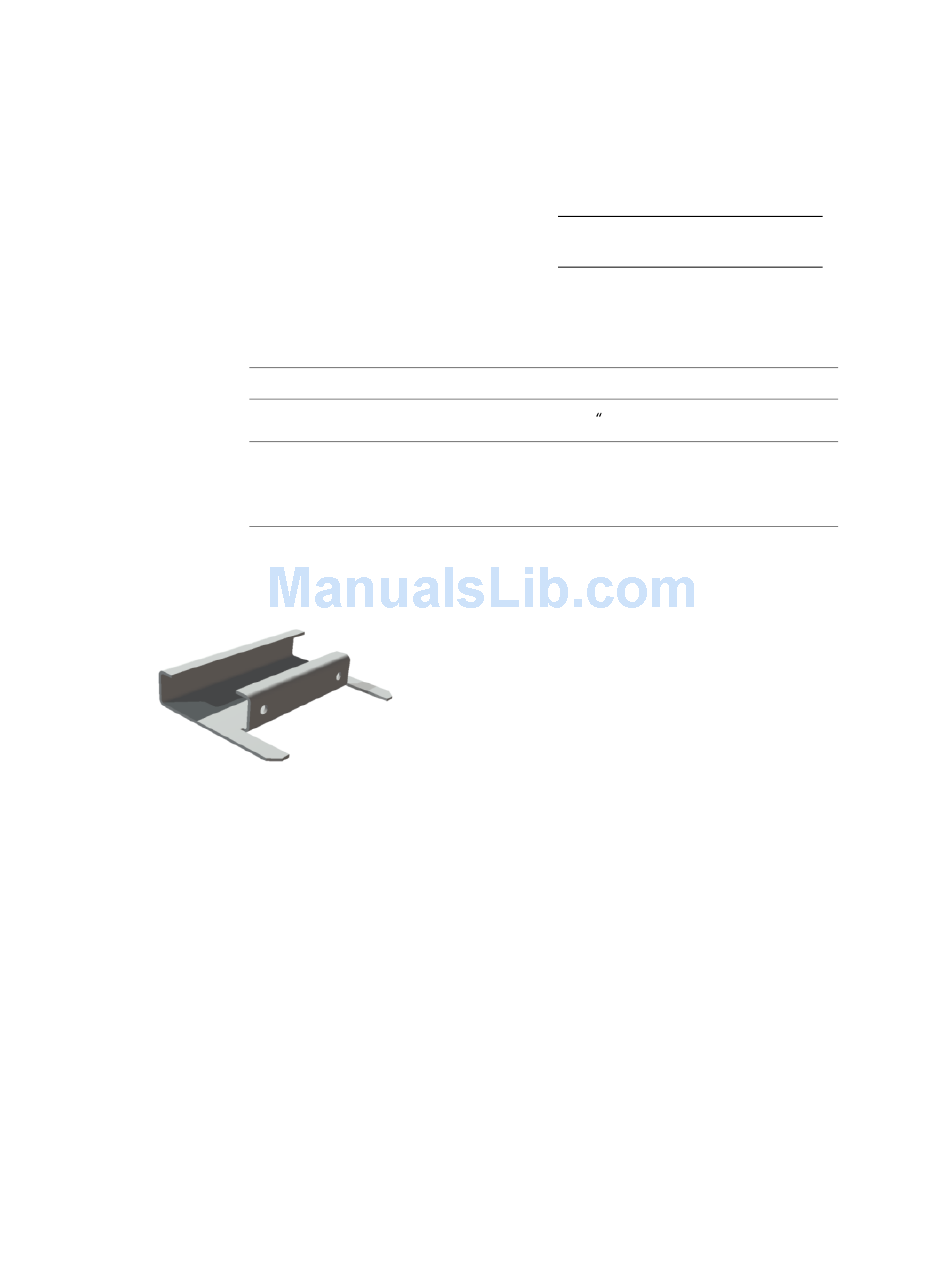

A sheet metal part is often thought of as a part fabricated
from a sheet of uniformly thick material. If you design small
objects, this material is often thin. However, in Autodesk
Inventor you can utilize the sheet metal commands on any
design where the material is of uniform thickness.
