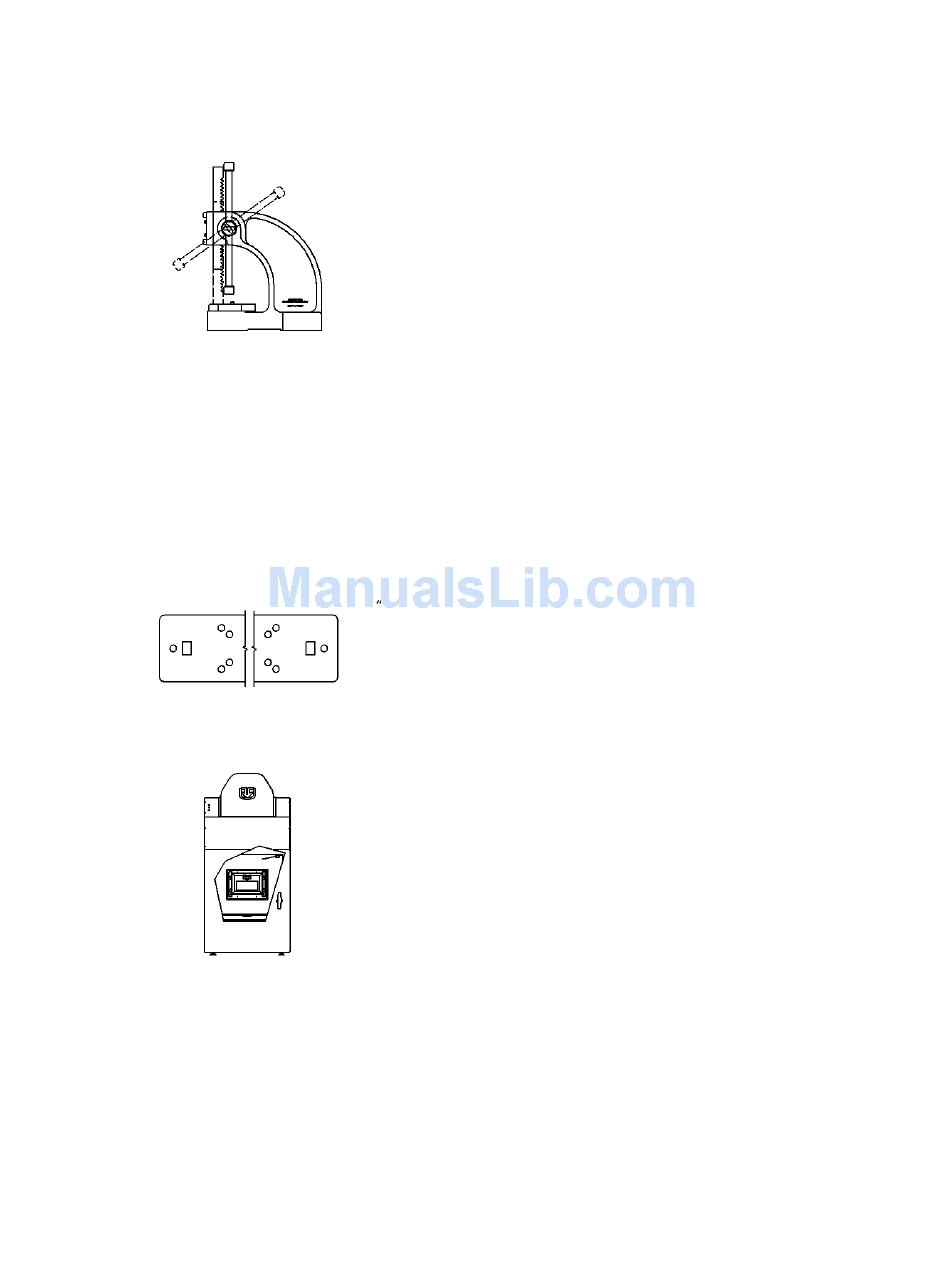

Overlay View
A single view that shows an assembly in multiple positions. Overlays
are available for base, projected, and auxiliary views. The overlay view
is created on top of the parent view.
Draft View
A view created from a 2D sketch in the drawing file. You can place a
draft view and construct a drawing without an associated model. A
draft view can provide detail that is missing in a model.

Drawing View Operations

Break
An operation that reduces the size of a model by removing or
breaking" irrelevant portions. Create a break in a view if the com-
ponent view exceeds the length of the drawing, or contains large
areas of nondescript geometry. An example is the center portion of
a shaft.
Dimensions that span the break reflect the true length.
Break Out
An operation that removes a defined area of material to expose ob-
scured parts or features in an existing drawing view. The parent view
must have an associated sketch that contains the profile defining the
break out boundary.
Create Views of Models | 43
