Decal

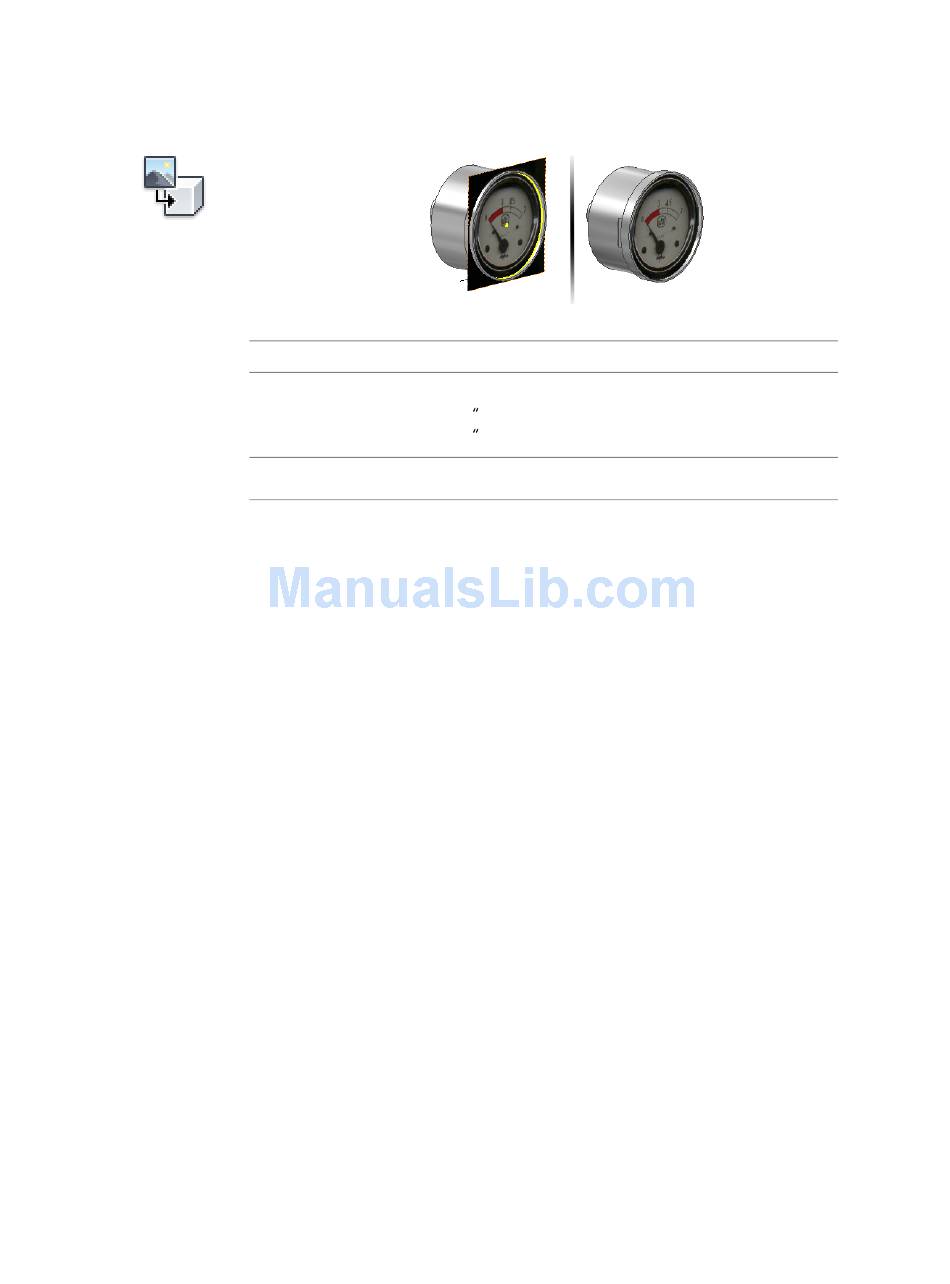

Applies an image file to a part face.
Use decal to add realism or to apply a
label.
For more information
Help topic
Tutorial

Sketch Environment

When you create or edit a sketch, you work in the sketch environment. The
sketch environment consists of a sketch and sketch commands. The commands
control the sketch grid and draw lines, splines, circles, ellipses, arcs, rectangles,
polygons, or points.
When you open a new part file, the sketch environment is active. The 2D
Sketch button is selected, and the Sketch commands are available, along with
a sketch plane on which to sketch. You can control the initial sketch setup
by using template files, or settings in the Application Options dialog box,
Sketch tab.
When you create a sketch, a sketch icon displays in the browser. When you
create a feature from a sketch, a feature icon displays in the browser with the
sketch icon nested under it. When you click a sketch icon in the browser, the
sketch is highlighted in the graphics window.
After you create a model from a sketch, re-enter the sketch environment to
change or start a new sketch for a new feature. In an existing part file, first
activate the sketch in the browser. This action activates the commands in the
Location
Search:
Plan and create sketches"
Sketch properties"
Parts 1 - Create Parts
Sketched Features | 23
