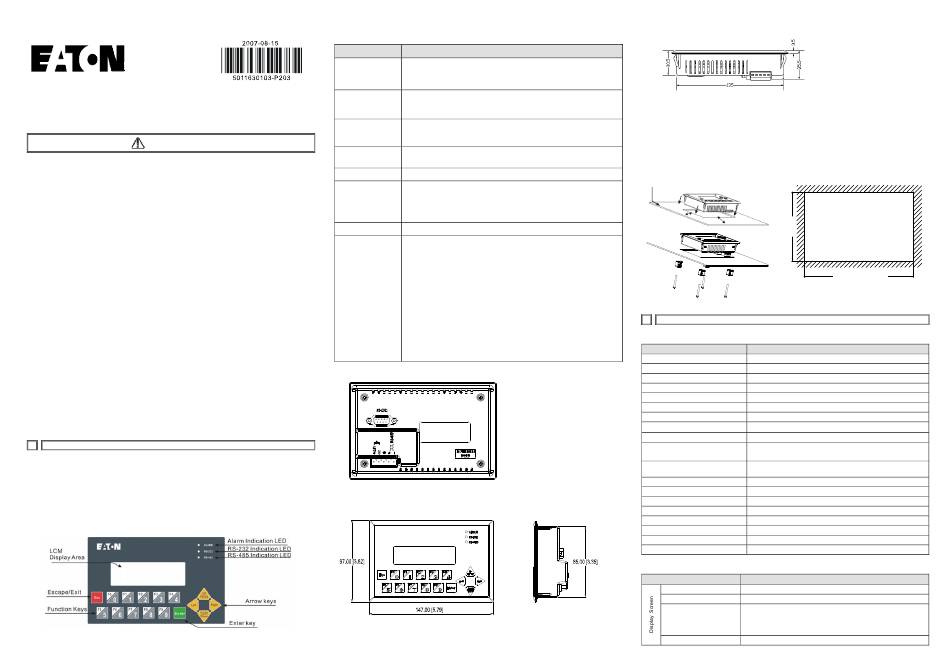

Eaton ELC-GP02 Instruction Sheet

Eaton ELC-GP02 Instruction Sheet

Graphic panel series
Hide thumbs Also See for ELC-GP02:

Advertisement

Quick Links

ELC-GP02
Instruction Sheet
GRAPHIC PANEL SERIES
WARNING
DANGER - DC input power must be disconnected before any maintenance. Do not connect or
disconnect wires and connectors while power is applied to the circuit. Maintenance must be
performed by qualified technicians.
DANGER - The ELC-GP02 requires 24VDC input power. The 24VDC input power should not be
connected to the RS-485 communication port. The unit may be destroyed or can't be repaired if
the input power is improperly applied. Please always check the correctly input power wiring
before apply power.
DANGER - An electrical charge will remain on the DC-link capacitors for 1 minute after power
has been removed. Do not conduct any wiring or investigation on the ELC-GP02 until 1 minute
after power has been removed. Do NOT touch terminals when power on.
CAUTION - Always ground the ELC-GP02 by using the grounding terminal. Not only this acts as
a safety, but also filter out electrical noise. The ground method must comply with the laws of the
country where the unit is to be installed.
CAUTION - ELC-GP02 may be damaged if the fixed support (shipped with the pack) is adjusted
too tight.
Please carefully read this instruction before using the ELC-GP02.
The ELC-GP02 display panel is waterproof. But please prevent grease, corrosive liquids and
sharp objects from contacting the ELC-GP02.
Do not disconnect while circuit is live unless area is known to be non-hazardous.
This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or Non-Hazardous
Locations only.
Explosion Hazard – Substitution of components may impair suitability for class I, Division 2.
Explosion Hazard – Do not disconnect equipment unless power has been switched off or the
area is known to be Non – Hazardous.
Power, input and output (I/O) wiring must all be in accordance with Class I, Division 2 wiring
methods, Article 501-4 (b) of the National Electrical Code, NEPA 70,or as specified in Section
18-152 of the Canadian Electrical Code for units installed within Canada, and in accordance
with that location's authority.
1
INTRODUCTION
1.1 Model Explanation
Thank you for choosing Eaton Logic Controler (ELC) GP series products. The features of ELC-GP02
are: resolution is 160*32, display 10*2 Chinese characters max. and Multilanguage support. Built-in
two communication ports (RS-232 and RS-485/RS-422, can be used simultaneously).
Communication and alarm indication LEDs. Extension slot for ELC-GPXFERMOD to copy settings
and programs rapidly and save download time. Built-in variety objects to meet your requirements.
1.2 Outline
1.3 Panel Function Explanation
PANEL COMPONENT
EXPLANATION
Status 1: When power is on, the LED will flash three times slowly.
Alarm Indication LED
Status 2: When there is an abnormal situation, the LED will flash quickly along with an
alarm sound.
RS-232 Indication LED
It will be flashing when transmitting program and communicating by using RS-232.
(Yellow)
RS-485 Indication LED
It will be flashing when communicating by using RS-485.
(Green)
LCM display Area
Liquid Crystal Module display area used to display current program state.
Esc Escape/Exit)
Used to cancel an incorrect input, or to Exit a programming step.
UP/Pg Up: Used to increase the value or move up one page.
Pg Dn/DOWN: Used to decrease the value or move down one page.
Arrow Keys
Left: Left direction key. (move curser to left)
Right: Right direction key. (move cursor to right)
Enter Key
Used to input a value or accept a programming command.
F0/0: It is used to be constant 0 and user can define the function of F0.
F1/1: It is used to be constant 1 and user can define the function of F1.
F2/2: It is used to be constant 2 and user can define the function of F2.
F3/3: It is used to be constant 3 and user can define the function of F3.
F4/4: It is used to be constant 4 and user can define the function of F4.
Function Keys
F5/5: It is used to be constant 5 and user can define the function of F5.
F6/6: It is used to be constant 6 and user can define the function of F6.
F7/7: It is used to be constant 7 and user can define the function of F7.
F8/8: It is used to be constant 8 and user can define the function of F8.
F9/9: It is used to be constant 9 and user can define the function of F9.
1.4 Back Panel
1.5 Dimension
Front panel (unit: mm [inch])
Vertical view (Unit: mm)
1.6 Installation
Mounting ELC-GP02 into the opening is done by carefully fitting the unit into the opening and
pressing firmly on all four corners. You could fix it by using the fixed support packaged with
ELC-GP02. You should infix the fixed support in the back cover and turn the screw in to fix.
Warning: If you turn the screw exceeds torque: 4-5(kg-cm), ELC-GP02 may be damaged.
(Note:the flat surface shoud be a Type 4 "Indoor Use Only" enclosure or equivalent.)
Please leave sufficient space (more than 50mm) around the unit for heat dissipation.
Thickness:
0.5~9.0mm
50mm
2
2.1 Electrical Specification
ITEM
Function Key / Digital Key
External Input Power
Memory Capacity
CPU
RAM of System
Communication Interface
Waterproof Class of Front Panel
5-PIN terminals:
Environment Condition
Wire gauge: 12-24 AWG
Torque: 4.5 lb.-inch
Storage Temperature of Hardware
Vibration
Impact
RF Radiation Test
Static Electricity Discharge Test
RF Radiation Test
Right side diagram (unit: mm [inch])
High Frequency Transient Test
Weight / Dimension
Cooling Method
Temperature Code
Hazardous Location rating
2.2 Function Specification
ITEM
Screen
Color
Back-light
Resolution
IL05003005E.pdf
Mounting dimension (unit: mm [inch])
50mm
85
[3.35]
135~136.5[5.31~5.37]
Thickness Range 0.5~9mm
ELECTRICAL SPECIFICATION
ELC-GP02
F0/0~F9/9, ESC, ENTER and ARROW keys
24VDC (-15%~20%) 3W MAX.
256K Byte
Hitachi MAX002
32K Byte
COM1: RS-232 and COM2: RS-485
IP65/NEMA4/UL Type 4 (indoor use)
0~50℃, relative humidity 20-90% RH(non-condensing)
-20~60 °C
5Hz≦f<9Hz = Continuous: 1.75mm / Occasional: 3.5mm
9Hz≦f≦150Hz = Continuous: 0.5g / Occasional: 1.0g
15g peak, 11ms duration, half-sine, three shocks in each direction per
axis, on 3 mutually perpendicular axes (total of 18 shocks)
CISPR11, Class A
EN61000-4-2
EN61000-4-3
EN61000-4-4
0.24kg / 147×97×35.5mm (Weight(W)×Height(H)×Deep(D))
Natural Air-Cooling
T6
Class I, Division 2, Group A, B, C, and D
ELC-GP02
STN-LCD
Monochromatic
The back-light automatic turn off time is 1~99 minutes
(0 = do not to turn off)
(back-light life is about 50 thousand hours at 25℃)
160X32 dots
