3-2. Special Notes on Repair Servicing

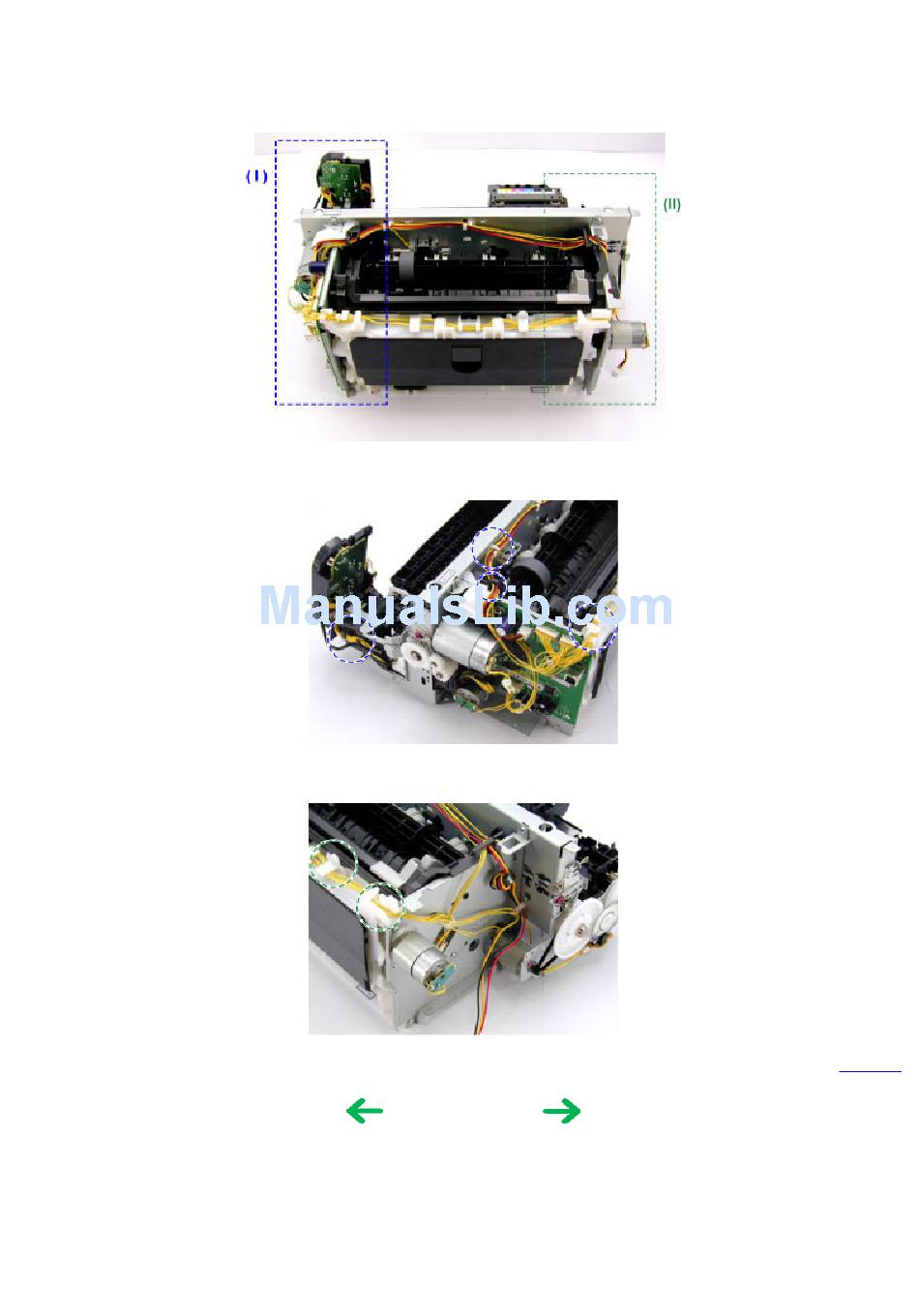

(1) Flexible cable and harness wiring, connection
Be careful of wiring of the flexible cables and harness. Improper wiring or connection may cause breakage of a line, leading to ignition or emission of smoke.
(I) Logic board ass'y and operation panel unit wiring
(II) Paper feed motor side wiring
