OWNERS MANUAL

MODEL GT
GEARHEAD TROLLEY
SERIES B
The Chamberlain Group, Inc.
A Unit of Duchossois Industreis, Inc.
845 Larch Avenue, Elmhurst, Illinois 60126
COMMERCIAL DOOR OPERATOR
LISTED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT and is the answer not in the manual?

Questions and answers

Related Manuals for Chamberlain GT

Summary of Contents for Chamberlain GT

  • Page 1: Owners Manual

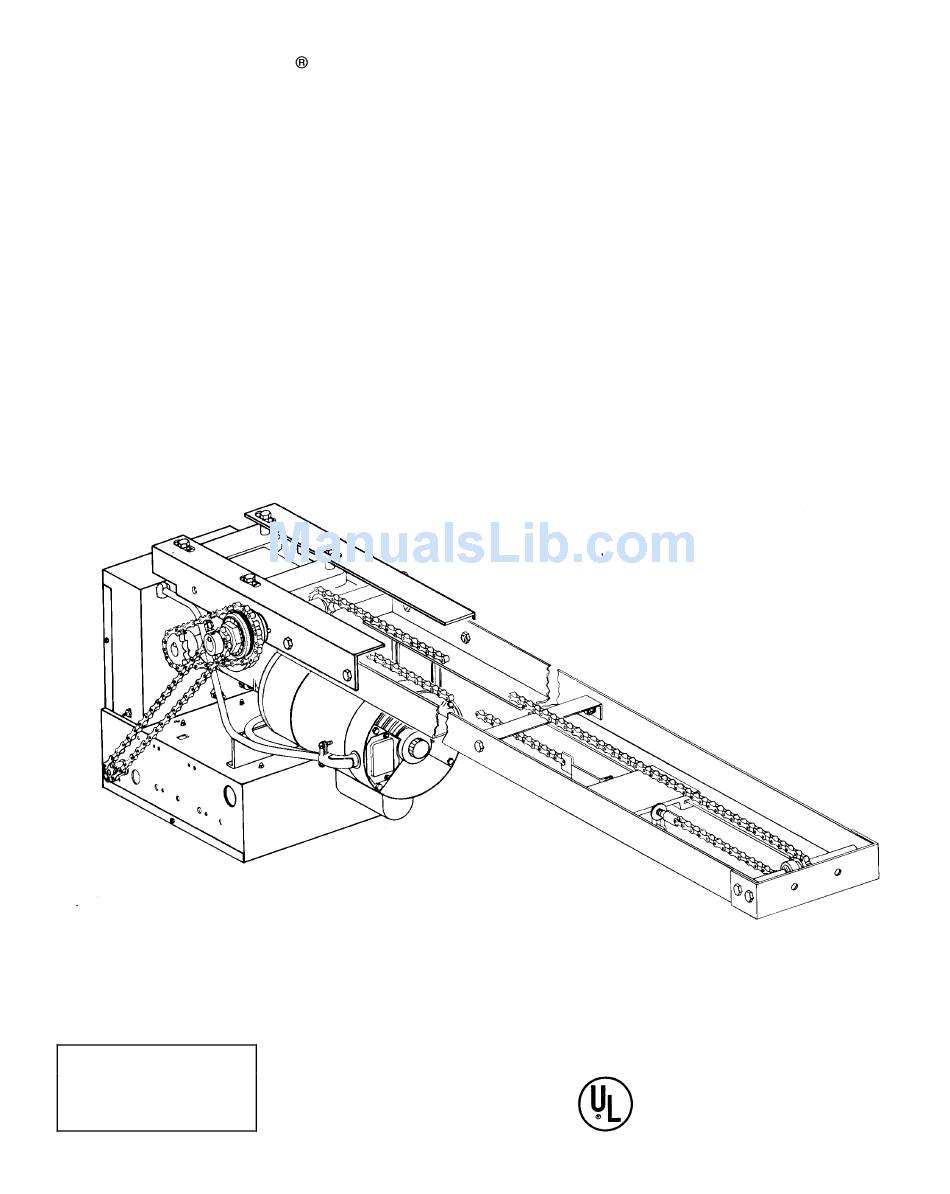

    Lift-Master The Chamberlain Group, Inc. A Unit of Duchossois Industreis, Inc. 845 Larch Avenue, Elmhurst, Illinois 60126 The Professional Line OWNERS MANUAL MODEL GT GEARHEAD TROLLEY SERIES B WIRING TYPE COMMERCIAL DOOR OPERATOR LISTED...

  • Page 2: Wiring Types

    JUMPER CHART JUMPERS, VOLTAGE/PHASE RELAYS WIRING TYPES SINGLE THREE SWITCHES & TIMERS JUMPERS B1 C1 D1 B2 C2 E2 S ST TS STS & RELAYS X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X...
  • Page 3 TYPE STATION NUMBER FUNCTION 3 Button 453365 Momentary contact to open, close and stop. 3 Button 453639 Momentary contact to open, close and stop plus wiring for sensing device to stop. 3 Button 453642 Momentary contract to open, close and stop plus wiring for sensing device to reverse and auxiliary devices to open and close with override.

  • Page 6: Motor Wiring Diagrams

    MOTOR WIRING DIAGRAMS 1 PHASE 114A1039 1987, The Chamberlain Group, Inc Rights Reserved Printed in Mexico...

  • Page 7: Control Connection Diagram

    CONTROL CONNECTION DIAGRAM...
  • Page 9 1 1 1 1 1 1 1 1 ITEM PT. NO. DESCRIPTION QUANTITY 454022 LH GT Frame Angle 1 1 1 1 1 1 1 1 230703 3/8-16x1” All Thread 454023 RH GT Frame Angle 1 1 1 1 1 1 1 1 Basic Elec.

  • Page 10: Electrical Box Assembly

    ELECTRICAL BOX ASSEMBLY...
  • Page 11 ITEM PT.NO. DESCRIPTION QUANTITY 453020 P.C. Board, Option - Commercial 453021 Contractor, S/D 453336 Switch, Limit - Open, Wired 453339 Switch Limit - Closed, Wired 453335 Assembly, Motor Cable 451278 Box, Electrical - P.C.B. 453115 Standoff 452077 Nut Lock 8-32 450587 Nut Limit - Plastic, 1/2x20 452078...
  • Page 12 ITEM PT.NO. DESCRIPTION QUANTITY 452048 Screw Rd. Hd. 8-32x3/8” 453207 Assembly, Transformer 110V 453208 Assembly, Transformer 220V 453209 Assembly, Transformer 440 453231 230V IR Relay 453232 115V IR Relay 453247 Spring, IR Relay 453037 Power Terminal Strip Guard 230615 Lock Washer #8 External Tooth LIMIT SWITCH ASSEMBLY ITEM PT.
