Summary of Contents for Dynacord Multifunctional Speaker Line VariLine

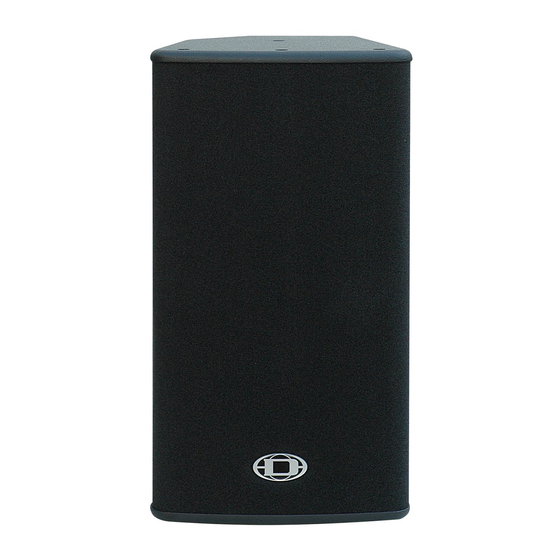

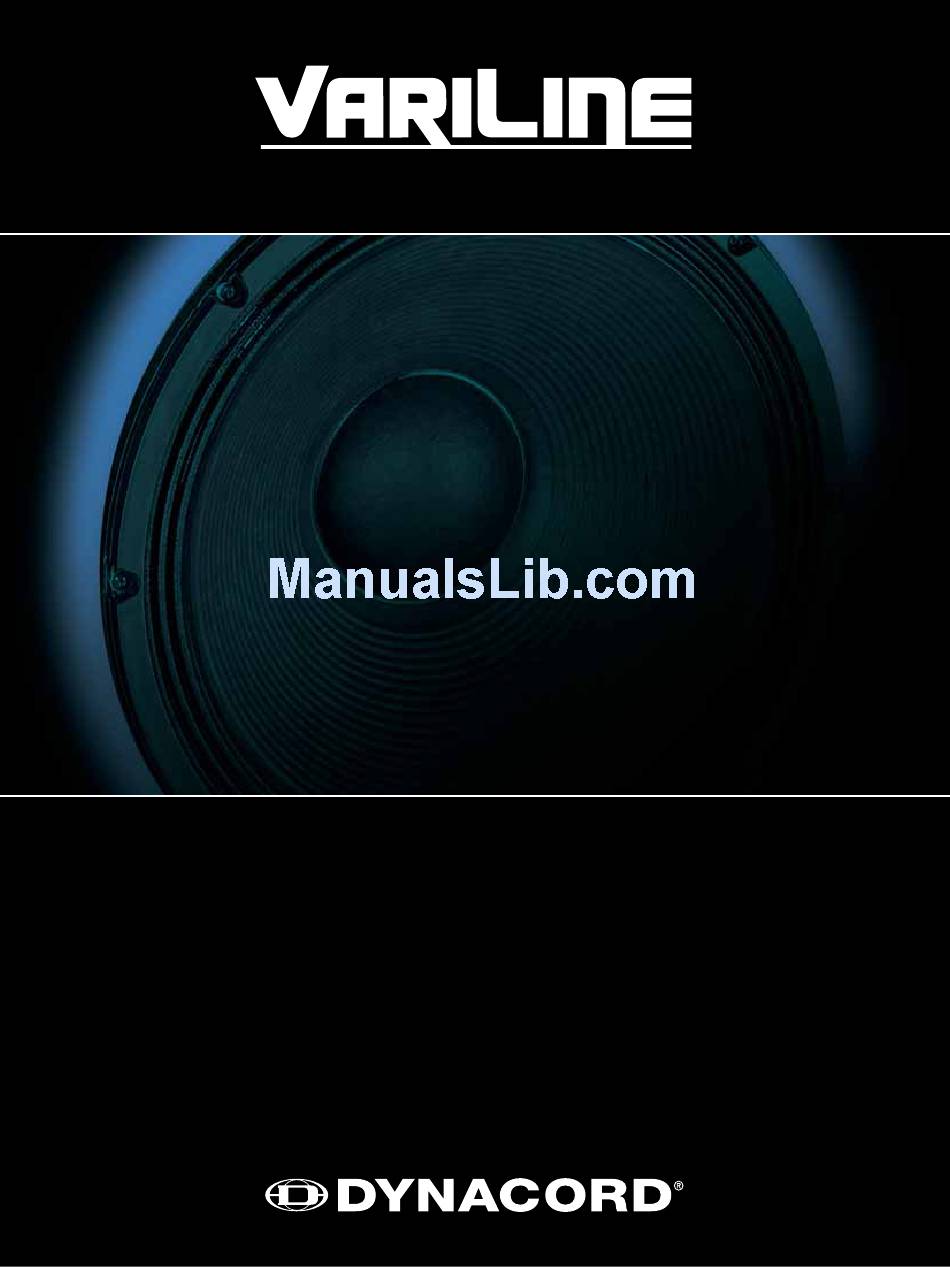

- Page 1 Multifunctional Speaker Line Englisch...
- Page 3 Philosophy Professional sound reinforcement requires maximum perfo- mance and high sound pressure levels for a wide variety of touring and installation applications. Universal loudspeaker functionality is therefore most important to meet the ever changing demands without effort. Both acoustically and mechanically, VariLine enclosures have been uncompromisingly designed and optimized for multi- functional application.
-
Page 4: Cabinet Design
VariLine enclosures. Crossover VariLine crossovers use selected high-quality components only for signal processing and the innovative DYNACORD protection circuits: the all-electronic VOICE COIL TRACKING PROTECTION and halo- gen protectors prevent thermal overload. For maximum dynamics, VariLine loudspeakers can be driven by extremely powerful amplifiers without voice coil damage - even when operating errors occur. -
Page 5: Installation Hardware
(see pp. 15). Drive With DYNACORD PowerH amplifiers and IRIS-Net, VariLine systems can be networked providing comprehensive remote control and per- manent supervision. Fully configured presets are available for a varie-... - Page 6 Highest quality speech and music Applications Theatre front fill Multimedia Satellite and delay systems VL 62 VL 262...
- Page 7 VL 62 and VL 262 The models VL 62 and VL262 are very compact 2-way full- range high power cabinets for a wide variety of mobile and installation applications. High sensitivity (94dB/97dB @ 1W/1m) and power handling makes them stand out in their class. Extremely low distortion DND 6130-16 neodymium drivers handle lows and mids while a 90°...
- Page 8 VL 122, VL 152 and VL 212 The 12“ and 15“ VariLine models are high power 2-way cabinets exclusively equipped with high-quality neodymium compo- nents. These lightweight champs feature impressively high power handling for superior sound pressure levels. Large format HF horns coupled to Electro-Voice ND6 drivers provide balanced directivity well below the crossover frequency and clear, detailed HF reproduction.
- Page 9 Highest quality speech and music VL 122 Applications High power monitoring Front and side fill Club systems with subwoofers Delay systems VL 152 VL 212...
- Page 10 A is connected to the Speakon pins 1+/1- and B to pins 2+/2-. When driven by DYNACORD CL, LX or Power-H series ampli- fiers a single 4-conductor loudspeaker cable is required to feed both woofers from amplifier channel A (channel B out- put is also present at channel A pins 2+/2- ).
- Page 11 SUB 18 SUB 28...
- Page 12 VL 212 with SUB 28 VL 122 with SUB 18...
- Page 13 Active high power 2 or 3-way combination with maximum lo- mid sound pressure levels for medium FOH applications. Individual all-electronic Voice-Coil-Tracking Protections pre- vent thermal overload of the transducers permitting the use of the high-performance DYNACORD Power-H series H 2500 and H 5000 amplifiers for maximum dynamics.
- Page 14 VL 62 with WMK-10 VL 262 with FB-VL 262, FB-TV and TC-TV VL 122 with PCL 1500 and SUB 18 VL 152 with MB 152 UMH...
- Page 15 Accessories Cabinet Dust- Eyebolt- Wall- Order # Cover Kit 3pcs Mount VL 62 SH-VL 62 EBK M10 WMK-10 D113127 D113145 D113155 D113137 VL 262 SH-VL 262 EBK M10 WMK-10 D113101 D113117 D113155 D113137 VL 122 SH-VL 122 EBK M10 D113103 D113118 D113155 VL 152...
- Page 16 VL62 VL262 Type / Name Order-# D113127 D113101 Cabinet Full-Range Full-Range Configuration passive 2-Way passive 2-Way Nominal Impedance 16 ohms Rated Power RMS 150 watts 300 watts Program Power 300 watts 600 watts Peak Power 600 watts 1200 watts SPL 2,83 V/1m 94 dB* max.
