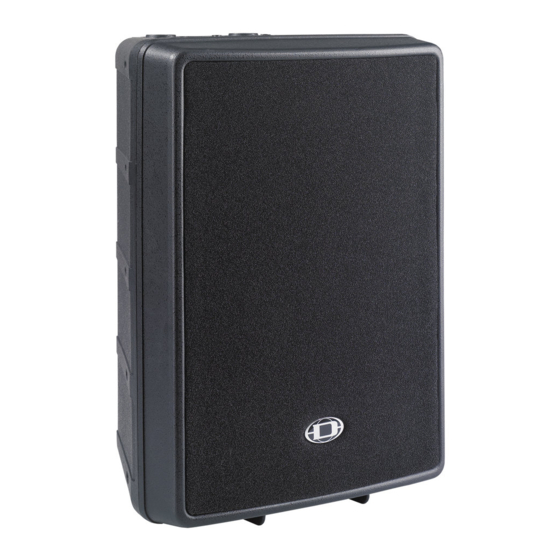

12", 350 watt 3-way compact speaker system
Hide thumbs Also See for D12-3:

Advertisement

Features:
.
High-Power Light-Weight Fullrange
Cabinet, 19kg only
.
Polypropylene Enclosure
.
90° x 50° Constant-Q HF Horn
.
Neodymium DND 6120 Midrange
.
Voice Coil Tracking Protection
Wir weisen ausdrücklich darauf hin, dass bei
gehängten Lautsprecherboxen die einschlägigen
Sicherheitsbestimmungen zu beachten sind. Es
muss unbedingt qualifizierte Fachberatung in
Anspruch genommen werden!
We expressly point out that the relevant safety
regulations must be observed for "flying"
loudspeaker systems. It is imperative that quali-
fied expert advice is sought.
Technische Informationen
Architects and engineers

specifications

D12-3
12", 350 Watt
3-Way Compact
Speaker System
Specifications
TYPE / NAME
Order No.
Cabinet
Configuration
Nominal impedance
Rated power RMS
Program power
Peak power
SPL 2,83 V / 1m
1W / 8 Ohm
Max. SPL 1m
(calculated with peak power)
Frequency range ( -10dB )
Full range
Coverage angle
1 kHz -6dB
Coverage angle
10kHz -6dB
Passive crossover frequency
Voice coil tracking protection
Component HIGH
Order No.
Component
MID
DYNACORD DND 6120 Neodymium
Order No.
Component LOW
Order No.
Connectors
Full-Range
Wired through
Connector model
Dimensions (WxHxD)
Net weight
Shipping weight
Enclosure material
Finish
Grille
Powder coated steel, Acoustic foam
Handles
Warranty
Optional Accessories
SH-D12 Dust-Cover for D12-3
F212 Monitor feet for D12-3
MB 112 Eybolt-Set M8 for D12-3
MB 212 U-Mounting Bracket
MB 312 Horizontal Cluster Plate
MB 200UMH U-Bracket
TMA Tilt angle for MB200 UMH
RMA Rotatable Mounting Kit
TC-02 Truss clamp
D 12-3
D113083
Full-Range
Passive 3-Way
8 Ohms
350 Watts
700 Watts
1400 Watts
100 dB
131 dB
70 Hz - 20kHz
120° Conical
90° * 50°
700Hz, 4kHz
Yes
Electro-Voice DH-3
D353 078
D366 302
Electro-Voice DL12BFH
D358 288
1+, 1-
2+, 2-
Speakon 2x NL4 MPR
429.5mm x 586mm x 320.5mm
16.902" x 23.071" x 12.615"
19 kg (41.88 Ibs)
20 kg (44.09 Ibs)
Heavy Duty Polypropylene
Black
1
36 Months
D113046
D113040
D113041
D113042
D113043
D170183
D112815
D112807
D112808

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D12-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynacord D12-3

  • Page 1: Specifications

    Passive crossover frequency 700Hz, 4kHz Voice coil tracking protection Component HIGH Electro-Voice DH-3 Order No. D353 078 Component DYNACORD DND 6120 Neodymium Order No. D366 302 Component LOW Electro-Voice DL12BFH Wir weisen ausdrücklich darauf hin, dass bei Order No. D358 288 gehängten Lautsprecherboxen die einschlägigen...
  • Page 2 BESCHREIBUNG DESCRIPTION Die DYNACORD D12-3 ist ein extrem leichtes, mechanisch The DYNACORD D12-3 is a light-weight , extremely robust high- robustes 12“ 3-Weg Kunststoffkabinett für professionelle portable performance professional 12“ 3-way plastic cabinet for use in Beschallungsanwendungen. Umfangreiches Montagezubehör und professional portable sound reinforcement applications.
  • Page 3 D12-3 Frequency Response, Impedance, Beamwidth, Directivity D12-3 Circuit diagram...
  • Page 5: Optional Accessories

    Optional Accessories Order No. see Specifications page 1 MB-200 UMH MB-200 UMH + RMA +TMA MB112 FORCE FORCE 5/16 SHOULDER EYEBOL T 1.00 in. (25 mm) MAXIMUM LENGTH INCORRECT LOCK WASHER CORRECT MB-200 UMH + TC-02 MB312 F212...
  • Page 6 Bosch Communications Systems Americas–Headquarter Americas Europe, Africa & Middle-East Asia & Pacific Rim–Headquarter Asia Singapore: Telex Communications (SEA) Pte Ltd Telex Communications, Inc. Headquarter EAME 12000 Portland Ave South, 38C Jalan Pemimpin EVI Audio GmbH Burnsville, MN 55337, USA Hirschberger Ring 45, D-94315, Singapore 577180 USA–Ph: 1-800-392-3497 Straubing, Germany...
