Dynacord SUB 28 Architects And Engineers Specifications

Features:
.
Power Handling
Rated 1400W / Peak 5600W
.
2 x18" LFS 18700 High Performance
Woofer
.
Parallel / Separate Selector Switch
.
Voice Coil Tracking Protection
.
Designed for use in Active Multi-Way
Systems
.
FIR and IIR Controller Presets available
.
Switchable 2 x 8 Ω or 1 x 4 Ω
Wir weisen ausdrücklich darauf hin, dass bei
gehängten Lautsprecherboxen die einschlägigen
Sicherheitsbestimmungen zu beachten sind. Es
muss unbedingt qualifizierte Fachberatung in
Anspruch genommen werden!
We expressly point out that the relevant safety
regulations must be observed for "flying"
loudspeaker systems. It is imperative that quali-
fied expert advice is sought.
Technische Informationen
Architects and engineers
specifications

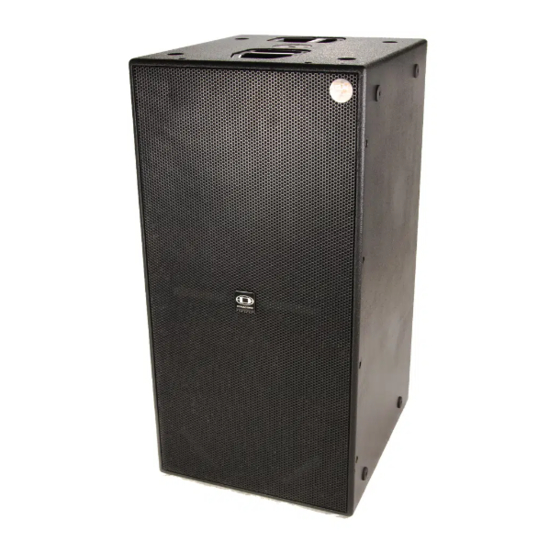

SUB 28
2 x18", 1400 Watt
SUBWOOFER
Specifications
TYPE / NAME
Order No.
Cabinet
Nominal impedance
Rated power RMS
Program power
Peak power
SPL 2,83 V / 1m 2 W / 4 Ohm
Max. SPL 1m
(calculated with peak power)
Frequency range ( -10dB )
Active crossover frequency
Voice coil tracking protection
Component SUB
Order No.
Connectors SUB
Switchable
Connector model
Dimensions (WxHxD) mm
Shipping weight
Net weight
Enclosure material
Finish
Grille
Handles
Warranty
Optional Accessories
Wheel kit
Sub 28
D113130
Subwoofer
Vented direct radiator
4 Ohms (2 x 8Ohms)
1400 Watts (2 x 700 Watts)
2800 Watts (2 x 1400 Watts)
5600 Watts (2 x 2800 Watts)
104 dB
138 dB
35 Hz - 700Hz
100 Hz
Yes
2 x DYNACORD LFS 18700
D366304
1+, 1- (4Ohms)
1+, 1-, 2+, 2- (2 x 8Ohms)
Speakon NL4MPR
605 x 1205 x 675
90 kg
82kg
Birch Plywood
2-Component Paint
Powder coated steel
4
36 Months
WK 600 (D113149)
