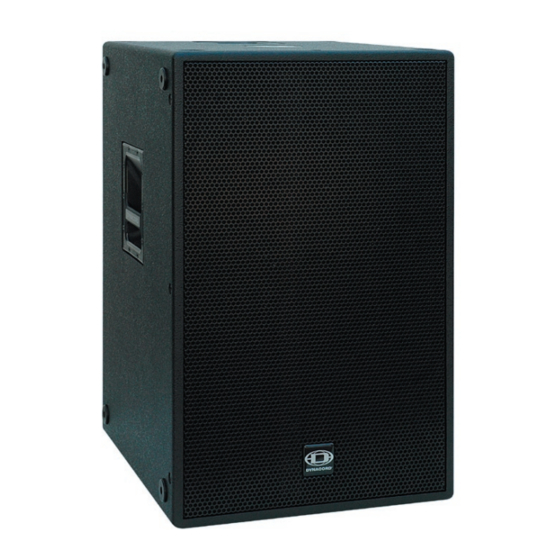

Dynacord SUB 18 Architects And Engineers Specifications

Features:
.
Power Handling
Rated 700W / Peak 2800W
.
18" LFS 18700 High Performance Woofer
.
Voice Coil Tracking Protection
.
Designed for use in Active Multi-Way
Systems
.
FIR and IIR Controller Presets available
.
Excellent Transient Response
Wir weisen ausdrücklich darauf hin, dass bei
gehängten Lautsprecherboxen die einschlägigen
Sicherheitsbestimmungen zu beachten sind. Es
muss unbedingt qualifizierte Fachberatung in
Anspruch genommen werden!
We expressly point out that the relevant safety
regulations must be observed for "flying"
loudspeaker systems. It is imperative that quali-
fied expert advice is sought.
Technische Informationen
Architects and engineers
specifications
SUB 18
18", 700 Watt
SUBWOOFER
Specifications
TYPE / NAME
Order No.
Cabinet
Nominal impedance
Rated power RMS
Program power
Peak power
SPL 2,83 V / 1m 1 W / 8 Ohm
Max. SPL 1m
(calculated with peak power)
Frequency range ( -10dB )
Active crossover frequency
Voice coil tracking protection
Component SUB
Order No.
Connectors SUB
Wired through
Connector model
Dimensions (WxHxD) mm
Net weight
Shipping weight
Enclosure material
Finish
Grille
Handles
Warranty
Optional Accessories
Wheel kit
Sub 18
D113129
Subwoofer
Vented direct radiator
8 Ohms
700 Watts
1400 Watts
2800 Watts
98 dB
132 dB
35 Hz - 700Hz
100 Hz
Yes
DYNACORD LFS 18700
D366304
1+, 1-
2+, 2-
Speakon NL4MPR
505 x 805 x 570
(19.88" x 31.69" x 22.44")
49kg (108.02 Ibs)
55kg (121.25 Ibs)
Birch Plywood
2-Component Paint
Powder coated steel
4
36 Months
WK-500 (D113150)
