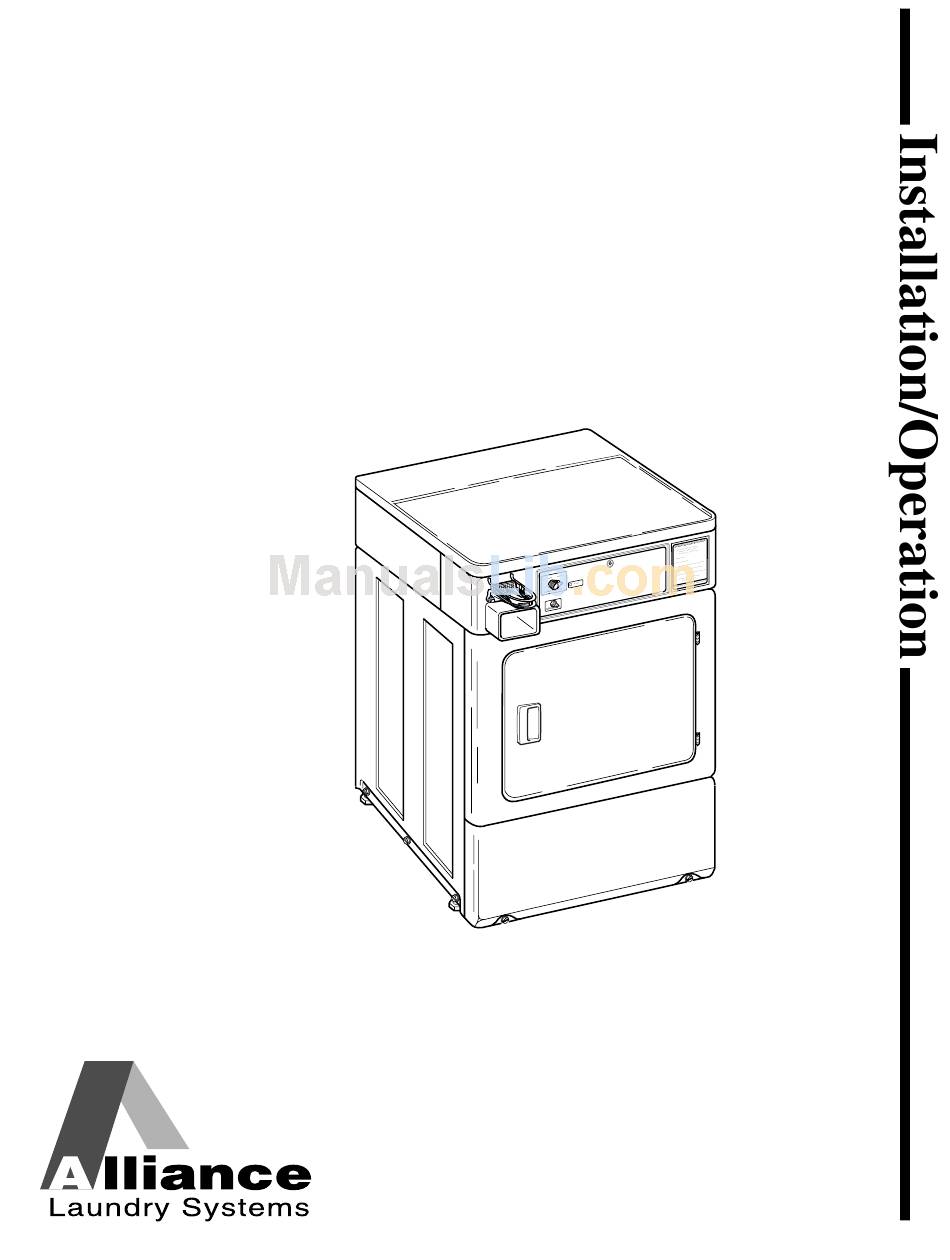

- Page 1 Clothes Dryer Electric and Gas Models D709I Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 510977R6 www.comlaundry.com March 2008...
-
Page 3: For Your Safety
A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. ● This appliance must not be installed in a bedroom or bathroom. ● 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING FOR YOUR SAFETY W033 W052... -
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information... - Page 5 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Instructions for NetMaster Dryers ... 35 Step 1: Clean Lint Filter... 35 Step 2: Load Laundry... 35 Step 3: Close Loading Door... 35 Step 4: Set Fabric Selector ... 36 Step 5: Insert Coin(s) or Card ...
-
Page 6: Safety Information
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Important Safety Instructions Save These Instructions WARNING... - Page 7 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 22. Install this dryer according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding and gas supply must comply with local codes and be made by licensed personnel when required.
-
Page 8: Dimensions
NOTE: Side, rear and bottom exhaust openings are 4 inch (10.2 cm) ducting. Gas models cannot be vented out left side of cabinet because of burner housing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation 15.4 in. (39.1 cm) 0.4 in. -
Page 9: Additional Security
3. Carefully lift timing cam off post. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: Adjust ratchet wheel and timing cam to “OFF” position prior to putting dryer into use. Refer to Figure 1 for proper position. -
Page 10: Coin Slide Guards
Refer to Figure 2. Coin Slide Guard NOTE: Coin slides and coin drawers are shown for illustration only. You must obtain them locally. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT PERM PRESS DELICATE FLUFF NORMAL... -
Page 11: Before You Start
18 inches (46 cm) above the floor. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT No other fuel burning appliance should be installed in the same closet with the dryer. -
Page 12: Front View
* NOTE: For new installations, locate top of wall vent 42 inches (107 cm) above floor to make venting easier to connect. Outer wall of enclosure © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Description Figure 5 *42"... -
Page 13: Step 2: Connect Dryer Exhaust System
510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT DO NOT use plastic or thin foil ducting. Rigid ● metal duct is recommended. -
Page 14: Exhaust Direction
Blockage will decrease airflow through the dryer, thus reducing the efficiency of the dryer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Exhaust Direction The dryer can be exhausted to the outdoors through the back, left, right or bottom of the dryer. -
Page 15: Exhaust System
Maximum length of 4 in. (10.2 cm) diameter flexible metal duct. NOTE: Deduct 6 feet (1.8 m) for each additional elbow. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: Weather hood should be installed at least 12 inches (30.5 cm) above the ground. Larger clearances may be necessary for installations where heavy snowfall can occur. -
Page 16: Multi-Dryer Installation Exhaust Requirements
ROOF/GROUND 58786 Backdraft Damper (Available through your local authorized parts source) Clean Out Cover must be provided. Inspect monthly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT ing) t sett e (hea M PRE , PER... - Page 17 Figure 9 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT EXHAUST AIR FLOW MAXIMUM LENGTH OF DUCT 30 feet (9.1 m)
-
Page 18: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1. Make certain your dryer is equipped for use with the type of gas in your laundry room. Dryer is equipped at the factory for Natural Gas with a 3/8 inch NPT gas connection. -
Page 19: Step 4: (Electric Dryer Only) Connect Electrical Plug
For proper operation at altitudes above 3500 feet (1070 m) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT L.P. Altitude Adjustments Altitude feet 3500... - Page 20 Do not connect dryer to 110, 115, or 120 Volt circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Heating elements are available for field ●...
-
Page 21: Three-Wire Connection
Typical Receptacle Power Cord Strain Relief Nut Strain Relief Figure 11 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT THREE-WIRE CONNECTION D275I D006I FOUR-WIRE CONNECTION NOTE: Dryer is shown with access cover removed for illustration purposes only. NEVER operate the dryer with access cover removed. - Page 22 30 Ampere Fuses or Circuit Breaker Neutral Wire 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer. Figure 14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT POWER SUPPLY INTERMEDIATE FUSE BOX (may be omitted if...
- Page 23 NOTE: Four-wire cord is required for mobile homes or where codes do not permit grounding through neutral. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT D286I 1. Disconnect power to dryer. 2. Remove access cover from rear of dryer.
- Page 24 4. Use a strain relief and insert end of power cord through power supply hole. Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Attach power cord ground (green) wire to rear bulkhead using ground screw removed in Step 3.
-
Page 25: Step 5: Reverse Door, If Desired
Figure 24 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. Rotate door panel 180 degrees as shown. 5. Remove door strike from door liner and reinstall on opposite side. -
Page 26: Step 6: Wipe Out Inside Of Dryer
Figure 31 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 7: Plug In the Dryer Electric Dryer Connect the dryer to an electrical power source. -
Page 27: Step 8: Recheck Steps
Do not operate other appliances on the same circuit when this appliance is operating. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the dryer to the electrical power source. -
Page 28: Gas Dryers
Shut-Off Valve Handle Air Shutter Lockscrew Air Shutter © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT After the dryer has operated for approximately five minutes, observe burner flame through lower front panel. Adjust the air shutter to obtain a soft, uniform blue flame. -
Page 29: Operation
R EA R AF T FIL N LIN Figure 35 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. W727 Step 3: Close Loading Door Close loading door. -
Page 30: Step 4: Set Fabric Selector
NORMAL FABRIC SELECTOR Figure 38 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 5: Start Dryer Place coin(s) in slide and carefully push in as far as possible and then pull slide out as far as possible. After IN USE light comes on (indicating start of cycle), press the PUSH-TO-START button. -
Page 31: Operation Instructions For Electronic Display Control Dryers
Co ht Go ne l T FIL Figure 40 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. HIGH START... -
Page 32: Step 4: Set Fabric Selector
Insert coin(s) in coin slot. Check pricing as seen on digital display. Figure 44 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT To Insert Card Insert card into opening. Follow directions on display. DO NOT REMOVE THE CARD UNTIL DISPLAY READS “Remove Card”. -
Page 33: Indicator Lights
COOL DOWN cycle begins. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT DOOR OPEN DOOR OPEN is lit and flashes at one-second intervals whenever the dryer door is open. -
Page 34: Operation Instructions For Mdc Dryers
Co ht Go ne l T FIL Figure 47 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. W727 Step 3: Close Loading Door Close loading door. -
Page 35: Step 4: Set Fabric Selector
To Insert Money Insert coin(s) in coin slot. Check pricing as seen on digital display. Figure 51 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT To Insert Card Insert card into opening. DRY1926N DRY1926N If Additional Time Feature is turned on, additional dryer time may be purchased at cycle start or while dryer is running. -
Page 36: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
COOL DOWN is lit whenever the COOL DOWN portion of a heated cycle is active. It is also lit when no heat is programmed for a cycle in operation. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 37: Operation Instructions For Netmaster Dryers
Go ne l T FIL Figure 54 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Load Laundry Load clothes loosely into dryer drum. Add fabric softener sheet if desired. W727 Step 3: Close Loading Door Close loading door. -
Page 38: Step 4: Set Fabric Selector
Insert coin(s) in coin slot. Check pricing as seen on digital display. Figure 58 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT To Insert Card Insert card into opening. DO NOT REMOVE THE CARD UNTIL THE REMOVE CARD LED IS LIT. -
Page 39: Indicator Lights
COOL DOWN cycle begins. 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT COOL DOWN COOL DOWN is lit whenever the COOL DOWN portion of a heated cycle is active. It is also lit when the NO HEAT cycle is in operation. -
Page 40: Maintenance
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Maintenance Exhaust System To reduce the risk of electric shock, disconnect the electrical service to the dryer before cleaning. -
Page 41: Motor Overload Protector
510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT For Energy Conservation Make sure the lint filter is always clean. ●... -
Page 42: Troubleshooting
Dryer is noisy Clothes are too wrinkled Clothes have odor © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Troubleshooting Possible Cause/Solution • Nonmetered models - Turn timer knob further into cycle. • Metered models - Insert coin(s) or card. -
Page 43: Contact Information
Nameplate Figure 62 510977 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT WARNING To reduce the risk of serious injury or death, DO NOT repair or replace any part... -
Page 46: Fast Track For Installing The Dryer
(Refer to the manual for more detailed information) • Position and Level the Dryer. LEVEL D255I D255I CHECK • Connect Dryer Exhaust System. CHECK GAS ONLY • Connect Gas Supply Pipe Hoses. • Check for Gas Leaks. CHECK ELECTRIC ONLY •...
