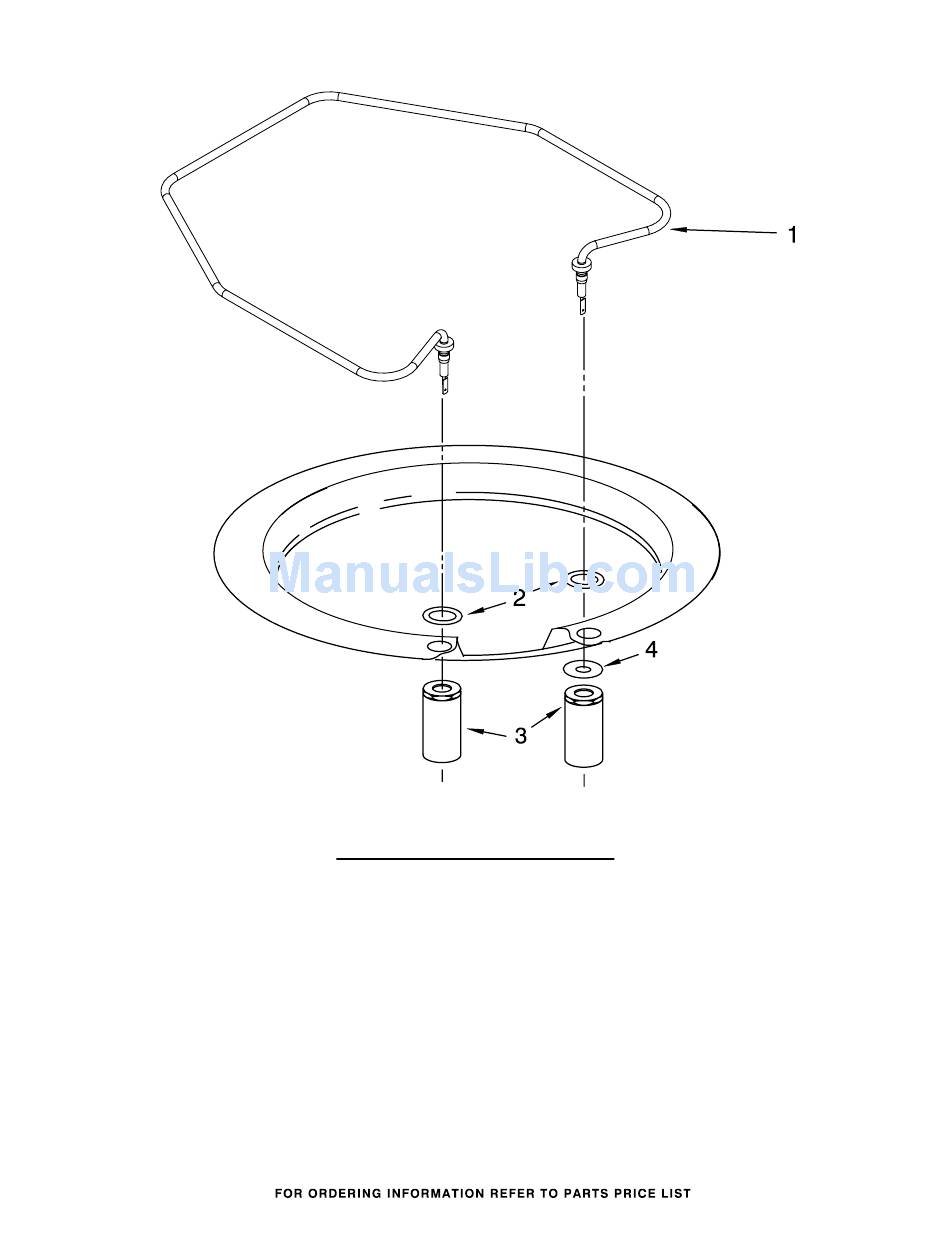

HEATER PARTS
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black)
Illus.
Part
No.
No.
1
8537057 Heater Element
2
717273 Washer, Heater
3
8268548 Nut, Heater
4
3400931 Retainer, Spring
NOTE: If heater element is
removed, it must be replaced.
(White)
(Stainless)
DESCRIPTION
Assembly
(Also Includes
Item 2)
Element
Element
Grip
10
W10304967
