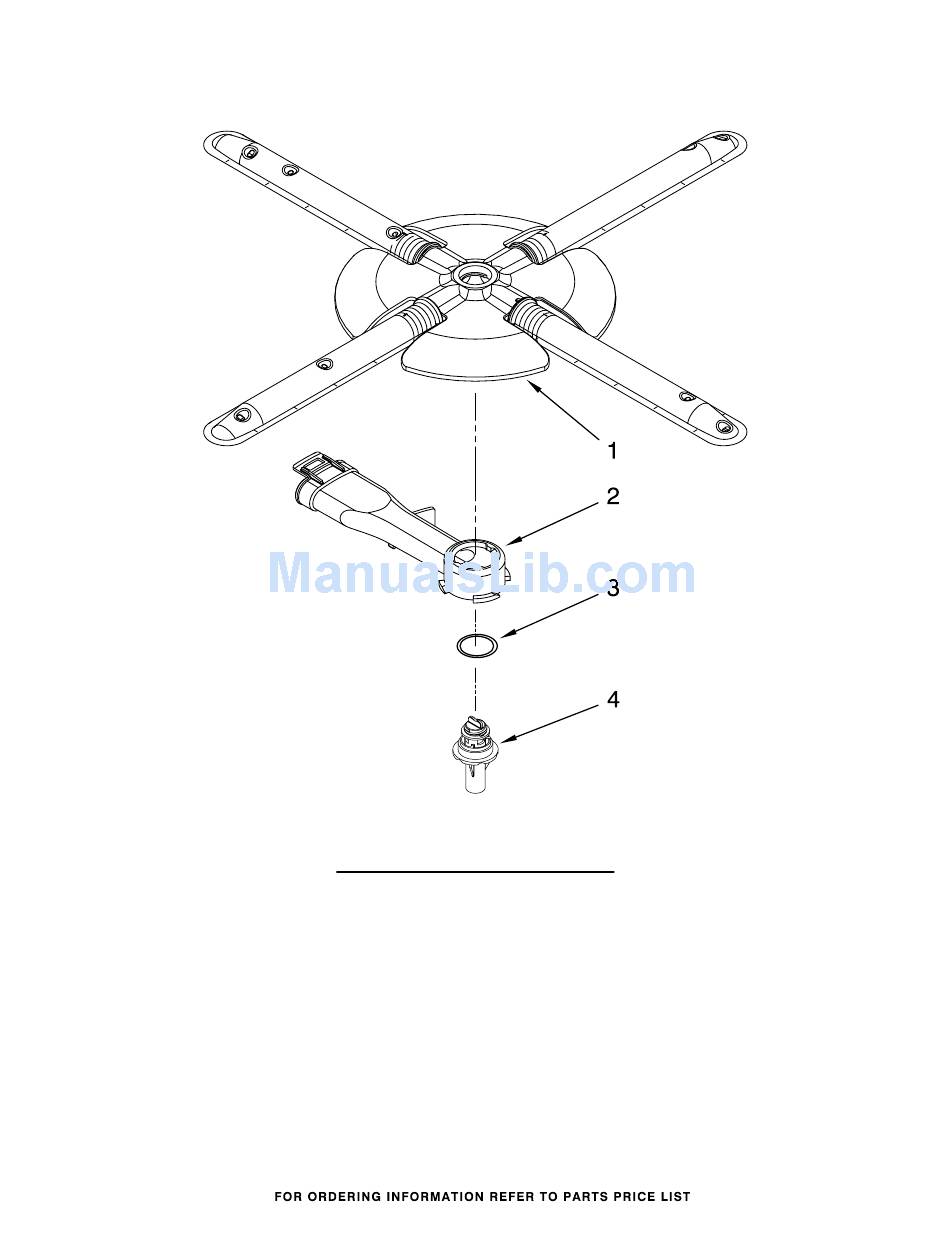

LOWER WASHARM AND STRAINER PARTS
W10304967
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black)
Illus.
Part
No.
No.
1 W10077965 Wash Arm Assembly
2 W10077899 Cap, Internal
3
8268340 Seal, Sprayarm
4 W10077898 Hub, Lower
(White)
(Stainless)
DESCRIPTION
Rear Feed
(Also Order
Item 3)
Sprayarm
(Also Order
Item 3)
13
