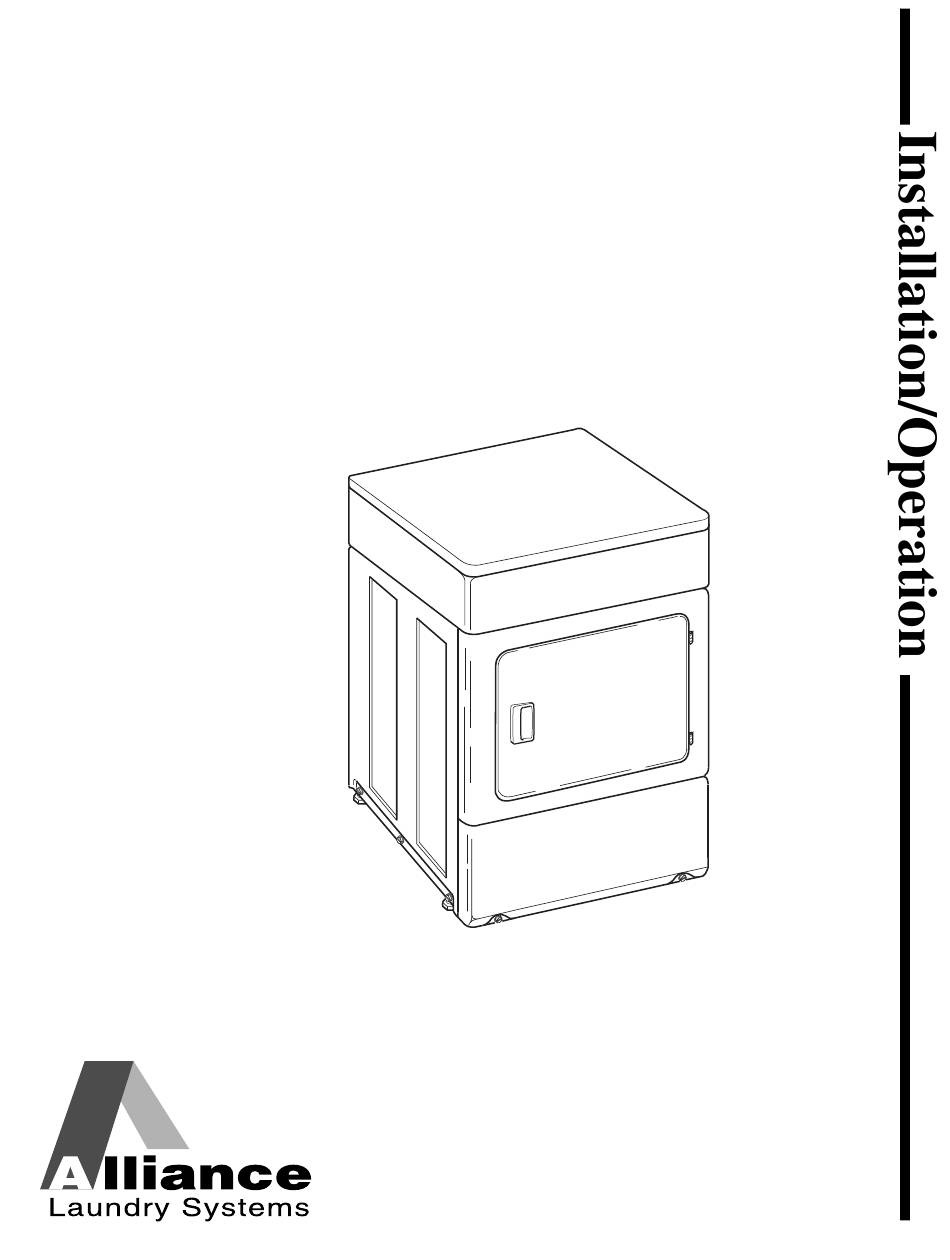

Clothes Dryer
Electric and Gas Models
DRY684C
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. D514202ENR5
www.alliancelaundry.com
September 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRY684C and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems DRY684C

Summary of Contents for Alliance Laundry Systems DRY684C

  • Page 1 Clothes Dryer Electric and Gas Models DRY684C Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. D514202ENR5 www.alliancelaundry.com September 2013...
  • Page 3 The gas utility instructions plus the SAFETY and WARNING note directly above must be posted in a prominent location near the dryer for customer use. 514202ENR5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 4 W729R1 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. W053 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR5...

  • Page 5: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 514202ENR5 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 6: Safety Information

    7. Do not tumble fiberglass curtains and draperies unless the label says it can be done. If they are dried, wipe out the cylinder with a damp cloth to remove particles of fiberglass. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 7 START mechanism. Remove the dryer from use and call the service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 8: Introduction

    Introduction Model Identification HDEBXFGS131DW01 HDGBXFGS541DW01 SDGBXFGS121DW01 HDEBXFGS541DW01 SDEBXFGS131DW01 SDGBXFGS541DW01 HDGBXFGS121DW01 SDEBXFGS541DW01 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 9: Installation

    (2,8 in.) DRY2440N GAS MODELS DRY2440N *With leveling legs turned into base. NOTE: Exhaust openings are 10,2 cm (4 inch) metal ducting. 3/8 in. NPT Gas Connection © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 10: Metered Models

    (26,875 in.) DRY2442N GAS MODELS DRY2442N *With leveling legs turned into base. NOTE: Exhaust openings are 10,2 cm (4 inch) metal ducting 3/8 in. NPT Gas Connection © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 11: Card Reader Models

    1. Open service door. Refer to Figure 1. 2. Locate diagnostic harness on electronic control. 3. Plug connectors for “white/black” wire and “red/blue” wire together. DRY2236N Service Door Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 12: Before You Start

    DRY911N Wrench 1/4 in. Driver Screwdrivers Level Teflon Tape Duct Tape Figure 2 NOTE: A 20,3 cm (8 in.) coin drawer is required for coin operated models. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 13: Installing The Dryer

    Outer Wall of Enclosure **NOTE: For new installations, locate top of wall vent 107 cm (42 in.) above floor to make venting easier to connect. Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 14: Step 2: Connect Dryer Exhaust System

    MUST be fabricated of a Level material that will not support combustion. Leveling Leg Rigid or flexible metal pipe is recommended Rubber Foot for a clothes dryer. W048 Figure 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 15  Ductwork that runs through unheated areas must be insulated to help reduce condensation and lint build-up on pipe walls. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 16 NOTE: Deduct 1,8 m (6 feet) for each additional elbow. Table 1 NOTE: The maximum length of a 10,2 cm (4 in.) diameter flexible metal duct must not exceed 2,4 m (7,87 ft.). © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 17 58786 Backdraft Damper (Available through Weather Hood or Sweep Elbow your local authorized parts source) (No cap or screen) Clean Out Cover (Must be provided). Inspect monthly. Figure 6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 18 5 cm (2 in.) Minimum NOTE: Where the exhaust duct pierces a combustible wall or ceiling, an opening must be sized as shown or per local codes. Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 19: Step 3: (Gas Dryer Only) Connect Gas Supply Pipe

    • Do not use an open flame to check for gas leaks. Use a non-corrosive leak detection fluid. • Any disassembly requiring the use of tools must be performed by a suitably qualified service person. W316 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 20 For proper operation at altitudes above 915 m (3000 feet) the L.P. gas valve spud orifice size must be reduced to ensure complete combustion. Refer to Table 3. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 21: Step 4: Reverse Door, If Desired

    3. Pull bottom of door liner out, then pull down, removing door liner from door panel. DRY1918N DRY1918N Figure 15 DRY1916N 7. Reinstall nine screws removed in Step 2. DRY1916N Figure 12 DRY1919N DRY1919N Figure 16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 22: Step 5: Wipe Out Inside Of Dryer

    DRY2373N DRY2373N Figure 17 9. Reinstall four hinge attaching screws, removed in Step 1. DRY1954N DRY1954N Figure 19 D606I D606I Figure 18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 23: Step 6: Connect The Dryer To Electrical Power

    Less than 4.5 m (15 ft.) Listed No. 6 mm Copper wire only ² Longer than 4.5 m (15 ft.) Listed No. 10 mm Copper wire only Table 4 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 24 Standard IEC 60335-1, clauses 24.3 and 22.2. Gap is defined as the minimum contact separation of each pole in the switch between the “ON” and “OFF” positions. Figure 20 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 25 The three-prong grounding plug on the power cord should be plugged directly into a polarized three-slot effectively grounded receptacle rated 127 or 220 Volts AC (alternating current) 15 Amps. Refer to Figure 21. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 26 Check with a qualified electrician or service person if you are in doubt as to whether the dryer is properly grounded. W038 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 27 Standard IEC 60335-1, clauses 24.3 and 22.2. Gap is defined as the minimum contact separation of each pole in the switch between the “ON” and “OFF” positions. Figure 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 28: Connecting To Central Pay System

    If this happens, after approximately two minutes igniter will again attempt gas ignition. IMPORTANT: If burner does not light, make sure gas is turned on. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...
  • Page 29 4. Reinstall the lower front panel. DRY2235N Shut-Off Valve Handle Open Position Air Shutter Lockscrew Closed Position Air Shutter 3,1 mm (1/8 in.) Pipe Plug (For checking manifold pressure) Figure 24 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 30: Operation

    To reduce the risk of fire and risk of lint collecting in exhaust duct, do not operate dryer without lint filter in place. W771 DRY1961N DRY1961N Figure 27 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 31: Step 4: Set Fabric Selector

    Remove knits when slightly damp because overdrying may cause shrinkage. Do not tumble dry knit woolens. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 32: Step 6: Start Dryer

    To prevent the risk of fire, never stop a dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. W756 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 33: Maintenance

    Do not obstruct the flow of combustion and ventilation air. NOTE: Verify proper operation after servicing. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 34: Lint Filter

    Dr Of f. is Co ht Go g Cy R EA Dr yin ne l FI LT N LI D757I D757I Lint Filter Figure 33 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 35: Troubleshooting

    Check room for odors before drying clothes. Any odor (fried foods, paint, Clothes have odor  varnish, cleaners, burning wood, etc.) will transfer to clothing as the dryer draws air from the room. Ventilate room before drying clothes. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 36: Disposal Of Unit

    MIX1N purchased. Figure 34 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 37: Contact Information

    +1 (920) 748-3950 for the name and address of the nearest authorized parts distributor. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 514202ENR3...

  • Page 40: Installer Checklist

    GAS ONLY • Connect Gas CHECK Supply Pipe. • Check for Gas Leaks. • Check Heat Source. D258I CHECK • Reverse Door, if DRY2235N CHECK DRY2235N Desired. CHECK DRY1956N © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
