34 C 4: R
HAPTER UNNING THE
S W
ETUP IZARD
Internet connection mode, have the modem setting information from
your ISP ready.
Select an Internet Addressing mode from the following:
PPPoE is required (typically DSL users only) see
■
ISP provides configuration dynamically (via DHCP) see
■
ISP has provided a static IP address see
■
PPTP is required (some DSL users in Europe) see
■
L2TP is required (some DSL users in Europe) see
■
and click Next.
For further information on selecting a mode see
page 65.
PPPoE Mode

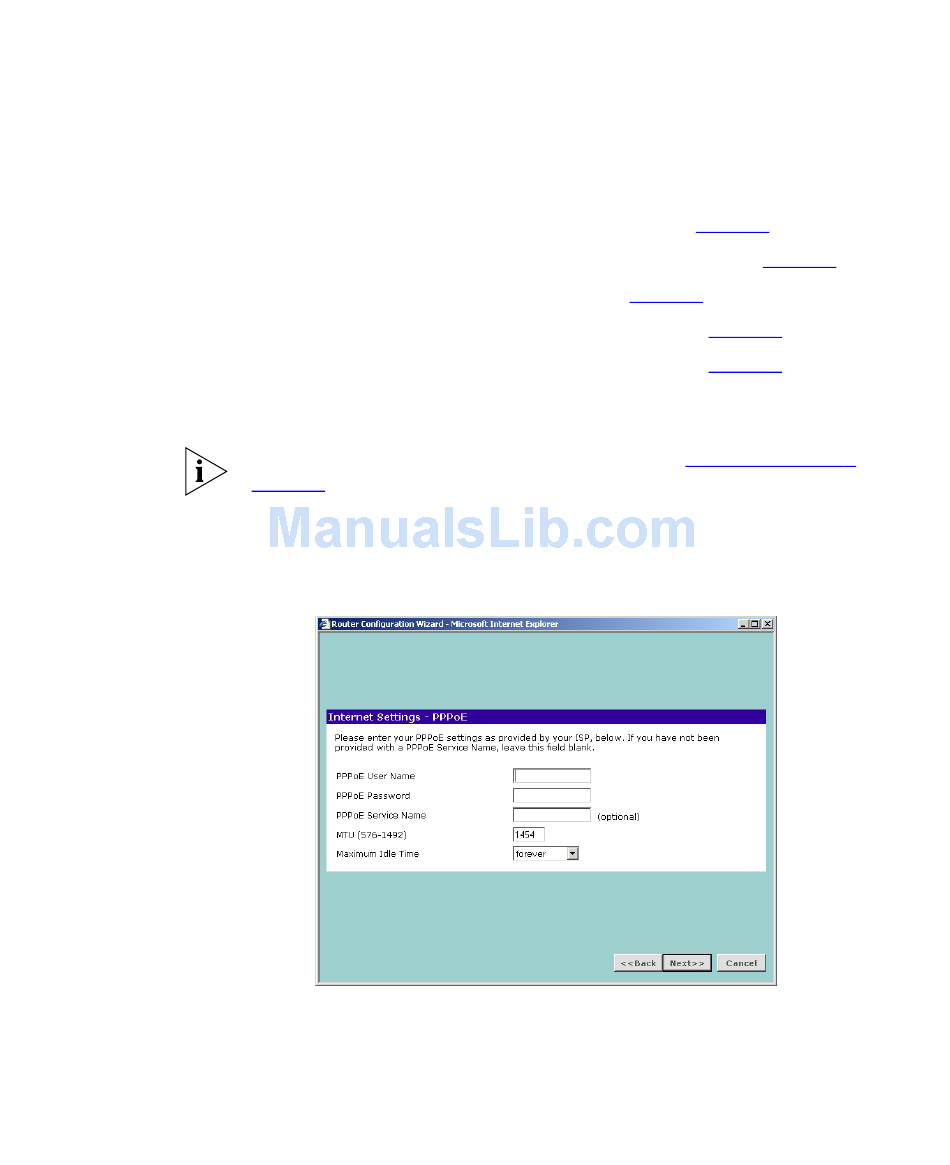

Figure 17 PPPoE Screen
To setup the Router for use with a PPP over Ethernet (PPPoE) connection,
use the following procedure:
1 Enter your PPP over Ethernet user name in the PPPoE User Name text box.
2 Enter your PPP over Ethernet password in the PPPoE Password text box.
