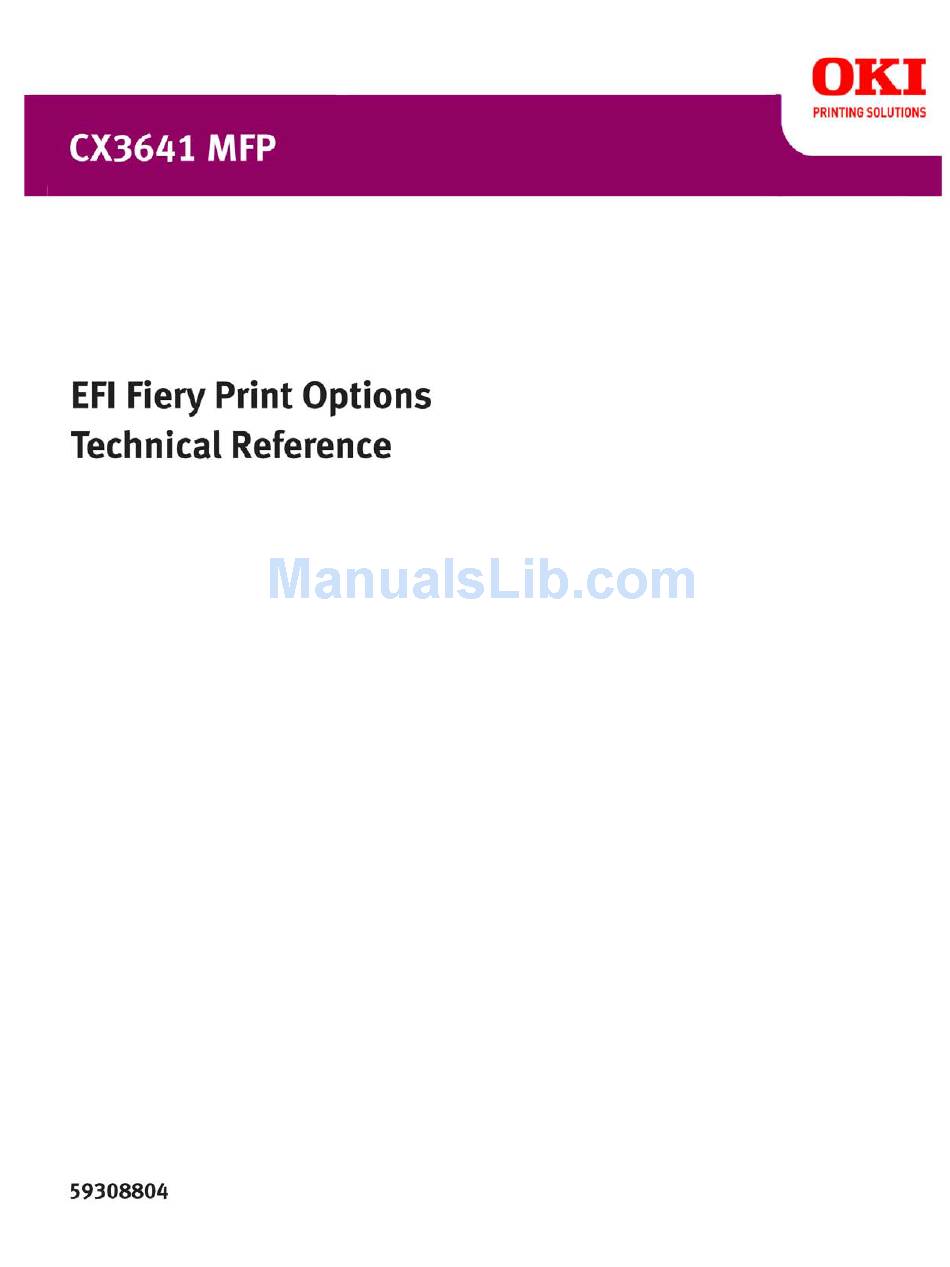

  • Page 2 EFI Fiery Print Options Technical Reference Part Number: 59308804, Rev. 1.0 15 March 2008...

  • Page 3: Table Of Contents

    ONTENTS ONTENTS ONTENTS NTRODUCTION Terminology and conventions About this document RINT PTIONS VERVIEW About printer drivers and printer description files About print options Print option override hierarchy Setting print options RINT PTIONS Print options and settings Print setting constraints Customizing printer driver Additional information 2-Sided Printing Auto Trapping...

  • Page 4: Introduction

    NTRODUCTION NTRODUCTION This document provides a description of the CX3641MFP print options. It also provides information about any constraints or requirements in effect. Terminology and conventions This document uses the following terminology and conventions. Term or convention Refers to Titles in...

  • Page 5: About This Document

    NTRODUCTION About this document This document is intended for users who want a description of all the CX3641MFP print options. It also explains each print option and provides information about any constraints or requirements in effect. It covers the following topics: •...

  • Page 6: Print Options Overview

    A printer driver also allows you to select print options for your copier/printer. To do this, the printer driver must be matched with a PPD file for your CX3641MFP. A PPD file contains information about the features and capabilities of a particular device (for example, what paper sizes and media types are supported).

  • Page 7: Setting Print Options

    RINT PTIONS VERVIEW • Settings made from Command WorkStation override the user’s printer driver settings. Setting print options • During Setup Some settings are specified during Setup by the administrator. For information about the current default server settings, contact the administrator or the operator. •...

  • Page 8: Print Options

    In the following table, underlined settings in the Option and settings column indicate default printer driver settings (PPD defaults). If you do not use the printer driver interface to configure a particular option, the CX3641MFP prints the job with the underlined setting.
  • Page 9 RINT PTIONS For more detailed procedure to customize the Basic pane, see the printer driver online Help.
  • Page 10 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) 2-Sided Printing Select Off for simplex (single-sided) For more information, see page Off/Long Edge Binding/ printing. Short Edge Binding Select Long Edge Binding for duplex (double-sided) printing with both sides using the same long edge.
  • Page 11 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) Booklet Maker: Front Cover Specify if you want to print a front cover at This option is only available with the None/Print on Front Only/ the beginning of your print job. Booklet Maker print option.
  • Page 12 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) CMYK Simulation Profile Specify the simulation goal you want for To access this option, click Expert Settings Fill in profiles the current print job. (Color tab). For more information, see Color Printing.
  • Page 13 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) FreeForm: Create Master To create a FreeForm master from this job, For more information, see Variable Data None/1-15 specify a number to assign to the FreeForm Printing.
  • Page 14 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) Imposition Reduction Specify to scale up or down the page If Imposition Reduction is set to Off/On content to maximize paper usage and Off, make sure you select the actual print ensure that all page content appears.
  • Page 15 ICC profile with one of the For more information, see Color Printing. Output Profile settings to manage the color conversion on the CX3641MFP. Select Forward to print the pages of your Page Order Forward/Reverse job from first to last.
  • Page 16 RINT PTIONS Option and settings Description Requirements, constraints, and information (default setting is underlined) Print Master When you create a Master page from an This option is available only if Create Printer’s default/Yes/No application and set this option to On, the Master is enabled..
  • Page 17 For more information, see Color Printing. Method. Select On to activate the PANTONE Lookup Table. The CX3641MFP prints specified PANTONE colors in your job by matching the CMYK print blend to the same color from the PANTONE library. Staple Indicate whether or not to staple a job.
  • Page 18 This option appears when you log in to Setup. your domain on your Windows computer. User Authentication: Username If User Authentication is enabled on the Enter a username CX3641MFP, specify your User Name to print your job. Type your user name or domain\user name for user authentication.

  • Page 19: Additional Information

    DUPLEX PAGES 1 Choose Print in your application and locate the 2-Sided Printing option. The location of CX3641MFP print options varies, depending on the printer driver you are using. 2 Choose one of the 2-Sided Printing settings: For portrait jobs, prints the top of the image on side 1 on the opposite Short Edge Binding: edge of the page from the top of the image on side 2;...

  • Page 20: Booklet Maker: Booklets

    RINT PTIONS Booklet Maker: Booklets Use this option to arrange the pages of your print job in special layouts for folding or cutting after printing. To assign a fixed center margin for your booklet job, you can use the Center Margin option.

  • Page 21: Booklet Maker: Speed Printing

    RINT PTIONS This option is the same as Perfect, except that the page order Perfect-Right Binding: sequence is from right to left Choose this setting to combine Standard and Perfect binding methods by Nested Saddle: stacking two or more Nested Saddle groups one on top of another on a common fold line, which can be stitched or glued.

  • Page 22: Center Margin

    RINT PTIONS Center Margin Use the Center Margin option to specify a fixed margin value (0–50 millimeters or 0.00–1.97 inches) at the folding line for booklet printing. The Center Margin option is available only when Booklet Maker is selected. Centering Adjustment Use the Centering Adjustment option to specify how you want the image positioned on the page relative to X (horizontal) and Y (vertical) axes, or to the left and right margins, of the page.

  • Page 23: Creep Adjustment

    RINT PTIONS Creep Adjustment Creep occurs in booklets that contain a large number of pages or are printed on heavy media. As the sheets are folded to create separate page areas, each fold causes a small incremental shift in the location of the edge of each page relative to others. Use this option to adjust images that may shift from the center of the sheet in booklet jobs.

  • Page 24: Image Shift

    RINT PTIONS Image Shift Image Shift allows you to specify how much the image on each page should be shifted relative to the X (horizontal) and Y (vertical) axis. Moving the job content in this manner enables you to allow for various finishing options, such as stapling and binding. Image Shift prevents the image from being clipped.

  • Page 25: Scale

    RINT PTIONS Scale The operator can specify a scaling override, but the override is applied to any scaling value already set in the active job. For example, if a user sends a job with a scaling value of 50% and the operator specifies a Scale override of 300%, the job is printed at 150% of the original document size, that is, 50% of 300%.

  • Page 26: Index

    NDEX NDEX Numerics Create Master option 13 Creep Adjustment option 12, 23 2-Sided Printing option 10, 19 Customizing printer driver adding and removing shortcuts 8 Align front and back images 13, 24 Auto Trapping option 10 Double Print booklet setting 21 Auto Tray Switch option 10 Duplex see 2-Sided Printing Basic pane...
  • Page 27 NDEX Center Margin option 11 Nested Saddle Group option 11 Centering Adjustment option 11 Notes field 14 CMYK Simulation Method option 11 CMYK Simulation Profile option 12 Orientation option 15 Color Mode option 12 Orientation Override option 15 Combine Separations option 12 Output Bin option 15 Composite Overprint option 12 Output Profile option 15...
  • Page 28 NDEX Speed printing 21 Spot Color Matching option 17 Standard booklet 20 Staple option 17 Toner Saving mode 17 Tray Alignment option 17 Units option 13, 24 Use Master option 13 Use Windows Login 18 User Authentication I’m a Guest option 17 Password 17 Save User Information option 18 Use Windows Login 18...
