Summary of Contents for Dual XD5220

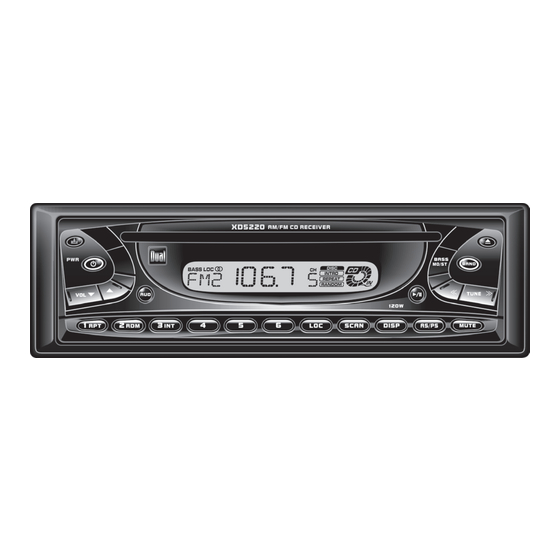

- Page 1 XD5220 INSTALLATION/OWNER’S MANUAL AM/FM/CD Receiver with Detach Face...
-
Page 2: Getting Started
XD5220 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Using an incorrect fuse could damage the radio. The XD5220 uses one 5 amp AGC fuse (Battery) located in-line. * CAUTION - Do not attach any speaker leads to ground as severe damage will occur. -
Page 4: Operation
XD5220 OPERATION Control Locations Release Power Volume Up/Down Audio Play/Pause Bass Boost/Mono/Stereo Tune/Track Up/Down Band Eject Mute Auto Store/Preset Scan Display Scan Local/Distance Preset 6 Preset 5 Preset 4 Preset 3/CD Intro Preset 2/CD Random Preset 1/CD Repeat... -
Page 5: General Operation
Mute Display Set the Clock 12/24-hour Clock XD5220 Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Remove trim ring and install supplied #1 x 7/32” Phillips head screw through left side of mounting frame into faceplate. -
Page 6: Volume Bass Treble Balance Fader
XD5220 OPERATION General Operation Reset Audio Bass Treble Balance Fader Press and hold for more than 2 seconds to RESET the unit upon initial installation. The RESET button is located behind the faceplate. Refer to page 2 for details. Press AUD to select between Volume (default), Bass, Treble, Balance &... -
Page 7: Tuner Operation
XD5220 OPERATION Tuner Operation Seek Tuning Press TUNE << or >> momentarily to seek the next strong station. Manual Tuning Press TUNE << or >> for more than 2 seconds, then release. “MANU” will momentarily appear in the display. Press TUNE <<... -
Page 8: Cd Player Operation
XD5220 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Intro Repeat Random CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. -
Page 9: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 10: Troubleshooting
XD5220 OPERATION Troubleshooting Problem Unit will not turn on Yellow wire not connected or incorrect voltage (no power) Red wire not connected or incorrect voltage Black wire not connected Fuse blown Unit has power Speaker wires not connected (but no sound) -
Page 11: Specifications
Tuning range: Usable sensitivity: Frequency response: General Total power output: Power output: Operating voltage: Speaker output impedance: Line output voltage: Dimensions: Design and specifications subject to change without notice. XD5220 OPERATION Specifications >92dB 10Hz-20kHz >65dB 1 Bit 87.5MHz-107.9MHz 8.5dBf 10dBf 40dB... - Page 12 Dual Electronics Corp. 21318 64th Ave. South Kent, WA 98032 Toll Free: 1-866-382-5476 www.dualav.com ©2005 Dual Electronics Corp. NSA0805-V01...
