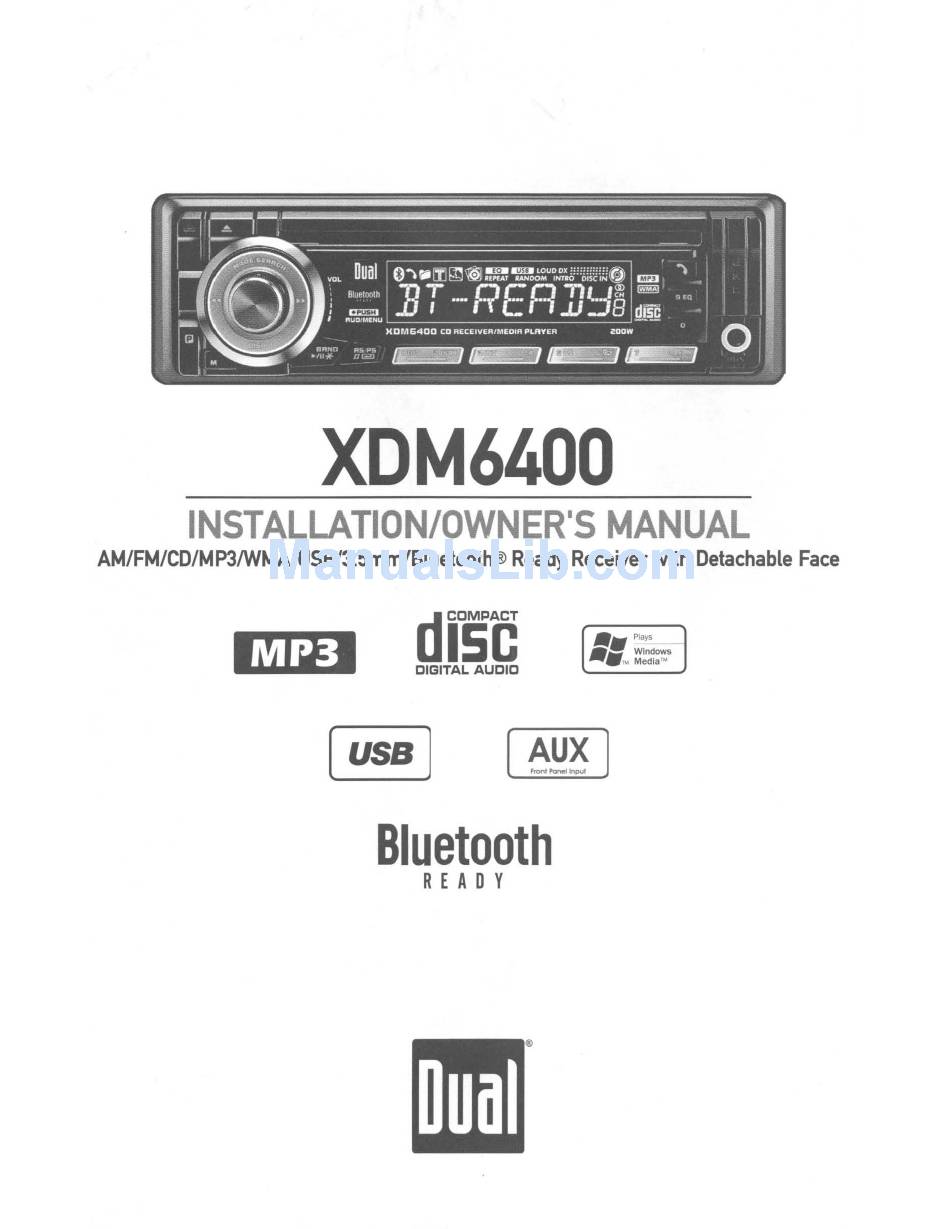

- Page 1 XDM6400 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMAlU5B/3.5mm/Bluetooth® Ready Receiver with Detachable Face diOse • • Windows Media'" OIGITAL AUDIO Front Panellnpui Bluetooth REA D Y...
- Page 2 XDM6400 INSTALLATION Preparation PLease read entire manuaL before instaLLation. Before You Start • Disconnect negative battery terminal. Consult a quaLified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures. such as from direct sunlight. or where it would be subject to dust. dirt or excessive vibration.
-
Page 3: Wiring Diagram
12 volt source. correct type and amperage. Using an incorrect fuse could damage the radio. Right Rear Right Front The XDM6400 uses one Violet/Black (-) Gray/Black (-) 10 amp ATM fuse located Violet (+) Gray (+) beside the wiring connector. -
Page 4: Control Locations - Receiver
Key 7 Power The XDM6400 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic... -
Page 5: General Operation
XDM6400 OPERATION ,---,---------- General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install. insert right side of faceplate first then push left side to secure. Semi-Permanent Remove trim ring and install supplied #1 x 7/32" Phillips head screw through left side of mounting frame into faceplate. -
Page 6: Setup Menu
• • XDM6400 OPERATION General Operation Set the Clock With the unit on. press and hold DISP until the clock begins to flash. then release. Press TUNE ..to adjust the hours and TUNE to adjust the minutes. Press DISP momentarily to save the selected time. - Page 7 XDM6400 OPERATION . . General Operation Audio Press rotary encoder momentarily to select between Volume (default). Bass. Treble. Balance. & Fader. ~BASS~TREBLE""BALANCE""FADERJ rVOLUME Bass Press rotary encoder until BAS appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum).
-
Page 8: Am/Fm Tuner Operation
• • XDM6400 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE momentarily to seek the next strong station. ~~for Press TUNE or TUNE more than two seconds. Manual Tuning then release. "MANUAL" will momentarily appear in the display. Press TUNE... -
Page 9: Cd Player Operation
XDM6400 OPERATION . . CD Player Operation Insert With the label facing up. insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (tuner. - Page 10 . . XDM6400 OPERATION CD Player Operation - MP3/WMA Files Playing an MPJ/WMA Disc When an MP3/WMA encoded disc is first inserted. "READING" will appear in the display. Depending on the number of files and folders. this may take several seconds.
- Page 11 XDM6400 OPERATION . . CD Player Operation - MP3/WMA Files Refer to the following button function table when selecting. searching or navigating MP3IWMA files and folders: Button Function SEARCH Direct Select. Search and Navigate Modes Enter/Confirm A. B. C. 1 Preset #1 D.
- Page 12 . . XDM6400 OPERATION CD Player Operation - MP3/WMA Files Alphanumeric File Press SEARCH for more than 3 seconds. then release. "*" or Folder Search Press SEARCH again. an will flash in the display. Step 1 Use the buttons in the table on page 12 (32 character maximum input) or the rotary encoder to enter the desired alphanumeric search characters.
- Page 13 XDM6400 OPERATION . . CD Player Operation - MP3/WMA Files Navigating Note After navigating by direct select. alphanumeric search or file/folder navigate modes. the track number and elapsed time will be displayed by default. Press OISP momentarily to select clock. track name. directory name. title. artist and album.
- Page 14 • • XDM6400 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The foLLowing types of discs/fiLes are compatibLe: • CD-ROM (ISO), CD-R. CD-RW • CD-DA • MP3 data • WMA data The foLLowing types of discs/files are not compatibLe: •...
- Page 15 XDM6400 OPERATION . ' CD Player Operation - MP3/WMA Files An internal buffer provides ESP (Electronic Skip Protection) to Additional MP3/WMA virtually eliminate skipping. Information When playing a disc recorded with regular audio files (CO-OA or .WAV) and MP3IWMA files. the unit will play the MP3/WMA files only.
- Page 16 Play MP3/WMA files from most mass storage devices by Connecting a USB Device (sold separately) connecting them to the XDM6400's USB port. To connect a USB device. lift the protective cover to expose the USB port. Line up the connectors. and insert the USB device into the port.
- Page 17 XDM6400 OPERATION . ' USB Operation - MP3/WMA Files (Optional) File Navigation Press SEARCH for more than three seconds. then release. "T*" will appear in the display. Use the rotary encoder to select the desired track number and press I..) to confirm.
- Page 18 . . XDM6400 OPERATION USB Operation - MP3/WMA Files (Optional) Intro Press INT momentarily to play the first seconds of each file on the entire USB device. Press INT again to cancel. Folder Intro Press INT for more than two seconds to play the first seconds of each file in the current folder only.
- Page 19 XDM6400 OPERATION • USB Operation - MP3/WMA Files (Optional) Playback Capacity • Maximum number of files: 48896 • Maximum number of folders: 127 plus the root directory • Maximum number of files in each folder and root: 382 • Maximum number of folder levels (sub folders): 8...
-
Page 20: Bluetooth® Operation (Optional)
Overview Connecting a Bluetooth device requires first connecting the Dual BTM60 module (sold separately). When connected to a Dual Bluetooth Ready head unit. the BTM60 supports the HFP (hands-free profile), A2DP (advanced audio distribution profile) and AVRCP (audio video remote control profile). - Page 21 XDM6400 OPERATION . . Bluetooth® Operation (Optional) Press. once. An "_" will appear on the display. Input the desired phone number using the 0-9. *. buttons on the head unit front panel. Press. to begin dialing. Making a Phone Call A phone call may also be placed from your mobile device using the keypad.
-
Page 22: Bluetooth® Settings (Optional)
. . XDM6400 OPERATION Bluetooth® Settings (Optional) BTON Enables the BTM60 Bluetooth Interface Module (sold separately). The Bluetooth icon will flash every 10 Bluetooth Mode seconds. BTOFF Disables Bluetooth support. ACNT ON Allows the BTM60 to automatically (re)connect to the most recently connected mobile device. -
Page 23: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2. -
Page 24: Troubleshooting - General
. . XDM6400 OPERATION Troubleshooting - General Yellow wire not connected or incorrect voltage Check connections for proper Unit will not tum on Red wire not connected or incorrect voltage voltage (1l-l6VDC) (no power) Black wire not connected Check connection to ground... -
Page 25: Specifications
XDM6400 OPERATION. - - - Specifications 10Hz-20kHz CD Player Frequency response: >65dB Channel separation 1kHz: A converter: 1 87.5MHz-l07.9MHz Tuning range: FMTuner 8.5dBf Usable sensitivity: 10dBf 50dB quieting sensitivity: 40dB Stereo separation 1kHz: 30Hz-13kHz Frequency response: 530kHz-1710kHz AM Tuner Tuning range:... - Page 26 • • XDM6400 OPERATION Notes...
- Page 27 XDM6400 OPERATION . ' Notes...
- Page 28 Toll Free: 1-866-382-5476 www.dualav.com ©2008 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks. or registered trademarks of Microsoft Corporation in the United States and or other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG. Inc. and any use of such marks by Movon is under license.
- Page 29 BTM60 INSTALLATION/QUICK START GUIDE Wireless Bluetooth Module I) Bluetooth® Dual...
-
Page 30: Typical Installation
• Carefully route the connection cable down the A-pillar of the vehicle. then to the back of your Dual Bluetooth® ready head unit. • Plug the BTM60 connector into the back of the head unit. making sure to line up the arrows before connecting. -
Page 31: Receiving A Call
BTMbO OPERATION • • Quick Start Guide Note: You must first pair and connect your Bluetooth® mobile device to the BTM60 to place and receive calls. Refer to your head unit owner's manual for pairing and detailed operation instructions. Receiving a Call •... - Page 32 A Dual Electronics Corp. warrants this product to the slight adjustment of any custom controls may save original purchaser to be free from defects in material you a service call.
