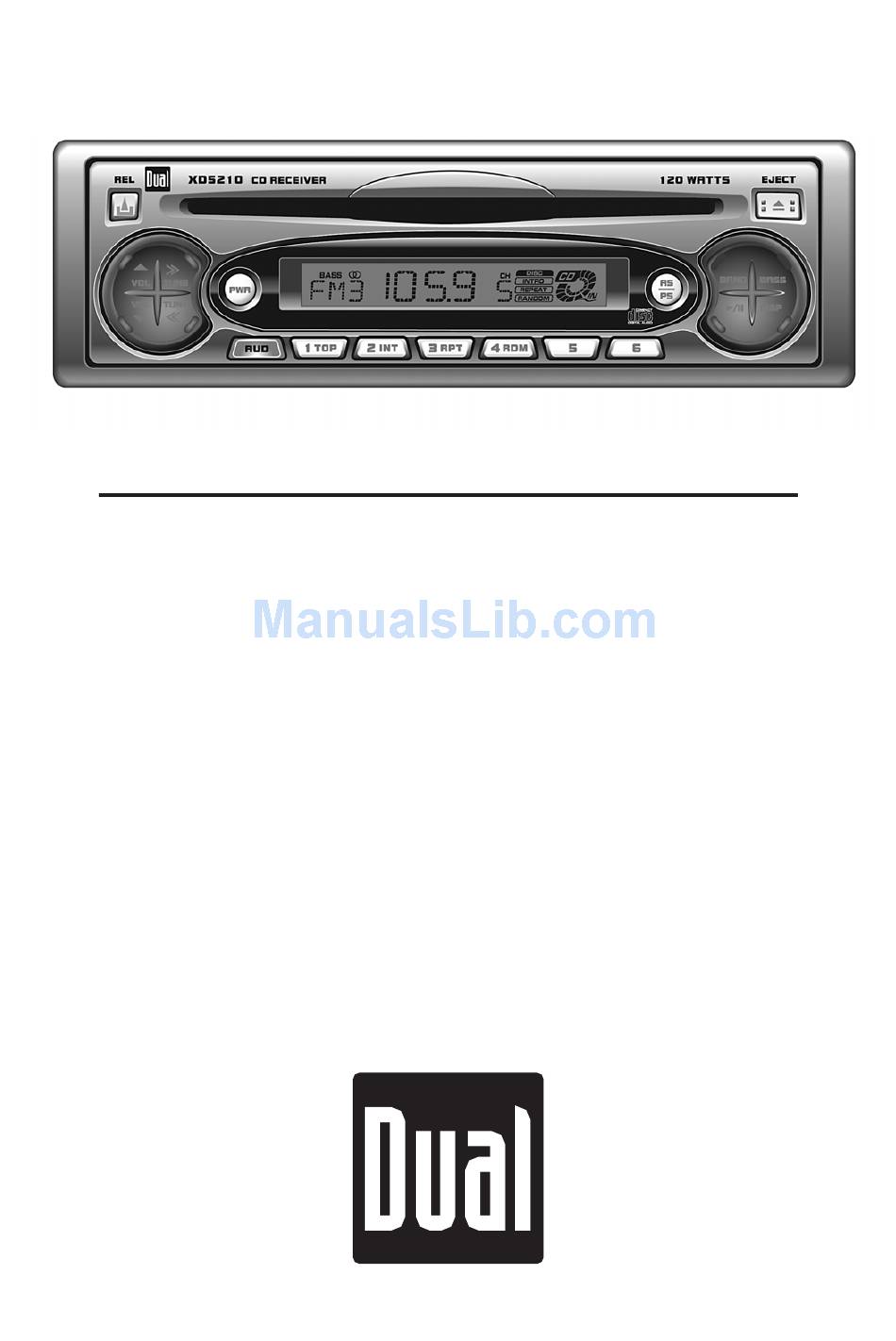

- Page 1 XD5210 INSTALLATION/OWNERS MANUAL AM/FM/CD Receiver...
-
Page 2: Preparation
XD5210 Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. - Page 3 XD5210 INSTALLATION Installation T Y P I C A L M O U N T I N G M E T H O D...
-
Page 4: Replacing Fuse
FUSES When replacing fuses, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XD5210 uses one .5 amp AGC fuse (Ignition) and one 5 amp AGC fuse (Battery) located in-line. -
Page 5: Operation
Release Volume Tune/Track Up Band Bass Boost Eject Display Play/Pause Auto Store/Preset Scan XD5210 OPERATION Control Locations Preset 6 Preset 5 Preset 4/CD Random Preset 3/CD Repeat Preset2/CD Intro Preset 1/CD Top Audio Power Tune/Track Down... -
Page 6: General Operation
Adjust volume using VOL ▲ or VOL ▼ (00-39). Volume Display Press DISP to display the clock. The radio frequency (tuner mode) or CD track/elapsed time (CD player mode) show by default. Set the Clock Press DISP to display the clock, then release. Press and hold DISP then press TUNE <<... - Page 7 XD5210 OPERATION General Operation Reset Press and hold for more than 2 seconds to RESET the unit upon initial installation or if abnormal operation occurs. The RESET button is located behind the faceplate. Audio Press AUD to select between Volume (default), Bass, Treble, Balance &...
-
Page 8: Tuner Operation
XD5210 OPERATION Tuner Operation Press TUNE << or >> momentarily to seek the next Seek Tuning strong station. Press TUNE << or >> for more than 2 seconds, then Manual Tuning press TUNE << or >> momentarily to move radio frequency up or down one step at a time. -
Page 9: Cd Player Operation
Press TOP to begin playback from track 1. Some CD-Rs and CD-RWs may be incompatible with CD-R/CD-RW this unit, depending on media type and recording Compatibility method. XD5210 OPERATION CD Player Operation / II to temporarily stop CD playback. / II again to resume playback. -
Page 10: Limited One-Year Warranty
UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment. 4. DUAL will pay the return shipping charges if the product is returned to an address within the USA. Namsung America Inc. -
Page 11: Troubleshooting
ER04 appears on display Tracking auto adjustment error ER06 appears on display Sled operation error ER07 appears on display Focus search operation error ER08 appears on display CLV (PLL) operation error ER09 appears on display TOC data read error XD5210 OPERATION Troubleshooting Cause Check connections for proper... -
Page 12: Specifications
XD5210 Specifications CD Player FM Tuner AM Tuner General WARRANTY >86dB Signal-to-noise: Frequency response: Channel separation @ 1kHz: 16 Bit D/A converter: 87.5MHz-107.9MHz Tuning range: 12dBf Usable sensitivity: 50dB quieting sensitivity: Stereo separation @ 1kHz: Frequency response: 530kHz-1710kHz Tuning range:... - Page 13 DCS65 INSTALLATION/OWNERS MANUAL Multi-fit 6.5" 2-way Car Audio Speakers...
- Page 14 DCS65 INSTALLATION Preparation/Installation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) Getting Started • Be sure to carefully read and understand the instructions before attempting to install the product. •...
- Page 15 UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment. 4. DUAL will pay the return shipping charges if the product is returned to an address within the USA. Namsung America Inc.
- Page 16 DCS65 SPECIFICATIONS Specifications Outside Diameter Mounting Depth Mounting Height Cut-out Diameter Frequency Response Sensitivity Impedance RMS Power Peak Power 6.75" 1.7" .3" 4.9" 88Hz-15kHz, ±3dB 89dB 1W/1M 4 ohms 25 Watts 65 Watts Design and specifications subject to change without notice Namsung America Inc.
