Summary of Contents for Dual XD1228

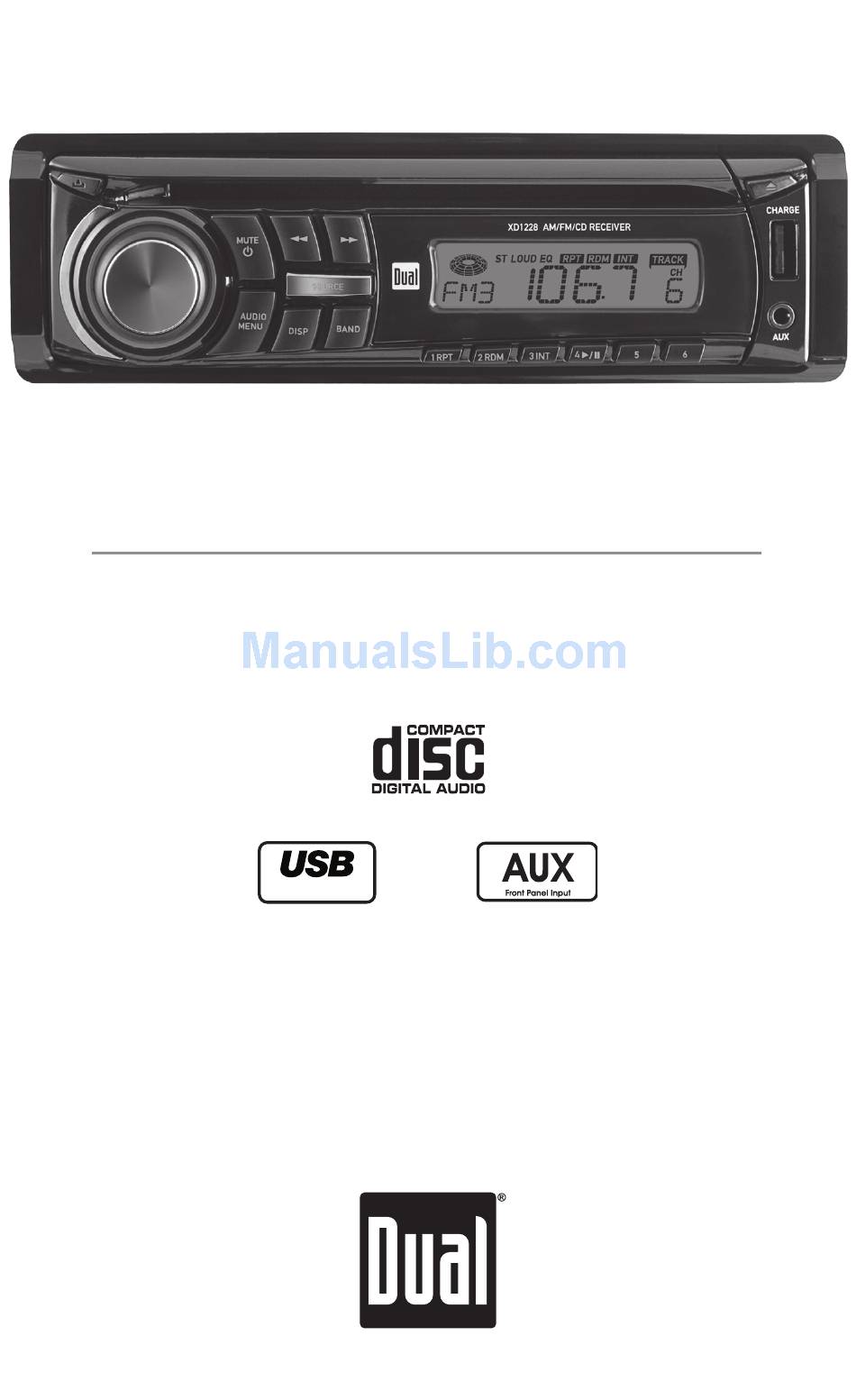

- Page 1 XD1228 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver Charge Port...
-
Page 2: Typical Mounting Method
XD1228 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Left Rear Green/Black (-) Green (+) Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XD1228 uses one 5 amp AGC fuse located in-line. -
Page 4: Control Locations
USB Charging Port Auxiliary Input The XD1228 has an easy-to-use interface that provides a rewarding experience, as well as support for your favorite tunes. Audio CD-R and CD-RW disc playback ensures compatibility with your music collection, and the RCA preamp output provides the right connections to expand your system. -
Page 5: General Operation
Volume Display Set the Clock 12/24-hour Clock Reset XD1228 OPERATION General Operation Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Remove trim ring and install supplied #1 x 7/32” Phillips head screw through left side of mounting frame into faceplate. - Page 6 XD1228 OPERATION General Operation Setup Menu Menu Function Options LOUD OFF Loudness Curve LOUD ON FRE USA Tuner Frequency Spacing FRE EU LOC OFF Local/Distance Tuning LOC ON CLK ON Clock Display CLK OFF BEEP OFF Beep Confirmation BEEP ON ILLU HI Illumination Dimmer ILLU LO USB Charging Port...
-
Page 7: Audio Operation
Seek Tuning Manual Tuning FM Stereo/Mono Band Storing and Recalling Station Presets XD1228 OPERATION Press AUDIO until BAS appears Rotate the volume knob left/right to adjust (-6 minimum / 6 maximum) Press AUDIO until TRE appears Rotate the volume knob left/right to adjust (-6 minimum / 6 maximum) Press AUDIO until BAL appears Rotate the volume knob left/right to adjust... -
Page 8: Cd Player Operation
XD1228 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Intro Repeat Random CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press the EJECT button to stop and eject the CD. -
Page 9: Troubleshooting
ER-1 appears on the display ER-2 appears on the display ER-3 appears on the display Cause Cause Disc error Mechanism error or disc is upside down Servo Error XD1228 OPERATION Troubleshooting Action Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse Check connections at speakers Insulate all bare speaker wires from each... -
Page 10: Limited One Year Warranty
Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal... -
Page 11: Fcc Compliance
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XD1228 OPERATION FCC Compliance... -
Page 12: Specifications
Frequency response: 80Hz-2kHz General Speaker output impedance: 4~8 ohms Fuse: 5 amp AGC Dimensions: 7" x 7" x 2" (178 x 178 x 51 mm) Design and specifications subject to change without notice. CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz) Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. NSA0611-V01...
