Dual XDM6350 Installation & Owner's Manual

Am/fm/cd/mp3/wma/usb/3.5mm receiver with detachable face
Hide thumbs Also See for XDM6350:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

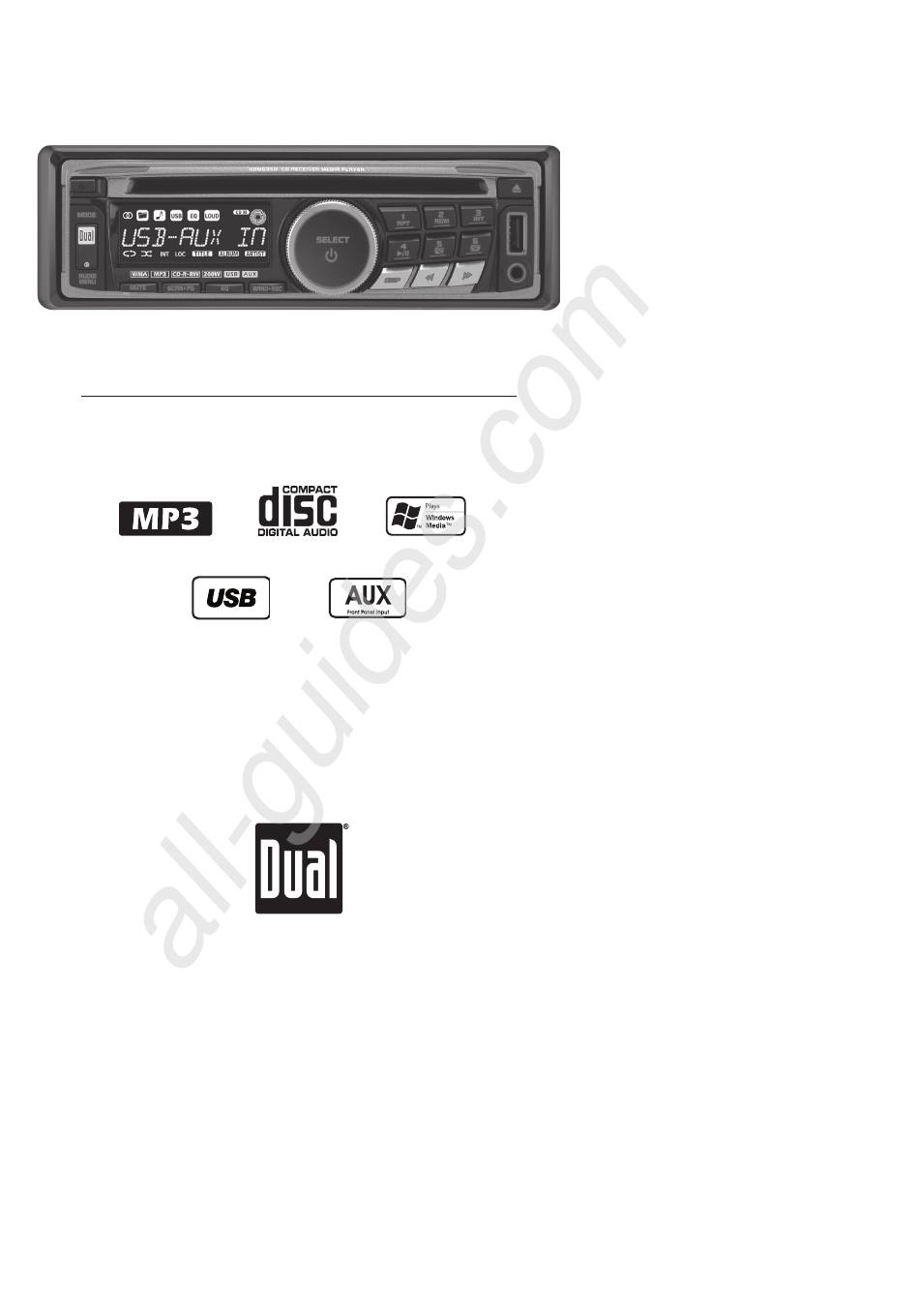

XDM6350
INSTALLATION/OWNER'S MANUAL
AM/FM/CD/MP3/WMA/USB/3.5mm Receiver with Detachable Face

Advertisement

Table of Contents
loading

Related Manuals for Dual XDM6350

Summary of Contents for Dual XDM6350

  • Page 1 All manuals and user guides at all-guides.com XDM6350 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/USB/3.5mm Receiver with Detachable Face...
  • Page 2 All manuals and user guides at all-guides.com XDM6350 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    Steering Wheel Interface Input (PAC SWI-PS required) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM6350 uses one 10 amp ATM fuse located beside the wiring connector.

  • Page 4: Control Locations - Receiver

    Audio/Menu Eject The XDM6350 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic...

  • Page 5: Control Locations - Remote

    All manuals and user guides at all-guides.com XDM6350 OPERATION Control Locations - Remote Mode Preset 5/Folder Down Local/Distance Tuning Power ( )/Select Loudness Volume Up Display Audio/Menu Mute Tune/Track Up Volume Down Preset 4/Play/Pause Scan/PS Preset 1/Repeat Preset 3/Intro Band/ESC Preset 2/Random Tune/Track Down...

  • Page 6: General Operation

    All manuals and user guides at all-guides.com XDM6350 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-Permanent  Remove trim ring and install supplied #1 x 7/32” Phillips head screw through left side of mounting frame into faceplate.

  • Page 7: Setup Menu

    All manuals and user guides at all-guides.com XDM6350 OPERATION General Operation The clock will display 12-hour AM/PM time in USA frequency 12/24-hour Clock spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options.
  • Page 8 All manuals and user guides at all-guides.com XDM6350 OPERATION General Operation Escape Press ESC to exit any menu adjustment mode. Audio Press AUDIO/MENU momentarily to select between Volume (default), Bass, Treble, Balance, Fader, Subwoofer and Source Volume Level. VOLUME BASS TREBLE BALANCE...
  • Page 9 All manuals and user guides at all-guides.com XDM6350 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE  for more than one second to seek the next strong station. Manual Tuning Press TUNE or TUNE  momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly.

  • Page 10: Cd Player Operation

    All manuals and user guides at all-guides.com XDM6350 OPERATION  CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (tuner, AUX or USB).
  • Page 11 All manuals and user guides at all-guides.com XDM6350 OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA Disc When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Displaying Information Press DISP to select between track name (default), song title, artist, track number or clock &...
  • Page 12 All manuals and user guides at all-guides.com XDM6350 OPERATION  CD Player Operation - MP3/WMA Files Folder/File Search Mode Press SELECT to enter the folder/file search mode. The head unit will read the CD, and a list of folders and files from the CD will be displayed, starting from the current directory.
  • Page 13 All manuals and user guides at all-guides.com XDM6350 OPERATION CD Player Operation - MP3/WMA Files Folder Access  Press to select the previous folder. Press to select the next folder. Note: Folder access is only available on MP3/WMA discs recorded with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the rotary encoder to select one of the following options: •...
  • Page 14 All manuals and user guides at all-guides.com XDM6350 OPERATION  CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 15 All manuals and user guides at all-guides.com XDM6350 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA  An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
  • Page 16 All manuals and user guides at all-guides.com XDM6350 OPERATION USB Operation - MP3/WMA Files (Optional) Play MP3/WMA files from most mass storage devices by Connecting a USB Device connecting them to the XDM6350's USB port. (sold separately) When a USB device is first connected, press MODE to Playing Music access USB mode. “READING” will appear momentarily in the display.
  • Page 17 All manuals and user guides at all-guides.com XDM6350 OPERATION USB Operation - MP3/WMA Files (Optional) Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select file name (default), song title, artist, track number or clock & elapsed time.
  • Page 18 All manuals and user guides at all-guides.com XDM6350 OPERATION USB Operation - MP3/WMA Files (Optional) Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 19 All manuals and user guides at all-guides.com XDM6350 OPERATION USB Operation - MP3/WMA Files (Optional) Additional MP3/WMA  Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension.

  • Page 20: Limited One Year Warranty

    A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one 2.

  • Page 21: Troubleshooting - General

    All manuals and user guides at all-guides.com XDM6350 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper Unit will not turn on  Red wire not connected or incorrect voltage voltage (11~16VDC) (no power) Black wire not connected Check connection to ground...

  • Page 22: Specifications

    All manuals and user guides at all-guides.com XDM6350 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner...
  • Page 23 All manuals and user guides at all-guides.com XDM6350 OPERATION Notes...
  • Page 24 Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. Other trademarks and trade names are those of their respective owners.
