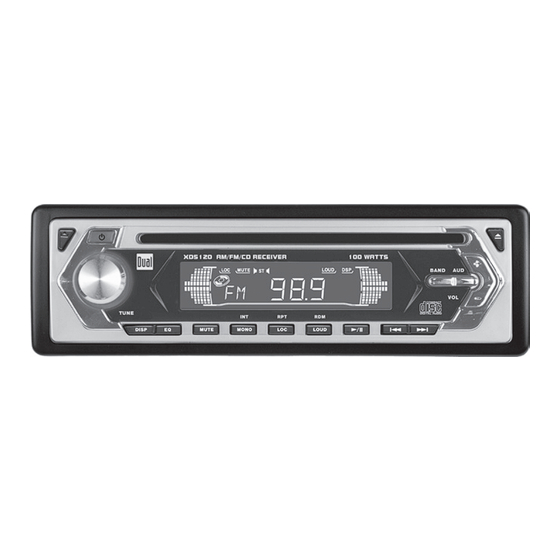

Dual XD5120 Installation & Owner's Manual

Dual am/fm/cd receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

XD5120
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver

Advertisement

Table of Contents
loading

Related Manuals for Dual XD5120

Summary of Contents for Dual XD5120

  • Page 1 XD5120 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver...

  • Page 2: Preparation

    XD5120 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Installation

    XD5120 INSTALLATION Installation TYPICAL MOUNTING METHOD...

  • Page 4: Wiring Diagram

    Using an incorrect fuse could damage the radio. The XD5120 uses one 7 amp AGC fuse (Battery), one 0.5 amp AGC fuse (Ignition) and one 0.5 amp AGC fuse (Remote Turn-on) located in-line.

  • Page 5: Control Locations

    Release Power Band Audio Volume Up Eject Volume Down Track Up Track Down XD5120 OPERATION Control Locations Play/Pause Loudness/CD Random Local/Distance/CD Repeat Mono/Stereo/CD Intro Mute Display Tuning...

  • Page 6: General Operation

    XD5120 OPERATION General Operation Faceplate Removal Power On/Off CD Mode Tuner Mode   Loudness Volume Mute Display Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Press POWER to turn the unit on. Inserting a CD will turn the unit on automatically.
  • Page 7 XD5120 OPERATION General Operation Set the Clock Press and hold DISP until the clock begins to flash, then release. Press TRACK         to adjust the hours and TRACK        to adjust the minutes. Press DISP momentarily to save the selected time. Preset EQ Curves Press EQ to select between POP, CLASSIC, ROCK and OFF (default) equalization curves.

  • Page 8: Tuner Operation

    XD5120 OPERATION Tuner Operation Tuning FM Mono/Stereo Local/Distance Band  Turn TUNE knob to select desired station. Press MONO during FM tuner operation to select mono or stereo (default) reception of the broadcast signal. Press LOC during FM tuner operation to activate local tuning for strong station reception only. Press LOC again to cancel and resume Distance tuning (default).

  • Page 9: Cd Player Operation

    CD-R/CD-RW  Some CD-Rs and CD-RWs may be incompatible with Compatibility this unit, depending on media type and recording method. XD5120 OPERATION CD Player Operation to skip to the beginning of the next to return to the beginning of or TRACK / II to temporarily stop CD playback.

  • Page 10: Limited One Year Warranty

    This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

  • Page 11: Specifications

    CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz) Power Output: 5 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 65dBA (reference: 1 watt into 4 ohms) XD5120 OPERATION Specifications 20Hz-20kHz >50dB 1 Bit 87.5MHz-107.9MHz...

  • Page 12: Troubleshooting

    Physical defect in media (CD, CD-R or CD-RW) Err appears on  Load/Eject operation error or disc is display in upside down ©2006 Dual Electronics Corp. All rights reserved. Cause Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com NSA0806-V01 Action...
