1.10 Connectors

This section describes and illustrates the motherboard rear panel and
internal connectors.

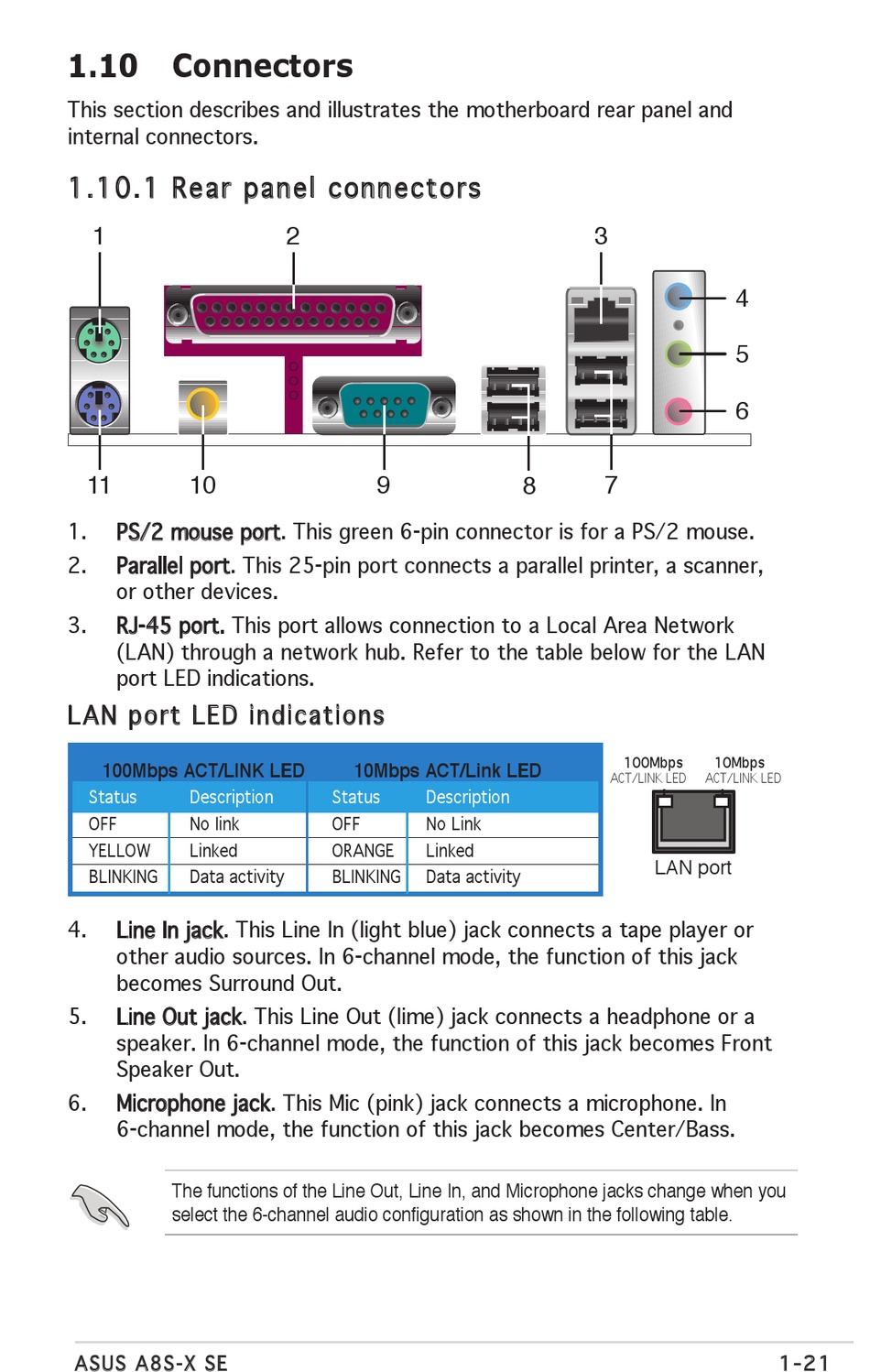

1.10.1 Rear panel connectors

1
11
10
1.
PS/2 mouse port. This green 6-pin connector is for a PS/2 mouse.
2.
Parallel port. This 25-pin port connects a parallel printer, a scanner,
or other devices.
3.
RJ-45 port. This port allows connection to a Local Area Network
(LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
LAN port LED indications
100Mbps ACT/LINK LED
Status
Description
OFF
No link
YELLOW
Linked
BLINKING
Data activity
4.
Line In jack. This Line In (light blue) jack connects a tape player or
other audio sources. In 6-channel mode, the function of this jack
becomes Surround Out.
5.
Line Out jack. This Line Out (lime) jack connects a headphone or a
speaker. In 6-channel mode, the function of this jack becomes Front
Speaker Out.
6.
Microphone jack. This Mic (pink) jack connects a microphone. In
6-channel mode, the function of this jack becomes Center/Bass.
The functions of the Line Out, Line In, and Microphone jacks change when you
select the 6-channel audio configuration as shown in the following table.
ASUS A8S-X SE
2
9
10Mbps ACT/Link LED
Status
Description
OFF
No Link
ORANGE
Linked
BLINKING
Data activity
3
7
8
100Mbps
ACT/LINK
LED
ACT/LINK LED
LAN port
4
5
6
10Mbps
SPEED
LED
ACT/LINK LED
1-21
