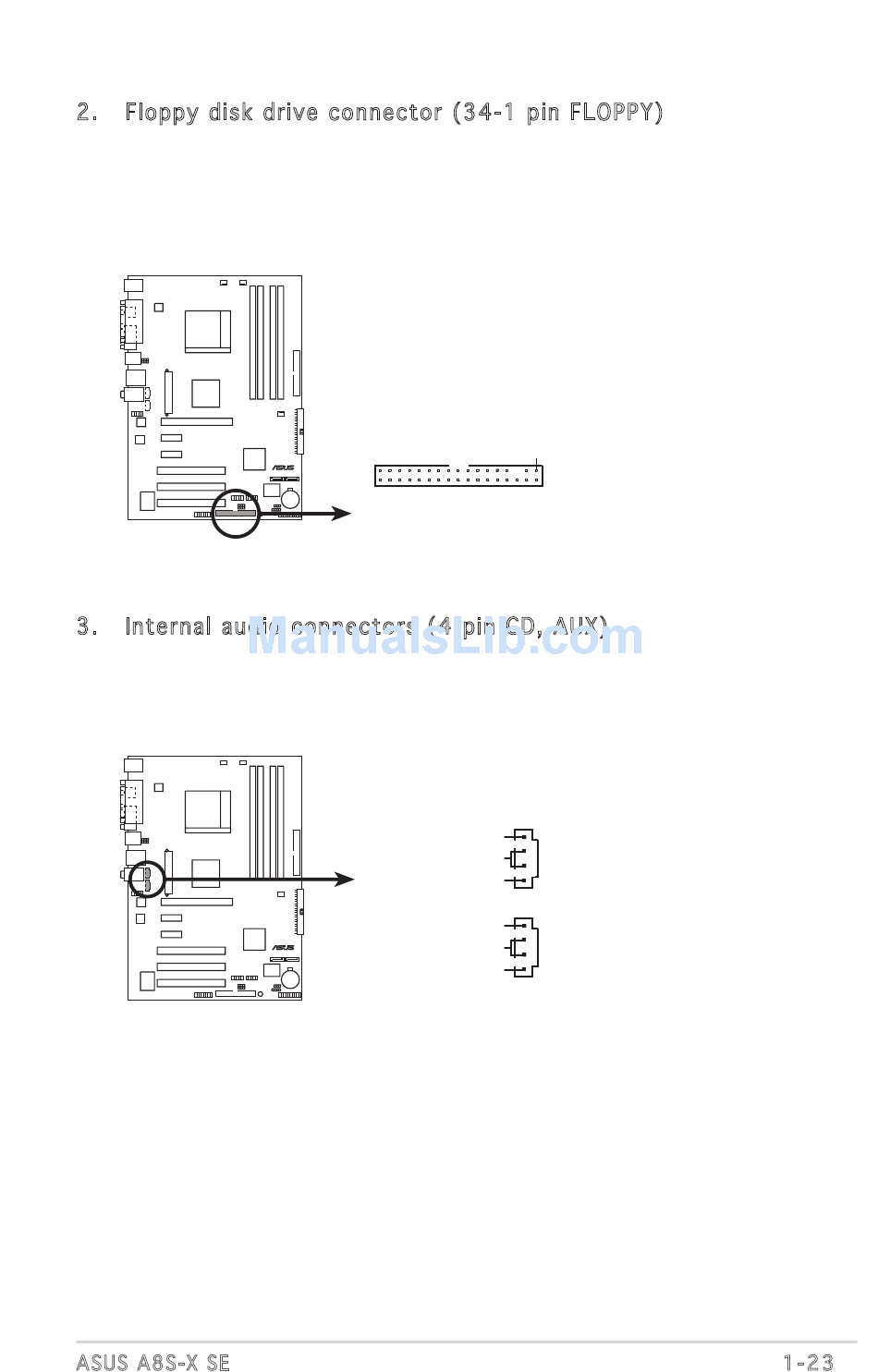

2. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to
the floppy drive. (Pin 5 is removed to prevent incorrect insertion when
using ribbon cables with pin 5 plug).
A8S-X SE
A8S-X SE Floppy Disk Drive Connector
3. Internal audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card.
A8S-X SE
A8S-X SE Internal Audio Connectors
ASUS A8S-X SE
FLOPPY
®
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
Right Audio Channel
Ground
Left Audio Channel
Right Audio Channel
Ground
®
Left Audio Channel
PIN 1
CD (Black)
AUX (White)
1-23
