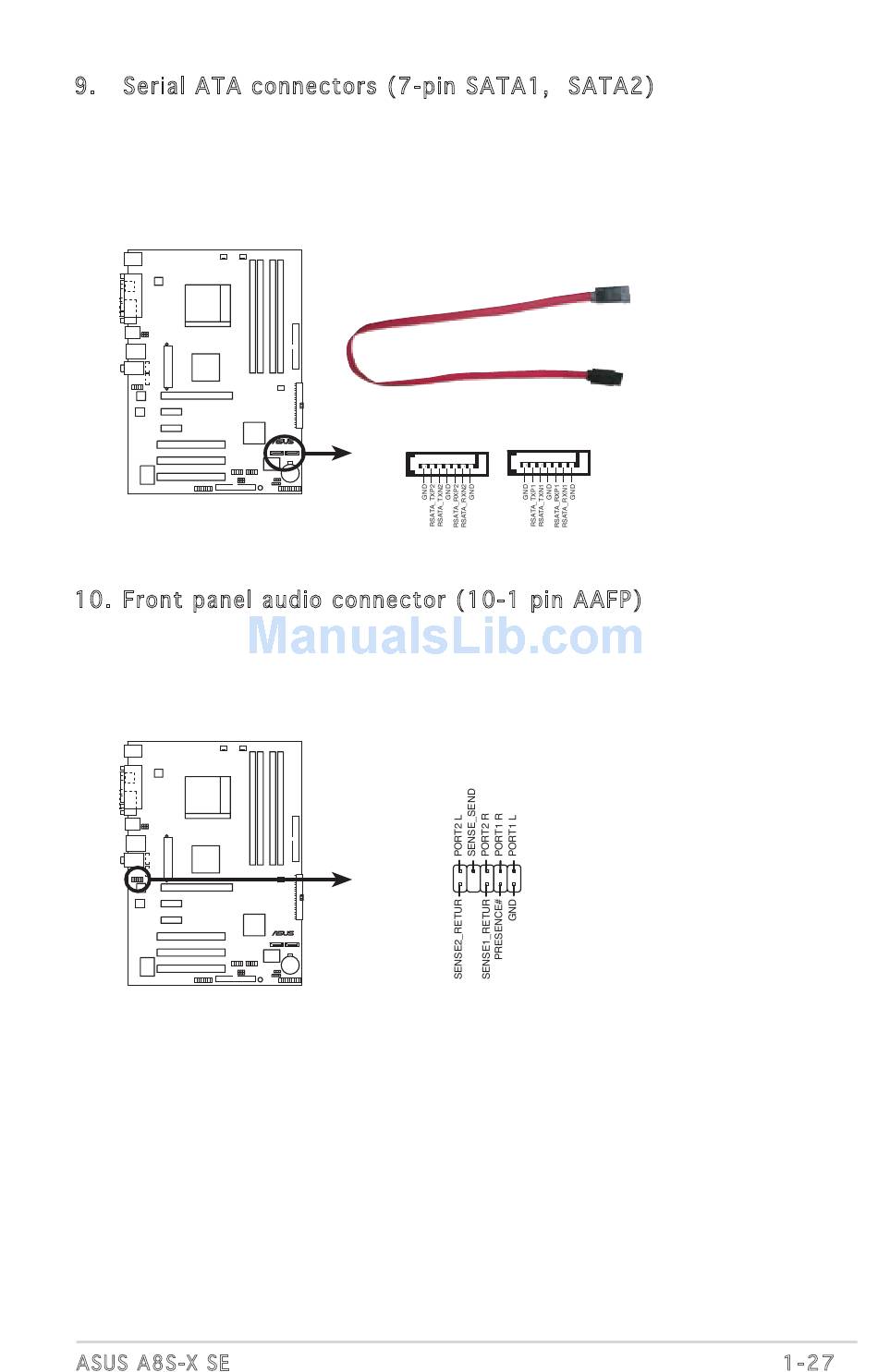

9. Serial ATA connectors (7-pin SATA1, SATA2)
These next generation connectors support the thin Serial ATA cables
for primary internal storage devices. The current Serial ATA interface
allows up to 150 MB/s data transfer rate, faster than the standard
parallel ATA with 133MB/s (Ultra ATA/133).
A8S-X SE
A8S-X SE SATA Connectors
10. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports legacy AC ʻ97 audio standard. Connect one end of the
front panel audio I/O module cable to this connector.
A8S-X SE
A8S-X SE Analog Front Panel Connector
ASUS A8S-X SE
SATA2
®
AAFP
®
SATA1
1-27
