XDMP680 OPERATION

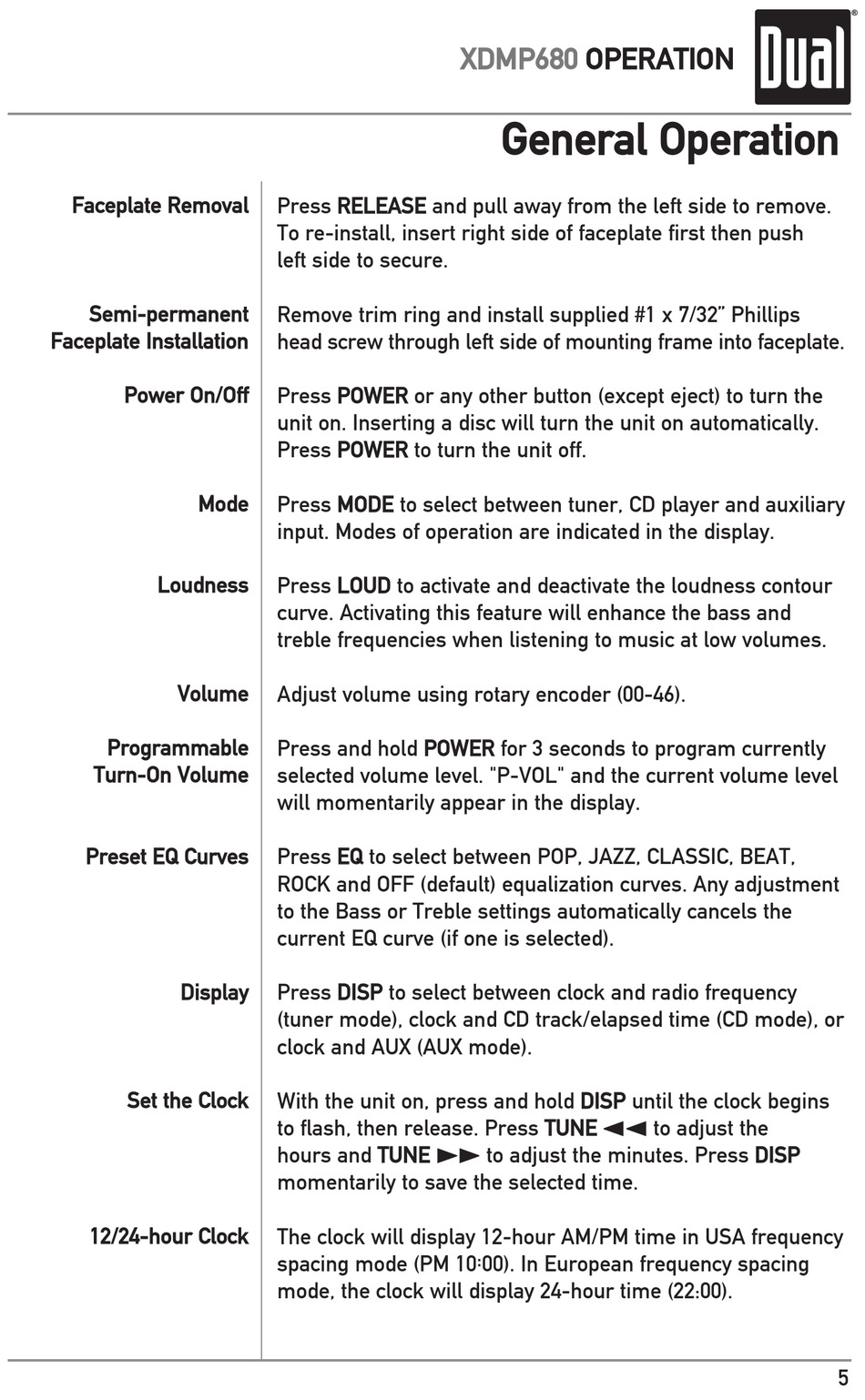

General Operation
Faceplate Removal
Press RELEASE and pull away from the left side to remove.
To re-install, insert right side of faceplate first then push
left side to secure.
Semi-permanent
Remove trim ring and install supplied #1 x 7/32" Phillips
Faceplate Installation
head screw through left side of mounting frame into faceplate.
Power On/Off
Press POWER or any other button (except eject) to turn the
unit on. Inserting a disc will turn the unit on automatically.
Press POWER to turn the unit off.
Mode
Press MODE to select between tuner, CD player and auxiliary
input. Modes of operation are indicated in the display.
Loudness
Press LOUD to activate and deactivate the loudness contour
curve. Activating this feature will enhance the bass and
treble frequencies when listening to music at low volumes.
Volume
Adjust volume using rotary encoder (00-46).
Programmable
Press and hold POWER for 3 seconds to program currently
Turn-On Volume
selected volume level. "P-VOL" and the current volume level
will momentarily appear in the display.
Preset EQ Curves
Press EQ to select between POP, JAZZ, CLASSIC, BEAT,
ROCK and OFF (default) equalization curves. Any adjustment
to the Bass or Treble settings automatically cancels the
current EQ curve (if one is selected).
Display Press DISP to select between clock and radio frequency
(tuner mode), clock and CD track/elapsed time (CD mode), or
clock and AUX (AUX mode).
Set the Clock With the unit on, press and hold DISP until the clock begins
nn
to flash, then release. Press TUNE to adjust the
ll
hours and TUNE to adjust the minutes. Press DISP
momentarily to save the selected time.
12/24-hour Clock The clock will display 12-hour AM/PM time in USA frequency
spacing mode (PM 10 : 00). In European frequency spacing
mode, the clock will display 24-hour time (22:00).
5
