Summary of Contents for Dual XDM7610

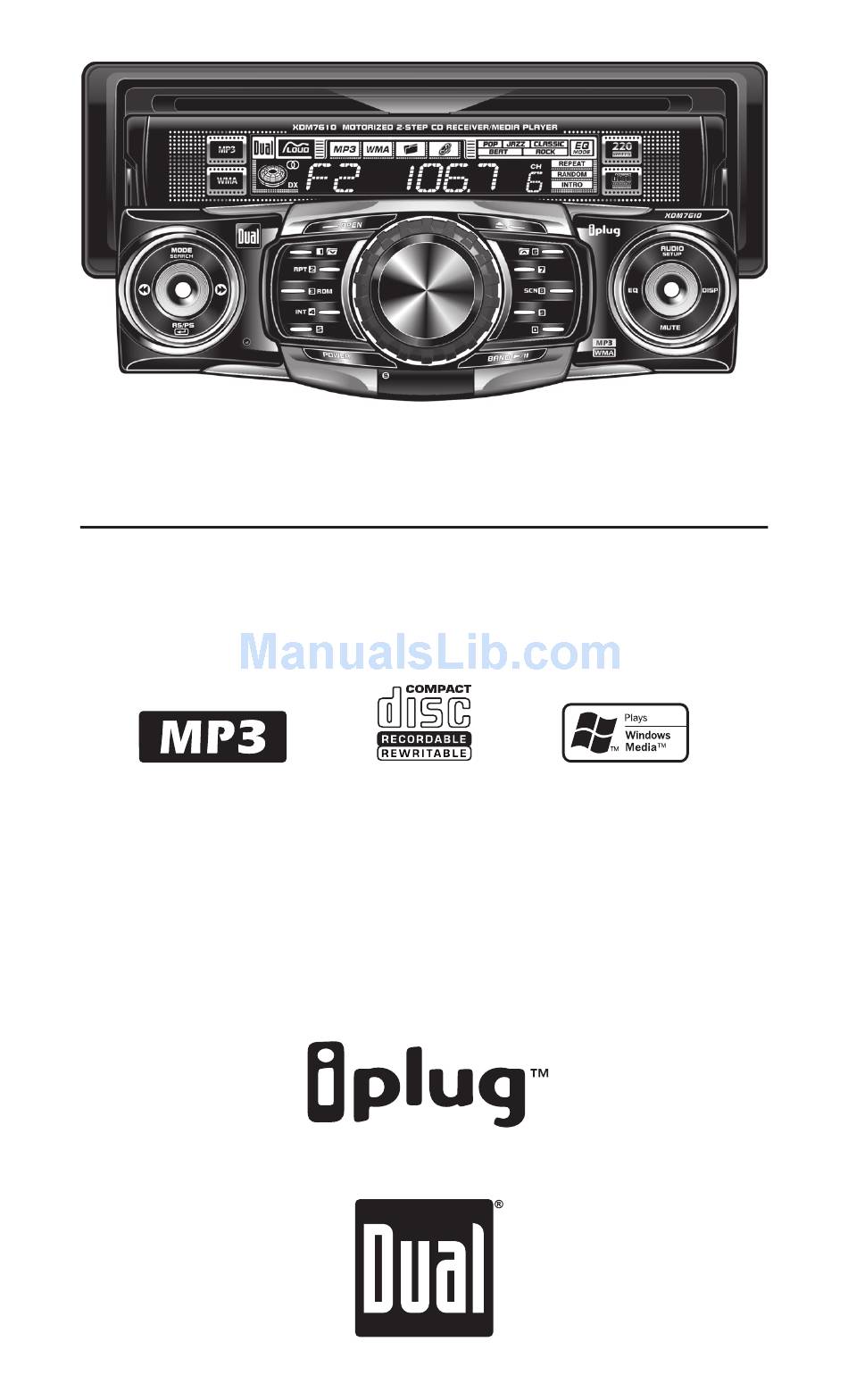

- Page 1 XDM7610 INSTALLATION/OWNER’S MANUAL AM/FM/CD/MP3/WMA Receiver with Detach Face...
- Page 2 XDM7610 Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
XDM7610 INSTALLATION Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM7610 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 5: Control Locations - Remote
XDM7610 Control Locations - Remote Open Display Preset #5 Preset #4/Intro Preset #1/Folder Down Mode/Search Tune/Track Down Band/Play/Pause OPERATION... -
Page 6: General Operation
XDM7610 General Operation Front Panel Note: Front Panel Removal Power On/Off Mode Volume Mute Programmable Turn-On Volume Preset EQ Curves Display Set the Clock 12/24-hour Clock OPERATION The front panel is semi-permanently attached during assembly. Please refer to the separate yellow instructions (before installation) to make the front panel removable. - Page 7 Power on MSG ON Message MSG OFF XDM7610 Press and hold SETUP for more than 3 seconds to access the setup menu. Press SETUP momentarily to select between the menu functions and rotate the rotary encoder left/right to adjust or activate the desired function.
- Page 8 XDM7610 General Operation - Audio Settings Audio Bass Treble Balance Fader Subwoofer Source Audio Memory Reset OPERATION Press AUDIO momentarily to select between Volume (default), Bass, Treble, Balance, Fader & Subwoofer. VOLUME BASS TREBLE Press AUDIO until BAS appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum).
-
Page 9: Tuner Operation
Local tuning is activated during the initial band scan. Press AS/PS for less than 2 seconds to scan presets 1-6 on Preset Scan the current band, pausing for 5 seconds at each. Press AS/PS again to cancel. XDM7610 OPERATION Tuner Operation or TUNE momentarily to seek the... -
Page 10: Cd Player Operation
XDM7610 CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Intro Repeat Random CD-R/CD-RW Compatibility OPERATION With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. - Page 11 WMA Icon Folder Icon Displaying Information Character Support XDM7610 When an MP3/WMA encoded disc is first inserted, “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. icon will illuminate anytime a valid MP3 encoded disc is inserted and flash in MP3 search/navigate modes.
- Page 12 XDM7610 CD Player Operation - MP3/WMA Files Refer to the following button function table when selecting, searching or navigating MP3/WMA files and folders: MP3/WMA Button Function Table Button SEARCH Preset #1 Preset #2 Preset #3 Preset #4 Preset #5 Preset #6...
- Page 13 (Up one level) AUDIO to access the previous level (up one level). *Only available on MP3/WMA discs recorded with more than one folder. XDM7610 OPERATION " will flash in the display. to initiate the selected alphanumeric search. to select the desired file or folder. If a folder is "...
- Page 14 XDM7610 CD Player Operation - MP3/WMA Files Navigating Note *Folder Access File Repeat File Repeat (Current Folder Only) Disc Random Folder Random Disc Intro Folder Intro OPERATION After navigating by direct select, alphanumeric search or file/folder navigate modes, the track number and elapsed time will be displayed by default.
- Page 15 • Maximum nested folder depth is 8 (including the root folder). • Valid characters for folder/file names are letters A-Z (all • This device can play back discs in Joliet, Romeo, and other XDM7610 Management). caps), numbers 0-9, and “_” (underscore). Some characters may not be displayed correctly, depending on the character type.
- Page 16 XDM7610 CD Player Operation - MP3/WMA Files Additional MP3/WMA Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings OPERATION An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the...
-
Page 17: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 18: Specifications
XDM7610 Specifications CD Player FM Tuner AM Tuner General Power Output: 17 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) OPERATION Frequency response: Channel separation @ 1kHz:... -
Page 19: Troubleshooting
INVALID appears The file format is incompatible on display Unit will not accept CD mechanism position out of alignment a disc CD transit screws still in place XDM7610 OPERATION Troubleshooting Cause Check connections for proper voltage (11~16VDC) Check connection to ground... - Page 20 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2006 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. NSA0406-V01...
