Summary of Contents for Dual XDMA6700

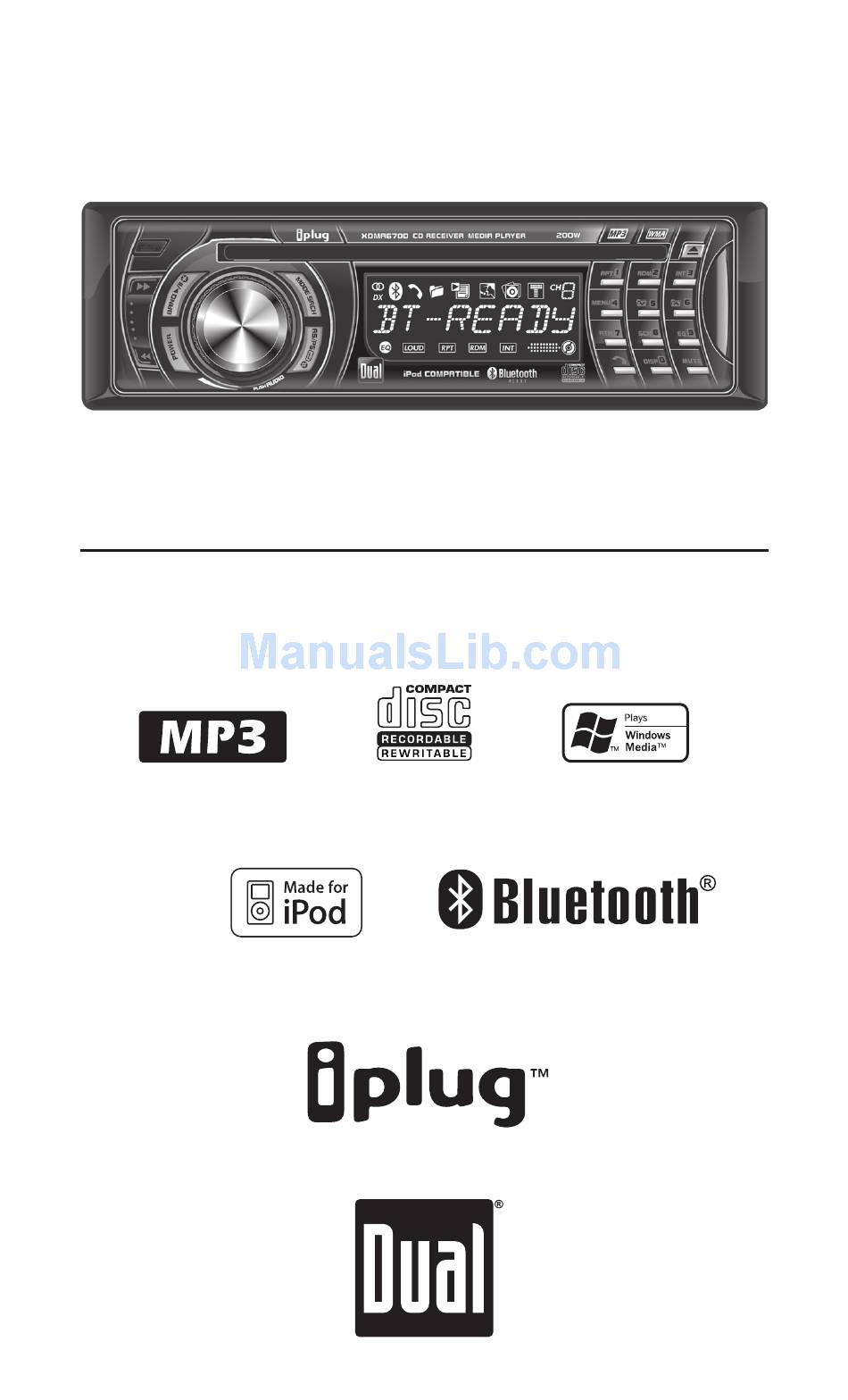

- Page 1 XDMA6700 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/iPod /Bluetooth Ready Receiver with Detachable Face ® ®...
- Page 2 XDMA6700 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
IPC2M Connection (sold separately) Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDMA6700 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations - Receiver
Eject Preset 6/Folder Up The XDMA6700 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic... -
Page 5: General Operation
XDMA6700 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-Permanent Remove trim ring, and install supplied #1 x 7/3” Phillips Faceplate Installation head screw through left side of mounting frame into faceplate. - Page 6 XDMA6700 OPERATION General Operation Display Set the Clock 12/24-hour Clock Reset Setup Menu Press DISP to select between clock and different types of information, such as radio frequency, CD track/elapsed time, or MP3/WMA/iPod song information. With the unit on, press and hold DISP until the clock begins to flash, then release.
- Page 7 Message MSG ON Demonstration DEMO ON Mode DEMO OFF XDMA6700 OPERATION General Operation - Setup Menu Disables the loudness function. Enables the loudness function. Activating this feature will enhance the bass and treble frequencies when listening to music at low volumes. Programs the unit to USA tuner spacing.
- Page 8 XDMA6700 OPERATION General Operation Audio Bass Treble Balance Fader Source Audio Memory Press rotary encoder momentarily to select between Volume (default), Bass, Treble, Balance and Fader. VOLUME BASS TREBLE Press rotary encoder until BAS appears then rotate encoder left/right to adjust ( -6 minimum / +6 maximum).
-
Page 9: Am/Fm Tuner Operation
Preset Scan Press AS/PS for less than two seconds to scan presets 1-6 on the current band, pausing for five seconds at each. Press AS/PS again to cancel. XDMA6700 OPERATION AM/FM Tuner Operation or TUNE momentarily to seek the or TUNE for more than two seconds, or TUNE ... -
Page 10: Cd Player Operation
XDMA6700 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Scan Repeat Random CD-R/CD-RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (AM, FM, auxiliary input, iPod or Bluetooth). - Page 11 XDMA6700 OPERATION CD Player Operation - MP3/WMA Files When an MP3/WMA encoded disc is first inserted, Playing an MP3/WMA Disc “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Press DISP to select between track number/elapsed time Displaying Information (default), clock, track name, directory name, title, artist and album.
- Page 12 XDMA6700 OPERATION CD Player Operation - MP3/WMA Files Refer to the following button function table when selecting, searching or navigating MP3/WMA files and folders: MP3/WMA Button Function Table Button SRCH Preset #1 Preset # Preset #3 Preset # Preset #5 Preset #6 Key #7 Key #8 Key #9 Key #0...
- Page 13 (up one level). *Only available on MP3/WMA discs recorded with more than one folder. XDMA6700 OPERATION " will flash in the display. to initiate the selected alphanumeric search. to select the desired file or folder. If a folder is "...
- Page 14 XDMA6700 OPERATION CD Player Operation - MP3/WMA Files Navigating Note *Folder Access File Repeat File Repeat (Current Folder Only) Disc Random Folder Random Disc Intro Folder Intro After navigating by direct select, alphanumeric search or file/folder navigate modes, the track number and elapsed time will be displayed by default. Press DISP momentarily to select clock, track name, directory name, title, artist and album.
- Page 15 CD Player Operation - MP3/WMA Files Media Compatibility Playback Order Compatible Recording Formats XDMA6700 OPERATION The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 16 XDMA6700 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
-
Page 17: Ipod ® Operation (Optional)
Displaying Information Search Functions Playlist Search Artist Name Search Album Name Search Song Name Search Song Select XDMA6700 OPERATION iPod Operation (Optional) ® Connecting an iPod requires the IPC2M cable (sold seperately). Once connected, press MODE until "IPOD" appears in the display. The iPod will automatically begin playback. If a song is playing on the iPod before it is connected, it will continue to play. -
Page 18: Operation (Optional)
XDMA6700 OPERATION iPod Operation (Optional) ® Fast Forward and Reverse Pause Intro Repeat Random Character Support iPod Compatibility Press and hold song. / II to temporarily stop playback. Press / II again to resume playback. Press Press INT to play the first 10 seconds of each song. -
Page 19: Bluetooth ® Operation (Optional)
Overview Connecting a Bluetooth device requires first connecting the Dual BTM60 module (sold separately). When connected to a Dual Bluetooth Ready head unit, the BTM60 supports the HFP (hands-free profile), ADP (advanced audio distribution profile) and AVRCP (audio video remote control profile). - Page 20 XDMA6700 OPERATION Bluetooth Operation (Optional) ® Function Press Input the desired phone number using the 0-9, *, # buttons on the Making a Phone Call head unit front panel. Press A phone call may also be placed from your mobile device using the keypad, phone book or speed dial.
-
Page 21: Bluetooth ® Settings (Optional)
NOTE: If you are experiencing problems with these functions, try playing music from the mobile device. On some mobile devices, it may be necessary to control the music from the device. XDMA6700 OPERATION Bluetooth Options Enables the BTM60 Bluetooth Interface Module (sold separately). -
Page 22: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 23: Troubleshooting - General
Bluetooth device is not compatible with the BTM60 Reset the BTM60 to clear the memory of previously paired mobile devices and to clear BTM60 reset recent dialed/missed/received phone calls from memory XDMA6700 OPERATION Troubleshooting - General Cause Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse... -
Page 24: Specifications
Dimensions: 7" x 7" x 2" (178 x 178 x 51 mm) Design and specifications subject to change without notice. CEA-006 Power Standard Specifications (reference: 1.VDC +/- 0.V, 0Hz~0kHz) Dual Electronics Corp. Toll Free: 1-866-38-576 www.dualav.com ©007 Dual Electronics Corp. All rights reserved. NSA0307-V01 10Hz-20kHz >65dB 10dBf 40dB 30Hz-13kHz 30Hz-2.2kHz...
