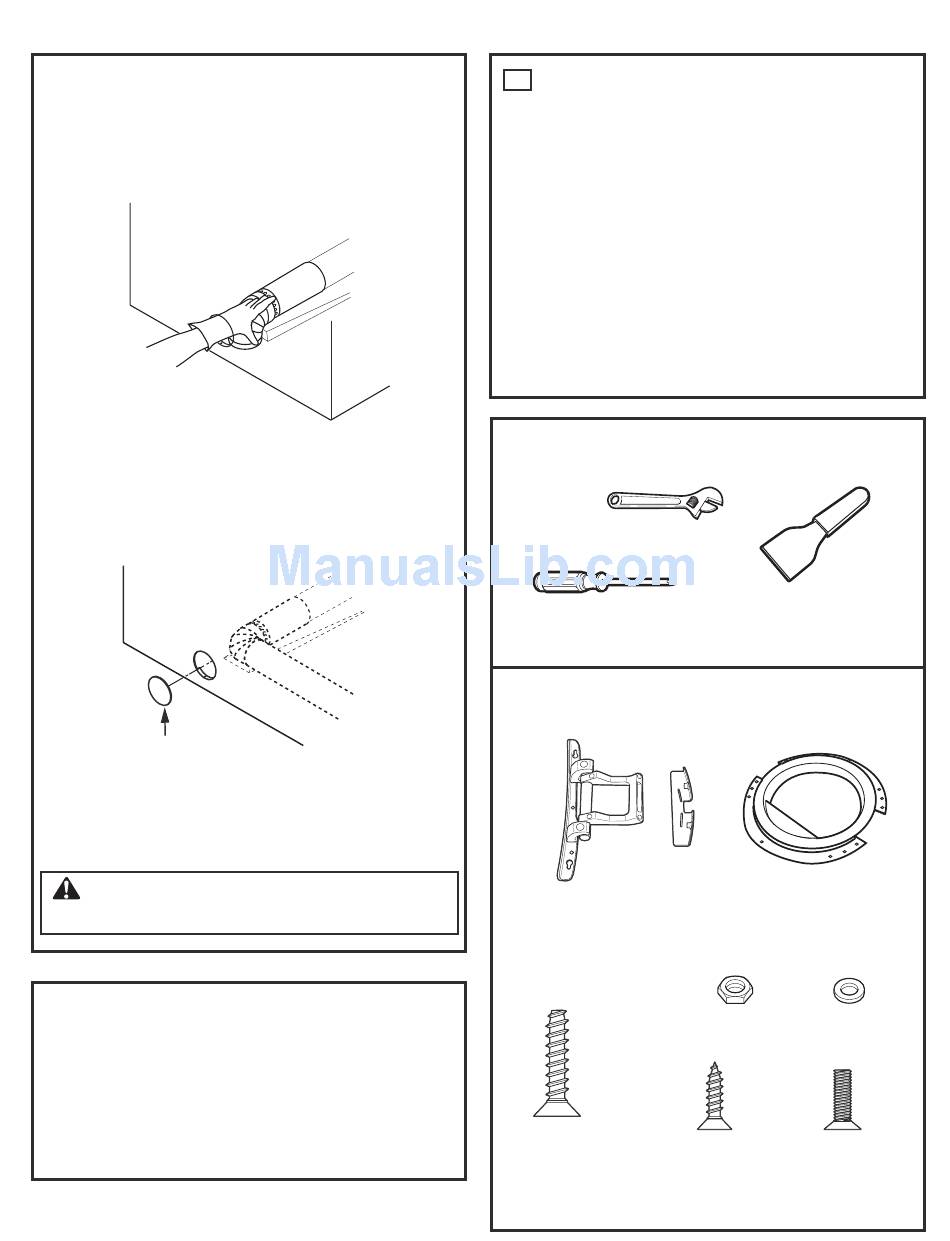

ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
• Insert the elbow through the rear opening and connect it to
the dryer internal duct.
• Apply duct tape on the joint between the dryer internal duct
and elbow, as shown on page 7.
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR OF
CABINET
PLATE
(KIT WE1M454)
Connect standard metal elbows and ducts to complete the
exhaust system. Cover back opening with a plate (Kit WE1M454)
available from your local service provider. Place dryer in final
location.
WARNING - NEVER LEAVE THE BACK
OPENING WITHOUT THE PLATE.
TO REGISTER YOUR DRYER
CALL TOLL-FREE
1-888-269-1192
Prompt registration confirms your right to protection under the
terms of your warranty.
www.GEAppliances.com (US)
For Questions on Installation, Call: 1-800-626-2003 (US) or
1-800-561-3344 (Canada).
500A436P010
Installation Instructions

13 REVERSING THE DOOR SWING

IMPORTANT NOTES
• Read the instructions all the way through before starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them in
• Provide a non-scratching work surface for the doors.
• Normal completion time to reverse the door swing is 30-60
IMPORTANT: Once you begin, do not move the cabinet until
door-swing reversal is completed.
These instructions are for changing the hinges from the right side
to the left side - if you ever want to switch them back to the right
side, follow these same instructions and reverse all references to
the left and right .
TOOLS YOU WILL NEED
DOOR PARTS
8
Pub # 31-16229
the wrong places.
minutes.
Cresent Wrench
(Adjustable)
Phillips-Head
Screwdriver
Hinge
Hinge Assembly
Cover
Tapping
Large Tapping
Screw (#8) ... 2
Screw (#10) ... 6
Putty Knife or Thin-
Blade Screwdriver
Plastic Cover
Nut (#8) - 2
Washer - 2
Machine
Screw (#8) ... 6
