AUTOCAD 2010 PREVIEW GUIDE
when using dynamic input. In addition, the playback user messages have been streamlined for increased
clarity.
A new command enables you to establish base points at specified locations in your action macro. You can
access the new ACTBASEPOINT command as a button in the Action Recorder panel or as a right-click menu
option in the Action Tree.

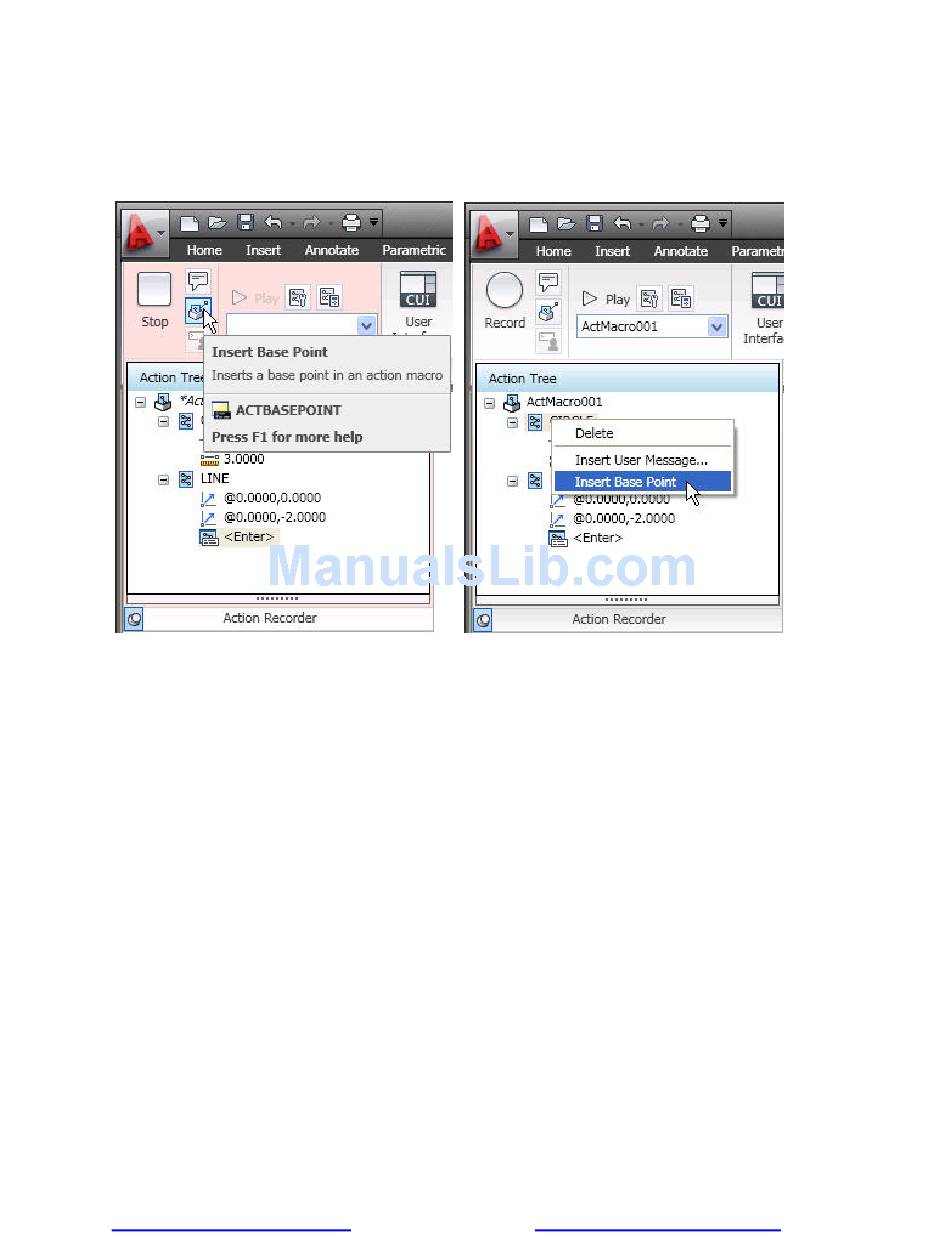

Figure 81. Action Recorder, Insert Base Point
A new Action Macro Manager enables you to copy, rename, modify, and delete action macro files from a central
location. An Options button in the lower left corner provides quick access to the Action Recorder settings on the
Files tab of the Options dialog box. You can launch the Action Macro Manager from the Action Recorder panel
in the ribbon as well as from the right-click menu (Action Recorder>Play>Manage Action Macros) when no
objects are selected.
