AUTOCAD 2010 PREVIEW GUIDE

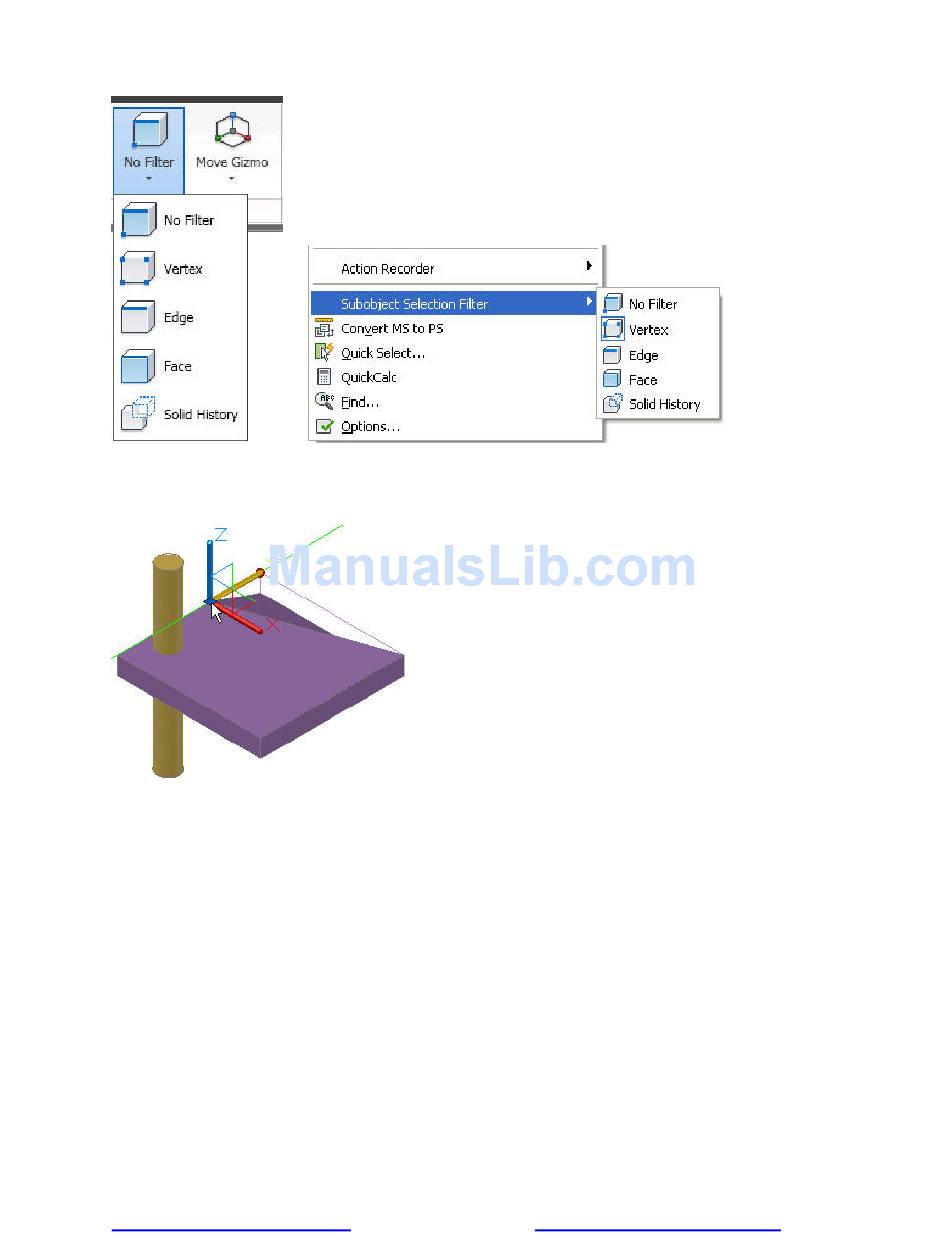

Figure 70. Subobject selection filters
With the subobject selection filter set to vertex, for example, you can ensure that when you press CTRL and
pick on the corner of an object, AutoCAD will select the vertex rather than the edge.
Figure 71. Subobject editing
The Solid Editing panel of the Home tab includes tools to perform unions, subtractions, interferences,
intersections, and imprinting. These tools, which were previously available only for solid objects, now work on
surfaces as well.
Free-Form Design
The 3D design capabilities in AutoCAD have been significantly improved with the introduction of free-form
design. New tools in AutoCAD 2010 enable you to create and modify meshes that are free-form and flowing.
www.autodesk.com/autocad
http://heidihewett.blogs.com/
40
