AUTOCAD 2010 PREVIEW GUIDE

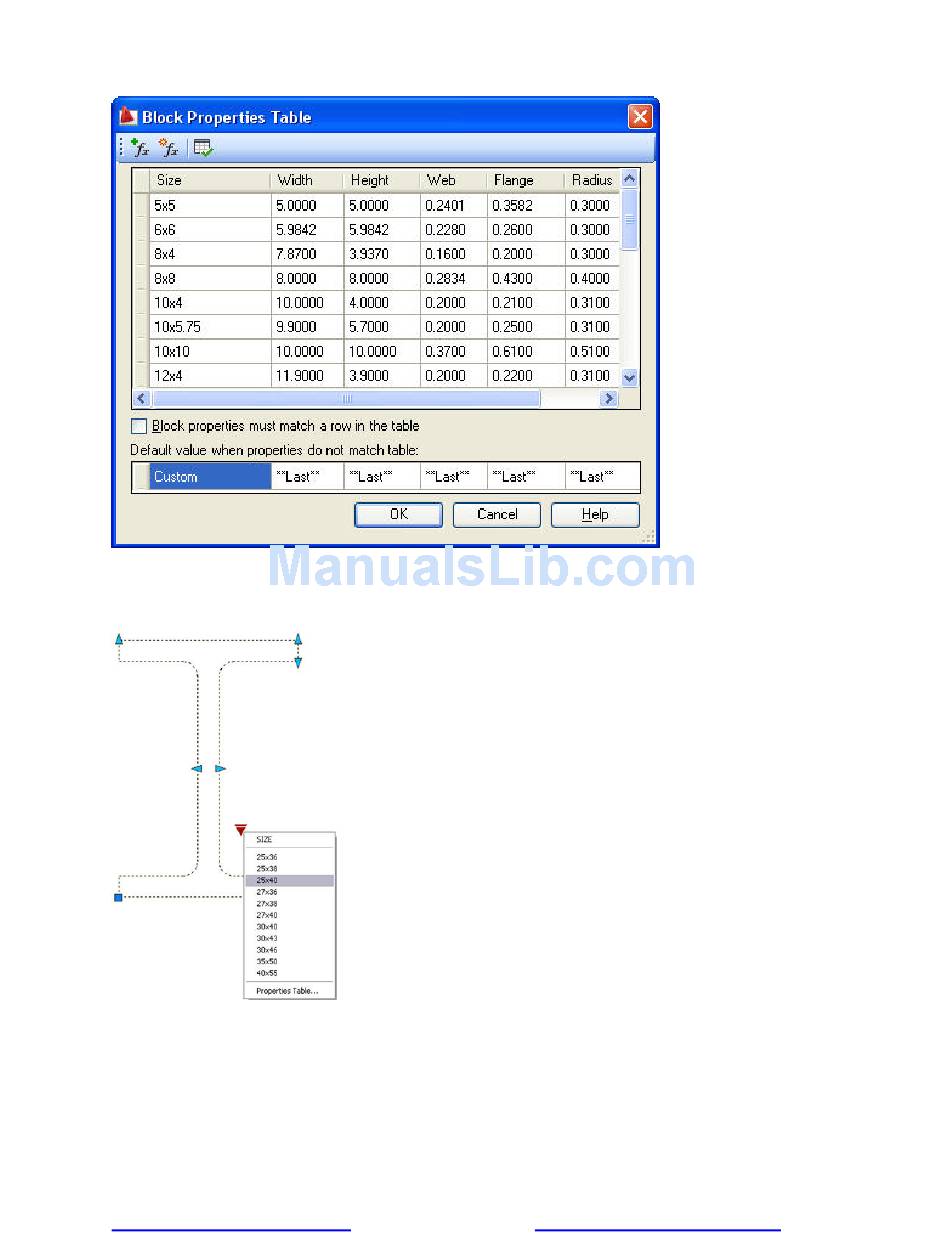

Figure 28. Block Properties Table
A menu grip on the inserted block reference enables you to switch between different sets of values or rows in
the table.
Figure 29. Block Properties Table grip
Selecting "Properties table.." from the grip menu displays the Block table, enabling you set the block to the
values defined by any row in the table.
Action Bars
The display and positioning of Action objects in the Block Editor is enhanced to be consistent with Constraint
bars. Action objects are no longer placed individually in the Block Editor; rather they are automatically grouped
www.autodesk.com/autocad
http://heidihewett.blogs.com/
18
