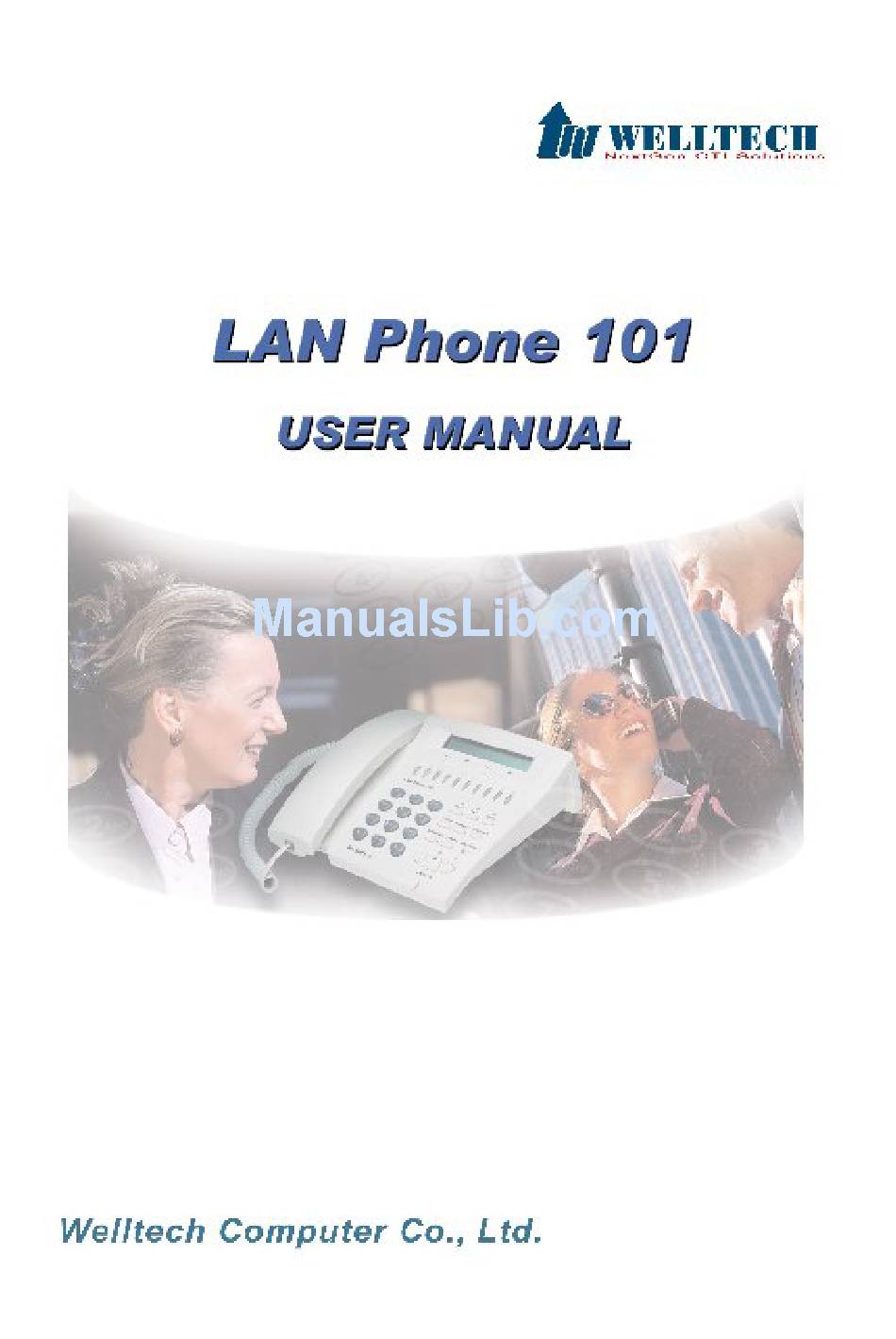

WELLTECH LAN PHONE 101 H.323 Manual

Hide thumbs Also See for LAN PHONE 101 H.323:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAN PHONE 101 H.323 and is the answer not in the manual?

Questions and answers

Related Manuals for WELLTECH LAN PHONE 101 H.323

Summary of Contents for WELLTECH LAN PHONE 101 H.323

  • Page 2 Notice © Copyright 2002 Welltech Computer Co., Ltd. All intellectual property rights in this publication are owned by Welltech Computer Co., Ltd. and are protected by Republic of China copyright laws, other applicable copyright laws and international treaty provisions. Welltech Computer Co., Ltd. retains all rights not expressly granted.

  • Page 3: Table Of Contents

    15. [support] command ......................28 16. [bureau] command .......................29 17.[rom] command........................30 18.[passwd] command .......................32 Chapter 4 Upgrade the LAN Phone 101 ....................33 Download Procedure......................33 1.LCD Panel Control......................33 2.Remote Control: Telnet ....................34 Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 4: Chapter 1 Introduction

    Document Ver. 1.5 Chapter 1 Introduction The Welltech LAN Phone 101 is a full-featured IP-based telephone system, which provides VoIP service on LAN or any IP based environment. By using IP environment for voice communication, company or individual can save lots of expenses and make data and voice network converged.

  • Page 5: Product Description

    LAN Phone 101 User Manual Guide Document Ver. 1.5 Product Description 1.Features and Specification Basic Features:              Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 6 2 lines, 24 character Dot Matrix display.  Indicator messages of HOLD, MUTE, PSTN, Directed Line 1~10.  Display current date and time.  Display of call duration. Audio features:   Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 7 Dial tone, busy tone, call-holding tone and ring-back tone Firmware Upgrade:  Firmware version displayed on LCD.  Two ways to upgrade firmware: - Download by KEYPAD configuration. - Download by Telnet. Management Features:  Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 8: Appearance

    1-10 (please refer to LCD configuration-Phone Address Book or Advanced Configurations via Telnet-[pbook] command ).  Number 1 –10, * and #: The function is as the same as the general phone set. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 9  SPEAKER: Speaking without picking up handset. Note: All function keys mentioned above (except Number 1 –10, * and # ) are effective only in IP Phone mode. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 10 10 mbps/100mbps, LED of 10/100 will light off/on . 3.Specification of connector 1 Ethernet Port Ethernet port is for connecting LAN Phone to network, transmit rate supports 10/100 Base-T. Ethernet connector LAN Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 11 LAN Phone 101 User Manual Guide Document Ver. 1.5 2 RJ11connector RJ11 connector is for connecting LAN Phone with PSTN. RJ11connector Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 12: Chapter 2 Operating Procedure - Lcd Display Configuration

    PSTN 10:10:10 AM Press  or  to enter into Configuration Mode and then press OK Bottom. There are ten selections for configuration. Quick Setup(mandatory) Connect Configuration (mandatory) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 13: Lcd Configuration

    Please input IP address as format :xxx.xxx.xxx.xxx. Please Enter Subnet Mask IP: User has to press the subnet mask which meets IP Address on the LAN Phone keypad. Please Enter Gateway IP: Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 14 If user makes sure each configuration is correct, press OK then LAN Phone will reboot or user can press C to jump out this command. 15. After reboot, user can start to use LAN Phone. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 15 GK, P2P and FXO. The default mode should be in GK mode. When user would like to connect via P2P mode, the LAN Phone 101 must change as well. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 16 Busy When LAN Phone 101 is in busy status, the incoming call will be directly forwarded to the assigned phone number. No response Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 17 Delete the record in the phone address book. Note: When key in IP address in Pbook table, please do not add 0 before IP address(ex.10.1.1.1 please do not key in 010.001.001.001). 8. Firmware Upgrade Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 18 LCD panel to operate and verify it. 10. Reboot (mandatory) It is necessary and important for user to reboot it after any configurations has been made to the LAN Phone 101. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 19: Chapter 3 Advanced Configurations Via Telnet

    3.User who changes any configuration needs to do the commit command then reboot command. 1. [help] command Type help or man or ? to display all the command lists. The following figure is shown all commands of LAN Phone 101. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 20: Quit] Command

    It is authorized for the user whose login name is “root” only. 5. [commit] command Save any changes after configuring the LAN Phone 101. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 21: Ifaddr] Command

    5.-ipsharing: If LAN Phone 101 is behind a IP-sharing , user can enable IP sharing function and specify public IP address.(ifaddr –ipsharing 0/1 “public IP address of IP sharing” , 0 for disable and 1 for enable) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 22: Time] Command

    Command ping can test the IP address which is reachable or not. Usage: ping “xxx.xxx.xxx.xxx(IP address)” The message will display packets transmitting condition or no answer from the IP address. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 23: Pbook] Command

    Document Ver. 1.5 9. [pbook] command The command is for Peer-to-Peer Mode use only. Therefore, Welltech VoIP products such as LAN Phone 101 that support Peer-to-Peer Mode are also available to be addressed on the LAN Phone 101 phone book.

  • Page 24: Sysconf] Command

    1 for “OK” button , 2 for “#” button , 3 for “ ” button ) 5.-h450:Enable or disable H.450 related features, which include transfer, hold and forward. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 25: H323] Command

    3.In P2P mode, please dial “#” after press IP address(ex.10.1.1.1 please dial 10*1*1*1#) or e.164 of Phone book(Please refer to chapter 3.9 Pbook command). Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 26: Voice] Command

    6. -echo: echo canceller can be made to each specified port. The default value is on to 6 ports. 7.-mindelay:set minimum delay of jitter buffer(0~150) 8.-maxdealy:set maximum delay of jitter buffer(0~150) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 27: Tos] Command

    10. -rtcpthruput : configure RTCP packets as normal throughput or high throughput 11. -sigreliab : configure signaling packets as normal reliability or high reliability 12. -rtpreliab : configure RTP packets as normal reliability or high reliability Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 28: Tone] Command

    0. Furthermore, unit of on/off time is 1/100 second, and suggest to keep level as default value (8).User can also increase the value of level to increase the volume. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 29: Support] Command

    2.-tunnel: enable or disable H.245 tunnel function.(support –tunnel 0/1 , 0 for disable and 1 for enable) 3.-h245fs:set if open H.245 separate channel after fast start or not. (support –h245fs 0/1 , 0 for open and 1 for not.) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 30: Bureau] Command

    2. -hold: set hold tone generation on or off. If other terminals support H.450 hold function, and execute hold function when connecting with LAN Phone 101 , user will hear hold tone from LAN Phone 101. (0 for off ,1 for on) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 31: Rom] Command

    -firmware upgrade-Set file Server IP. 7. –method: specify download method to be TFTP or FTP(0 for TFTP.1 for FTP) 8. –ftp: specify user name and password for FTP download method Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 32 –app –s 192.168.1.1 –f lp.109 (If –server is specified , can just type rom –app –f lp.109) Command rom –print to show current version installed in LAN Phone 101. Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109...

  • Page 33: Passwd] Command

    5. rom –boot2m : only “root” users can upgrade LAN Phone 2mb firmware. Furthermore, there is permanent login and password for LAN Phone 101: login:”mac”, password:”Mac address of Lan Phone(Please refer to label at the back of LAN Phone 101)” Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...

  • Page 34: Chapter 4 Upgrade The Lan Phone 101

    Document Ver. 1.5 Chapter 4 Upgrade the LAN Phone 101 LAN Phone 101 supports two methods to upgrade the new version released from Welltech Computer Co. Both methods are necessary to prepare the TFTP program on the host PC as TFTP server.

  • Page 35: Remote Control: Telnet

    For example: User prepares to upgrade the latest app rom file – wtlp.103c, the TFTP server is 192.168.4.101. rom –app –s 192.168.1.1 –f lp.109 (If –server is specified , can just type rom –app –f lp.109) Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
  • Page 36 LAN Phone 101 User Manual Guide Document Ver. 1.5 Copyright (c) 2002 WellTech Computer Corporation LAN Phone Ver 109 Release 2002/06/07...
