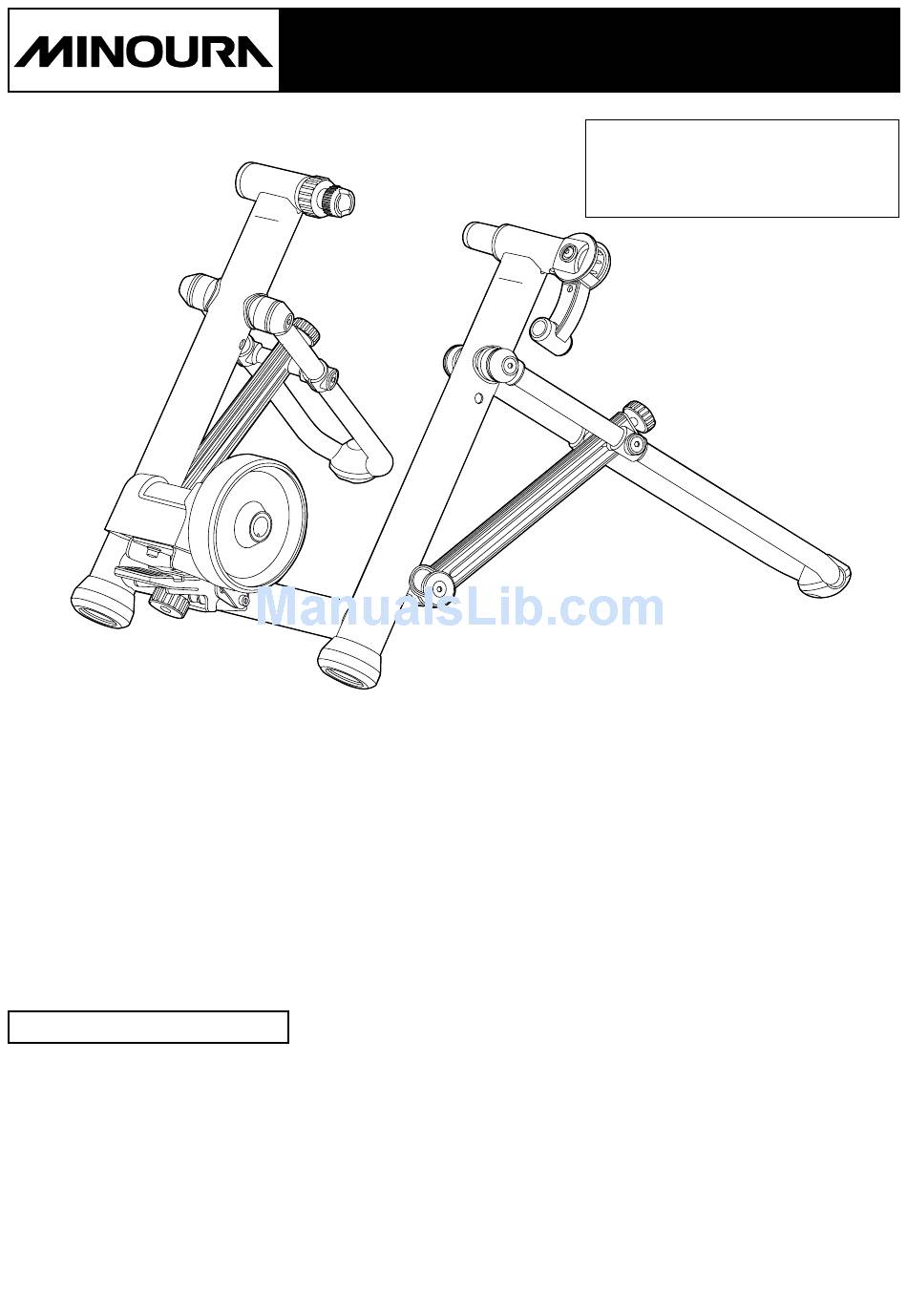

Introduction
Thank you for purchasing the Minoura V270 indoor bicycle trainer.
The V270 incorporates Minoura's a new, patent pending Advanced-Magturbo Technology (AMT) on the
flywheel that by design it simulates 35% heavier (= more effective) than its actual weight.
The new NEODYMIUM magnet is 4x stronger than typical Ferrite magnets and offers a much wider range
of resistance from low to high all while providing equal step differentials to simulate real road riding.
The exclusive U-shape legs are lightweight but more stable than other trainers weighing much more.
And each leg can be adjusted +/- 10 mm individually to compensate for uneven surfaces.
Read this manual carefully and keep it for future reference.
For More Information
MINOURA NORTH AMERICA
(for U.S. residents ONLY)
Phone: 1-510-538-8599
Fax:
1-510-538-5899
Email: support@minourausa.com
indoor bicycle trainer
instructions manual
If you need help, please contact the shop first where you originally
purchased this product or call the distributors in your own country.
The distributors list can be found on our web site.
MADE IN JAPAN
V270
Applicable Tire Size Capacity:
from 24-inch to 700x40c
(Max Wheel Outer Diameter = 704 mm)
MINOURA JAPAN HEADQUARTERS
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web: www. minoura.jp
(version 2.3 2011/1)
Advertisement
Related Manuals for MINOURA V270
Summary of Contents for MINOURA V270
-
Page 1: For More Information
Introduction Thank you for purchasing the Minoura V270 indoor bicycle trainer. The V270 incorporates Minoura's a new, patent pending Advanced-Magturbo Technology (AMT) on the flywheel that by design it simulates 35% heavier (= more effective) than its actual weight. The new NEODYMIUM magnet is 4x stronger than typical Ferrite magnets and offers a much wider range of resistance from low to high all while providing equal step differentials to simulate real road riding. - Page 2 How To Assemble U-Leg Required Tools: 2 x 5mm Hex Wrench (supplied) for 700C ~ 29" for 24" ~ 26" Choose the pivot hole for your bike size on the Attach the U-Leg to the main pillar. main pillar. Check the plastic end plugs on the U-Leg are fully inserted and aligned to the hole.
- Page 3 How To Install Mag Unit & Foot Step Mag Resistance Unit Required Tools: 1 x 5mm Hex Wrench (supplied) 1 x 10mm Spanner (not supplied) The Mag resistance unit and Foot Step now need to be installed to the frame. Attach the Foot Step onto the bracket on the Step-Bar first, put the Mag unit over the Foot Step, then tighten both brackets together with the pivot bolt.
- Page 4 Placing V270 on Floor Fully open the legs and place on a flat and horizontal floor. To open the U-Leg, grab the main frame and the rubber cap on the U-Leg. Do NOT pull the Alloy Leg Guide directly, otherwise it may be bent or damaged.
- Page 5 How To Mount Your Bike V270's coupling position is pre-adjusted in the factory to fit the 125mm standard rear hub width. If it is too loose or too tight to your bike, or if you use different width of rear hub like a track race bike, adjust the left side coupling as precisely as possible for maximum stability.
- Page 6 The Foot Pedal is a convenient device to engage/release the drive roller to/from the rear tire quickly, and it keeps the proper pressure of the drive roller to the tire without adjusting everytime you use the V270. To maintain the tire life as long as possible, you should adjust correctly.
- Page 7 Required Tool: How To Operate Remote Shifter 1 x M4 Hex Wrench V270 comes with a convenient remote shifter device. By installing it on your handlebar or stem, you can adjust the resistance level in 7 Lever levels without getting off the bike.
- Page 8 V270-2 Schematics UF-9 UF-8 UF-6 GM-22 UF-7 UF-10 UF-11 UF-10 UF-1 UF-14 UF-12 UF-5 UF-2 UF-4 UF-15 UF-13 GM-7 GM-9 UF-3 GM-10 GM-6 GM-11 GM-8 GM-4 GM-5 GM-12 GM-3 GM-2 GM-13 GM-1 GM-14 CAUTION Do NOT touch GM-2 "Alloy Rotor"...
