Warranty Period : 1 year

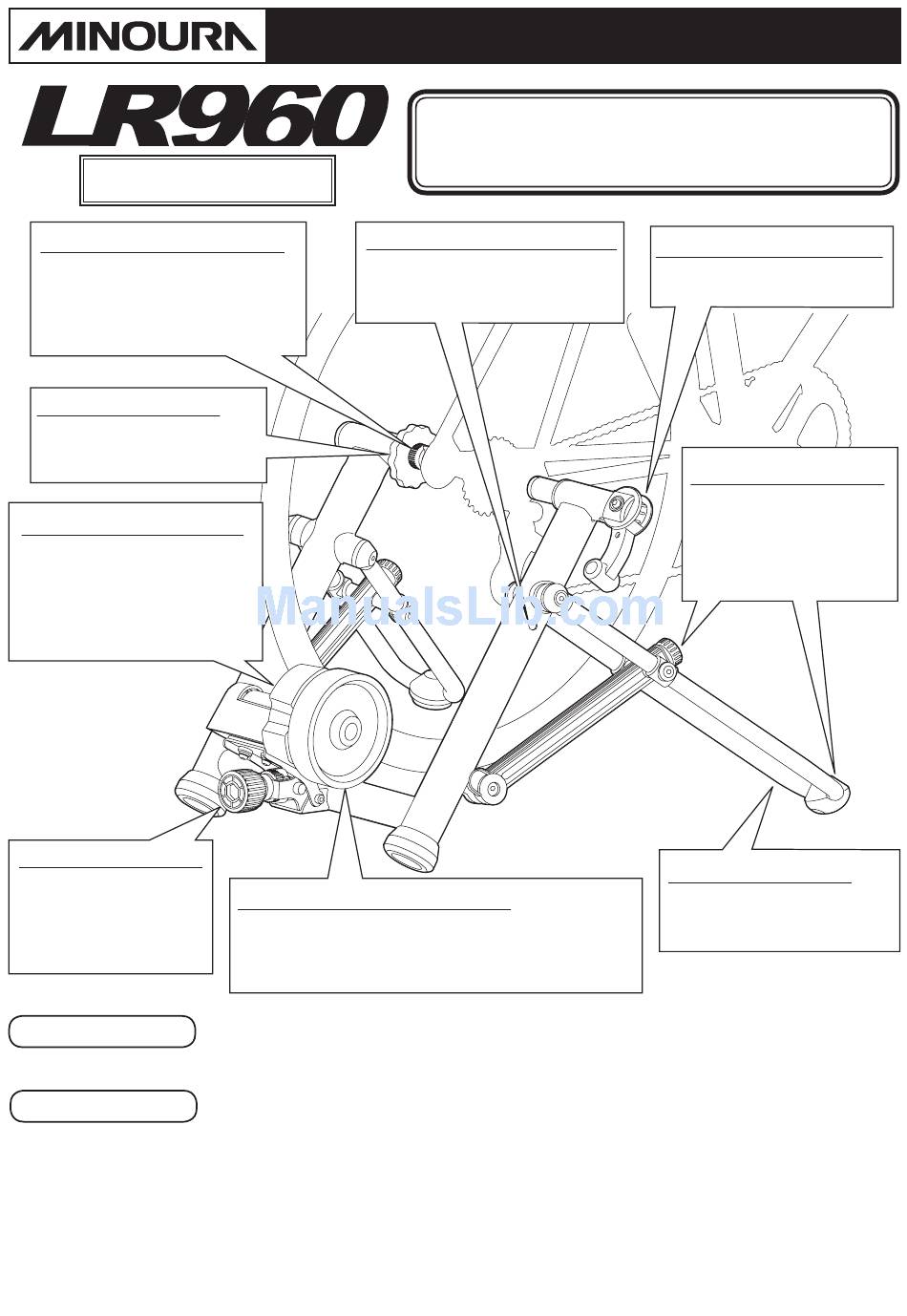

Bolt Type Left Side Coupling
Fits 120 – 145 mm standard hub
width. For quick release type hub
only. For fixed nut hub, replace
to the optional "Longer Left Side
Coupling Bolt" (SKU:400-1285-00).
Large Alloy Lock Nut
Replace from plastic to alloy.
Large diameter makes easier
operation.
Tandem Magnet Type Unit
A world's first. Primary magnet
is engaged for the first 7 levels
then the second magnet kicks in
for the next 6 levels.
Gives you the widest range of
resistance of any trainer.
Roller Pressure Knob
Double-threaded system
enables quick and easy
operation to engage/
release the roller to/from
the rear tire.
Please Note
Contact
MINOURA NORTH AMERICA
(for U.S. residents ONLY)
Phone: 1-510-538-8599 (8 am - 5 pm, Mon - Fri, PST)
Fax:
1-510-538-5899
Email: support@minourausa.com
LiveRide
U-Leg Hole for Smaller Wheel
Use this hole for all 24", 26", and
650c wheels to keep the bike
horizontal.
Lighter Flywheel = More Power
Our patented flywheel weighs less for greater
portability but performs as well as a flywheel weighing
35% more. The key is the inside stair-step design for
perfect power transmission when you need it.
This trainer must be used with a completely smooth (no knobs or raised tread) tire.
Failure to do so will ruin the mag unit, your tire, and void any possible warranty.
If you need help, please contact the shop first where you originally purchased this product
or call the distributors in your country. The distributors list can be found on our web site.
When you cannot get enough service, you can contact us;

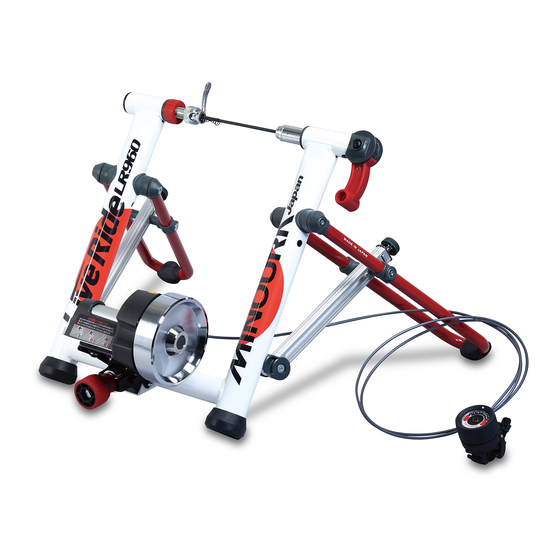

LR960
Applicable Tire Size Capacity:
any 24-inch – 700 x 40c
(Max Tire Outer Diameter = 712mm)
MINOURA JAPAN HEADQUARTERS
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web: www.minoura.jp
instructions manual
(ver.2.0 2015/7)
(ETRTO 42-622)
Quick Release Hub Clamp
Mounts/dismounts your bike in
seconds.
Micro-Adjustable Legs
By turning the dial, the legs
can be adjusted +/- 10 mm
to accommodate uneven
surfaces for complete
trainer stability.
Tubular U-shape Leg
Not just for unique design, but
reduces weight and provides
great stability.
Made in Japan
