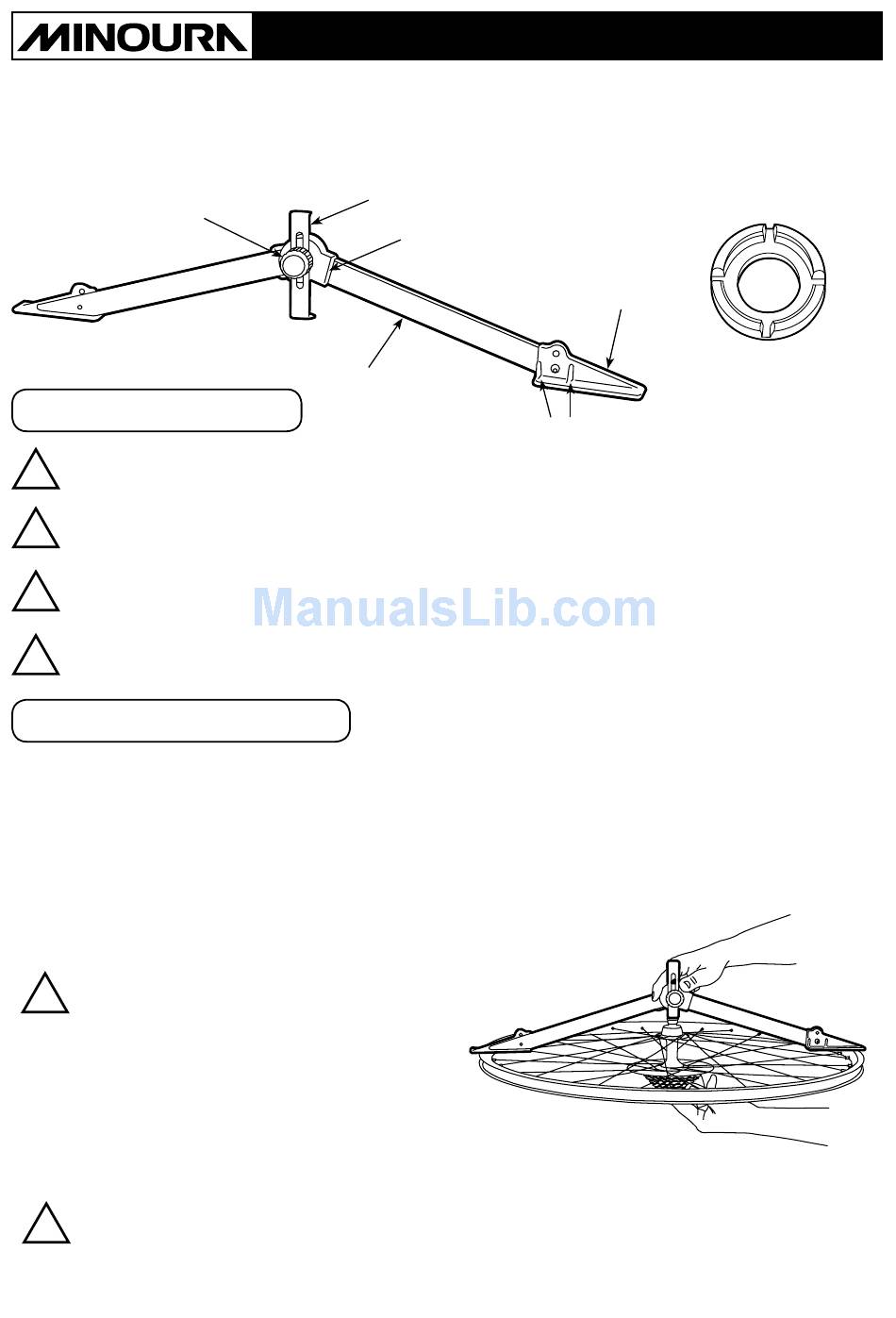

MINOURA FCG-310 Instruction Manual

This is the instructions for the tools contained in the True-Pro Combo kit.
FCG-310 is the tool to check if the wheel is exactly symmetrical for better ride. You can use FCG-310 on most size
of wheels between 18" and 27"/700c. NW-300 is the spoke nipple wrench for twisting nipples on 14G/15G spokes.
Please read this instructions manual carefully before use to understand how you will do on your bicycle wheel.
Knob Bolt
<FCG-310>
IMPORTANT NOTES
FCG-310 is the measuring gauge for bicycle wheel only. Do not use it for any other
!
purpose than instructed.
FCG-310 is a precision tool so please handle it with care. Do not hit or bend the frame
!
and gauge plate.
Be careful not to pinch your fingers when openning or closing the FCG-310.
!
Insert the NW-300 fully to the nipple when tightening. Use exactly same size of wrench
!
without any wag to protect the nipple. The size indication is just for your reference.
How To Use FCG-310
To open the FCG-310, loosen the Knob Bolt then open the Frame with both hands.
1.
Look for the grooves on the inside of the Ratches that fix the angle when the Frame is opened.
2.
Extend until the grooves meet and lock into place by pushing them each other.
Turn the Gauge Plate counter-clockwise to locate the hole at the down end side.
3.
Put the Gauge Plate on the flat groove on the outside of the Ratch.
Tighten the Knob Bolt, but you don't need to tighten it so firmly at this moment.
4.
If the Gauge Plate doesn't fit to the flat
!
groove on the Ratch correctly, you won't
be able to measure properly. And also
the Gauge Plate will have to be bent.
Please be sure that the Gauge Plate
cannot be replaced.
Attach the FCG-310 to the wheel as shown in Fig. A.
5.
While keeping both Rim Guides touching the rim, loosen the Knob Bolt to adjust the Gauge
Plate position, then tighten the Knob Bolt when the Gauge Plate end touches the hub.
At this moment, make sure the following points;
!
• Both Rim Guides touch the rim.
• The wheel axle is running through the hole on the Gauge Plate, and the Gauge Plate
touches the hub.
FCG-310
&
Gauge Plate
Ratch
Frame
NW-300
instructions manual
Rim Guide
Positioning Lib
14G
15G
15G
14G
<NW-300>
(Fig. A)
