Dometic 3200 Series Owner's Manual

Dometic 3200 Series Owner's Manual

Gravity discharge toilet
Hide thumbs Also See for 3200 Series:
Table of Contents

Advertisement

Quick Links

SeaLand
®
GRAvITy dISchARGe ToILeT
oWNeR'S MANuAL
SeaLand

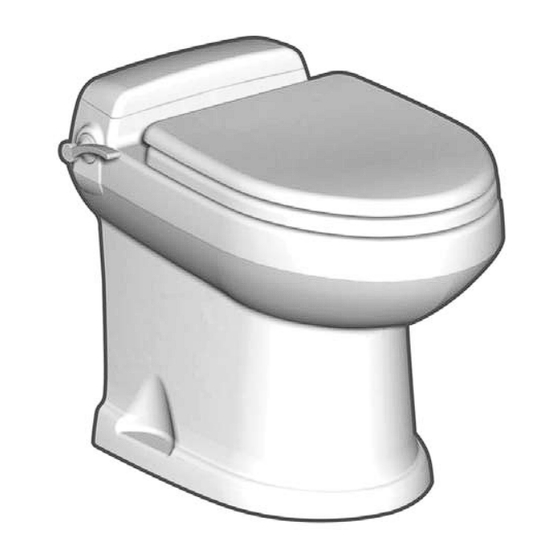

3200 Series All-ceramic Toilets
®
!
WARNING
This manual must be read and under-
stood before installation, adjustment,
service, or maintenance is performed.
Modification of this product can result
in property damage.
dometic Sanitation corporation
328 State Rt 226, PO Box 38
Big Prairie, OH 446
SeaLand Product Customer Service: -800-32-9886
(8:00 a.m. - 5:00 p.m. ET)


Advertisement

Table of Contents
loading

Related Manuals for Dometic 3200 Series

Summary of Contents for Dometic 3200 Series

  • Page 1 SeaLand ® GRAvITy dISchARGe ToILeT oWNeR’S MANuAL SeaLand 3200 Series All-ceramic Toilets ® WARNING This manual must be read and under- stood before installation, adjustment, service, or maintenance is performed. Modification of this product can result in property damage. dometic Sanitation corporation...

  • Page 2: Table Of Contents

    The model identification label is located on the inside wall of the toilet under the access cover. It will show the model number and serial number. Concerto is a trademark, and SeaLand is a registered trademark of Dometic Corporation. Deodorants and Special Tissue ...8 Flush Mechanism Components ...9 Troubleshooting ...0...

  • Page 3: Toilet Dimensions

    ToILeT dIMeNSIoNS ModeL 3210 INSTALLATIoN INSTRucTIoNS System Requirements: • 2 GPM (0.6 lpm) or larger water pump. • 1/2-inch (12.7 mm) water line terminating in 1/2-inch MPT fitting (to connect to toilet water supply hose). • 4-bolt floor (closet) flange. SeaLand flanges available include 3-inch spigot, socket, MPT, or 45-degree swivel socket.
  • Page 4 STEP 5a: For through-the-floor water line and electrical wires, mark another centerline 6 inches (52 mm) from the back wall (fig. 4). fig. 4 STEP 5b: For through-the-wall water line and electrical wires, mark a centerline 8 inches (203 mm) up from the floor centerline (fig.
  • Page 5 STEP 9: WITh The eLecTRIcAL PoWeR off, route #14 gauge stranded copper wire from 12 VDC ground and positive 2 VDC from the fuse panel through a 2-amp fuse or circuit breaker. Leave at least 2 inches (305 mm) of wire for connecting to toilet (fig. 9). STEP 0: Connect the holding tank to the bottom of the discharge flange.

  • Page 6: Toilet Operation

    STEP 7: Connect the positive (+) 2 VDC lead to the red wire and the negative (-) lead to the black wire (fig. 8). Fig. 18 STEP 8: ReMove Red cAP fRoM MIddLe of fLANGe AdAPTeR befoRe fINAL ToILeT INSTALLATIoN. IMPoRTANT –...

  • Page 7: Proper Cleaning And Maintenance

    PRoPeR cLeANING ANd MAINTeNANce Clean your SeaLand toilet regularly for maximum sanitation and operational ef- ficiency. You can clean it just as you would a household toilet. do not use caustic chemicals, such as drain-opening types, as they will damage the seals. boWL cLeANING: For stubborn stains, use SeaLand Toilet Bowl Cleaner (fig.

  • Page 8: Deodorants And Special Tissue

    Non-formaldehyde: Dometic manufactures both types of deodorants. Generally speak- ing, formaldehyde formulas control odor very effectively at all temperatures and with all degrees of water hardness.

  • Page 9: Flush Mechanism Components

    FluSH MecHaniSM coMponentS 1. To access base assembly components, remove decorative screw caps and unscrew two bolts that hold china toilet to floor. 2. Remove access cover from top of china and set it aside. Water Valve Switch Flush Handle Bracket and pulley Flush Handle...

  • Page 10: Troubleshooting

    TRoubLeShooTING Important: Always turn off electrical power and water to the toilet for disassembly. Problem 1. Toilet emits odor (flush ball open). 2. Water will not stay in bowl. 3. Water will not enter bowl. 4. Water will not shut off and overflows bowl.

  • Page 11: Wiring Diagram

    WIRING dIAGRAM oRdeRING PARTS Dometic is ready to assist you in the event service is required. Before calling, please have the following informa- tion available. Your cooperation in having this information ready is appreciated and allows us to better meet your needs.

  • Page 12: Warranty

    If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.

This manual is also suitable for:

Sealand 3200 series
