System board components
J15
HDD LED connector
JP21
Pins 910: Hardware reset connector
Pins 11-13: Power LED connector
S1
U13, U14
Video DR
S o l d e r e d v i d e o R A M
U15, U16
U17, U22,
SIS 85C503, SIS85C501, CMD PCl0640B, and
I U33-U36,
U40-U43
U44
Cache ALT bit chip socket

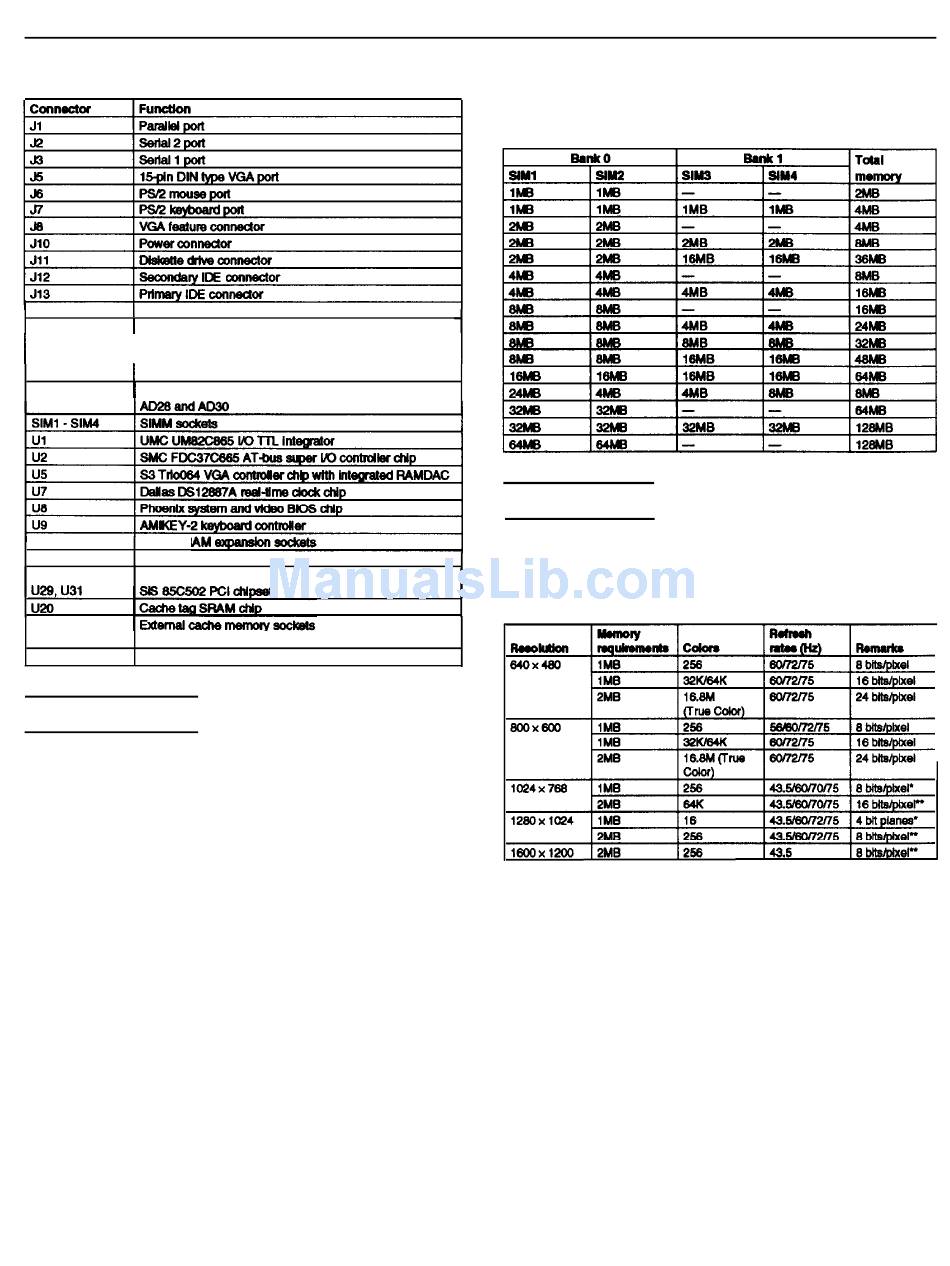

SIMM Installation

The computer comes with 8MB of RAM standard on two
4MB SIMMs. You can increase the memory up to 128MB
using pairs of 1MB, 2MB, 4MB, 8MB, 16MB, 32MB, or 64MB
SIMMs. The SIMMs must be tin-plated, 72-pin, single- or
double-sided, fast-page mode, parity or no-parity type with
an access speed of 70ns or faster. Be sure all the SIMMs
operate at the
speed.
same
EPSON ActionPC 8000, ActionTower 8000
The table below lists all the possible SIMM
not install SIMMs in any other configuration.
SIMM configurations

Video Memory

The computer comes with 1MB of video
increase the video memory to 2MB by installing two 512KB,
40-pin, SOJ flat pack video DRAM chips.
Video resolutions and colors
I
* Non-interlaced and interlaced
** lnterlaced
9/95
configurations;
memory.
ActionPC 8000, ActionTower 8000 - 5
