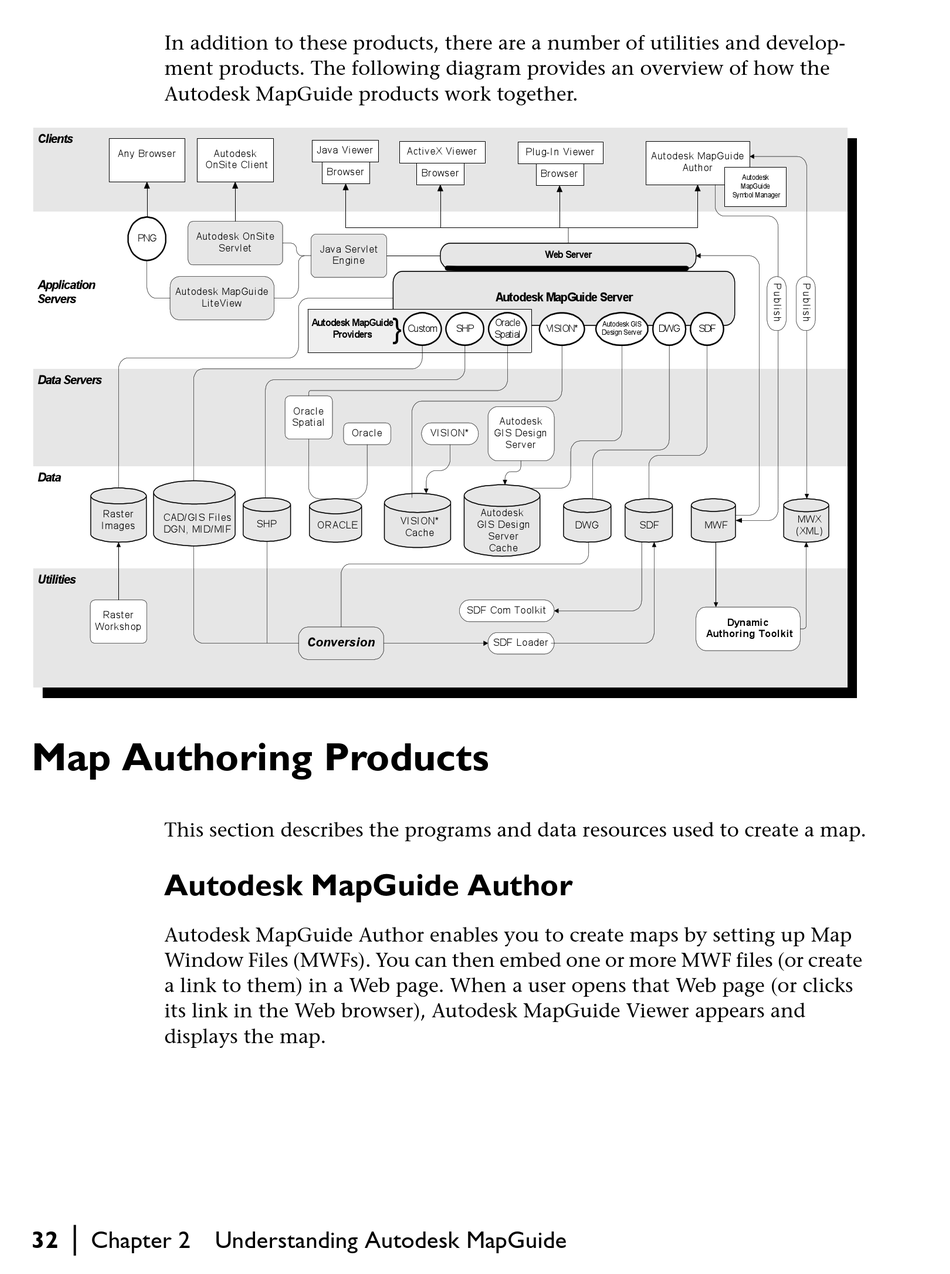

In addition to these products, there are a number of utilities and develop-
ment products. The following diagram provides an overview of how the
Autodesk MapGuide products work together.
Clients
Clients
Any Browser
OnSite Client
Autodesk OnSite
PNG
Application
Autodesk MapGuide
Application
Servers
LiteView
Servers
Data Servers
Data Servers
Data
Data
Raster
CAD/GIS Files
Images
DGN, MID/MIF
Utilities
Utilities
Raster
Workshop

Map Authoring Products

This section describes the programs and data resources used to create a map.

Autodesk MapGuide Author

Autodesk MapGuide Author enables you to create maps by setting up Map
Window Files (MWFs). You can then embed one or more MWF files (or create
a link to them) in a Web page. When a user opens that Web page (or clicks
its link in the Web browser), Autodesk MapGuide Viewer appears and
displays the map.
|
32 Chapter 2 Understanding Autodesk MapGuide
Java Viewer
Autodesk
Browser
Servlet
Java Servlet
Engine
Autodesk MapGuide
Providers
Oracle
Spatial
Oracle
SHP
ORACLE
Conversion
ActiveX Viewer
Plug-In Viewer
Browser
Browser
Web Server
Autodesk MapGuide Server
}
Oracle
Custom SHP VISION*
Spatial
Autodesk
VISION* GIS Design
Server
Autodesk
VISION*
GIS Design
Cache
Server
Cache
SDF Com Toolkit
SDF Loader
Autodesk MapGuide
Author
Autodesk
MapGuide
Symbol Manager
Autodesk GIS
DWG SDF
Design Server
DWG SDF MWF
Dynamic
Authoring Toolkit
MWX
(XML)
