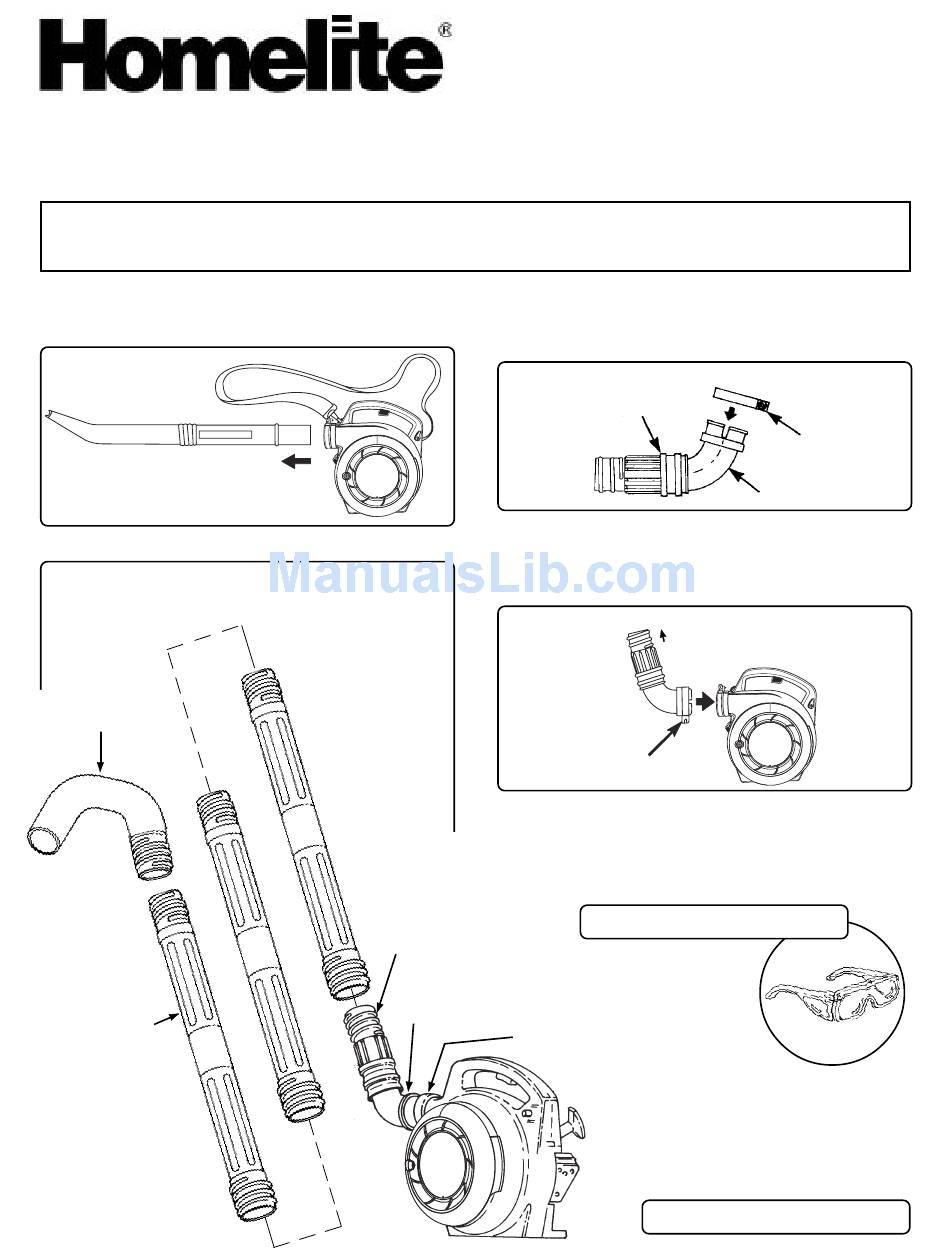

INSTRUCTION SHEET
GUTTER MAINTENANCE KIT
READ ALL SAFETY INSTRUCTIONS IN YOUR OWNER'S MANUAL
For models:
HB180, HB180V, HB180VI, HB180VGK, HB290, HB290V, HB390, HB390V, HB390VI, Yard Sweeper, UT08929A, UT08930A,
UT08120, UT08931, UT08932, UT08934, Vac Attack II, Yard Broom II
1. Make sure blower has been turned off. Remove all tube
attachments from the blower. (See illustration 1.)
ILLUSTRATION 1
REMOVE
ILLUSTRATION 4
FULL
ELBOW
STRAIGHT TUBE
(As required)
2. Make sure adapter is free to rotate on the elbow. Loosen
clamp and install over exposed end of elbow. (See illustra-
tion 2.)
ILLUSTRATION 2
SWIVEL ADAPTER
3. Attach above assembly (as shown in illustration 3) over
blower exhaust until elbow clamp groove matches blower
groove. Align assembly so adapter end points upward.
Tighten clamp screw.
ILLUSTRATION 3
4. Attach full elbow threaded joint onto straight tube. Continue
attaching straight tubes until the preferred length is acquired.
Make sure all joints are screwed tightly into position or the
blower may vibrate and push tubes apart. (See illustration
4.)
SWIVEL
ADAPTER
UPPER
ELBOW
LARGE
CLAMP
SWIVEL ADAPTER POINTS
UPWARD
CLAMP SCREW
WEAR EYE PROTECTION!
KIT DOES NOT INCLUDE BLOWER
19591A
4-04
CLAMP
UPPER ELBOW
