Homelite 16151A Instruction Sheet

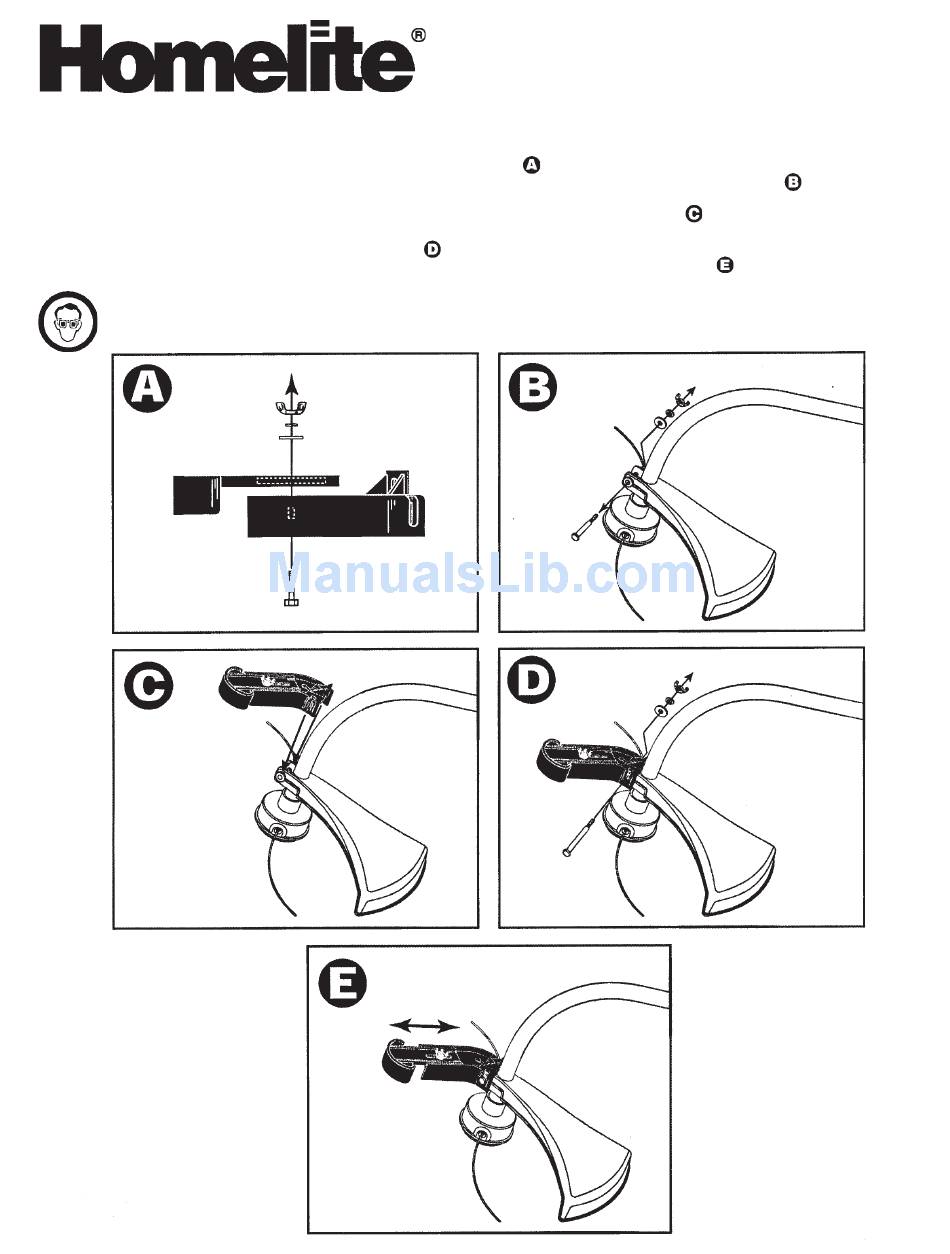

1. Place unit on a flat surface.

2. Using the short bolt, assemble the edger guide as shown in Figure

3. Remove wing nut, lock washer, flat washer and bolt from the deflector on the trimmer, as shown in Figure

NOTE: Put these parts aside for use later when the edger guide is removed.

4. Keeping deflector in place, lift trimmer slightly off the ground. Align edger as shown in Figure

thumbs and snap down onto tabs of deflector. Ensure that slots are aligned.

5. Using long bolt, install hardware as shown in Figure

6. Adjust edger guide to desired trimming length and tighten wing nut securely as shown in Figure

Instruction Sheet - Edger Guide

. Do not tighten wing nut at this point.

P/N 16151 A

Revised 3/6/2002

. Press down firmly on guide with

Table of Contents

Do you have a question about the 16151A and is the answer not in the manual?

Page 1 P/N 16151 A Revised 3/6/2002 Instruction Sheet - Edger Guide 1. Place unit on a flat surface. 2. Using the short bolt, assemble the edger guide as shown in Figure . Do not tighten wing nut at this point. 3. Remove wing nut, lock washer, flat washer and bolt from the deflector on the trimmer, as shown in Figure NOTE: Put these parts aside for use later when the edger guide is removed.
Page 2 Installation du guide de coupe 1. Placer l’appareil sur une surface plane. 2. À l’aide du boulon court, sans complètement serrer l’écrou à oreilles, assembler le guide de coupe comme l’indique la figure 3. Enlever l’écrou à oreilles, la rondelle d’arrêt, la rondelle plate et le boulon du déflecteur comme l’indique la figure 4.
