BLOWER/VAC HIGH PERFORMANCE KIT A-06308
MODELS Affected: HB-180 / HB-180V / HB-390 / HB-390V
NOTE: CLEAN AREAS THOROUGHLY WHERE DECALS ARE BEING APPLIED.

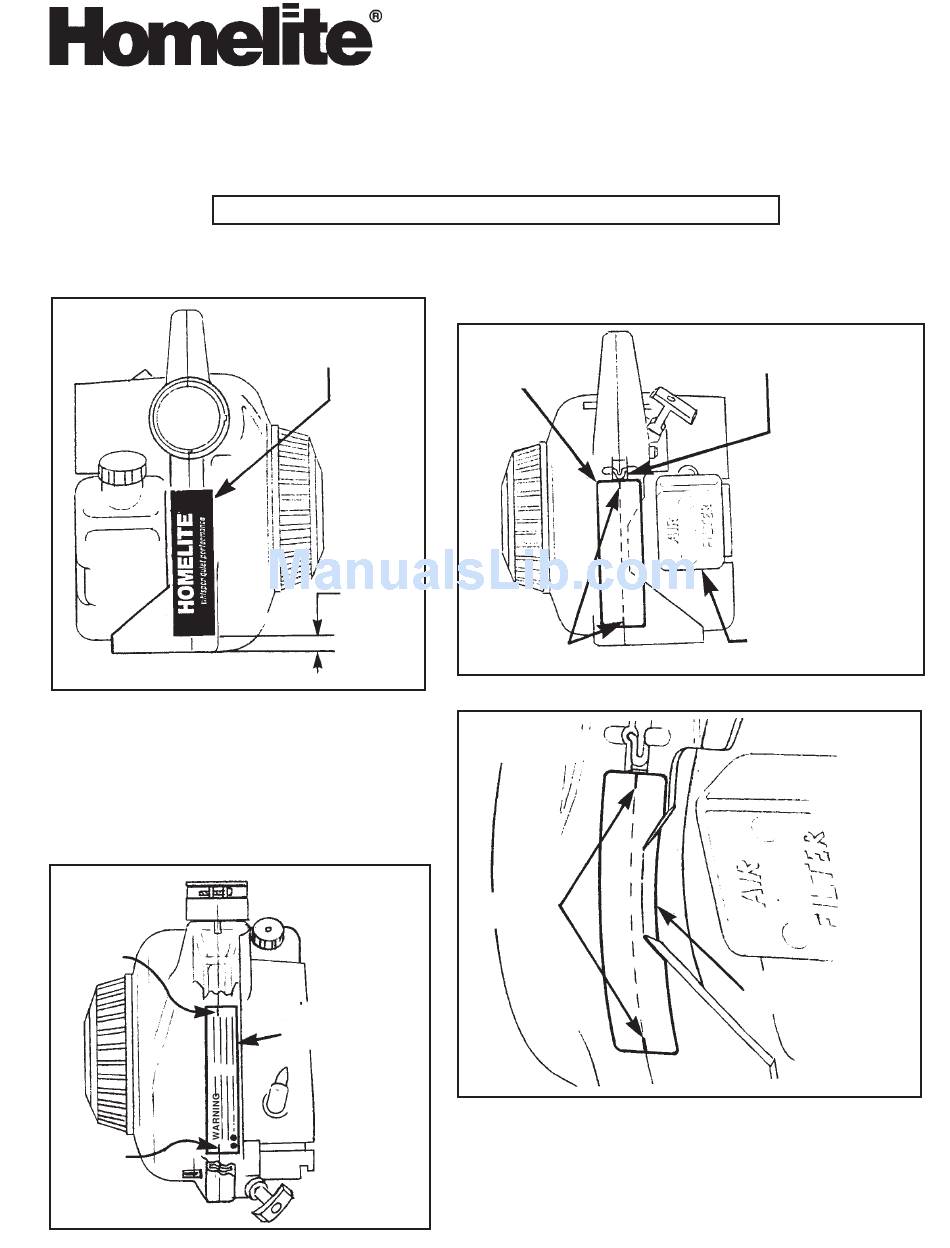

1. Measure up 1/2" from bottom of shown in
Figure 1. Apply new (Black) HOMELITE Decal
over seam as shown.
FIGURE 1
2. Remove original WARNING Decal from housing
underneath the handle. Position New Long
WARNING Decal as shown in Figure 2. Align
Sight Marks on each end of the decal to the seam
as shown. Center lengthwise beneath the handle.
FIGURE 2
Sight Marks
S i g h t
Marks
INSTRUCTION SHEET
(BLACK)
HOMELITE Decal
1/2"
from
bottom.
4. Fold Red Decal as shown in Figure 4.
New Long
WARNING Decal
FOR
3. Align Red Decal with the Lower Edge of the Hanger Notch
and apply. Position Sight Marks of decal along volute seam
next to Air Filter.
FIGURE 3
Red Decal
Sight Marks
FIGURE 4
Sight Marks
P/N 19056
Lower Edge of
Hanger Notch
Air Filter
Fold as shown
