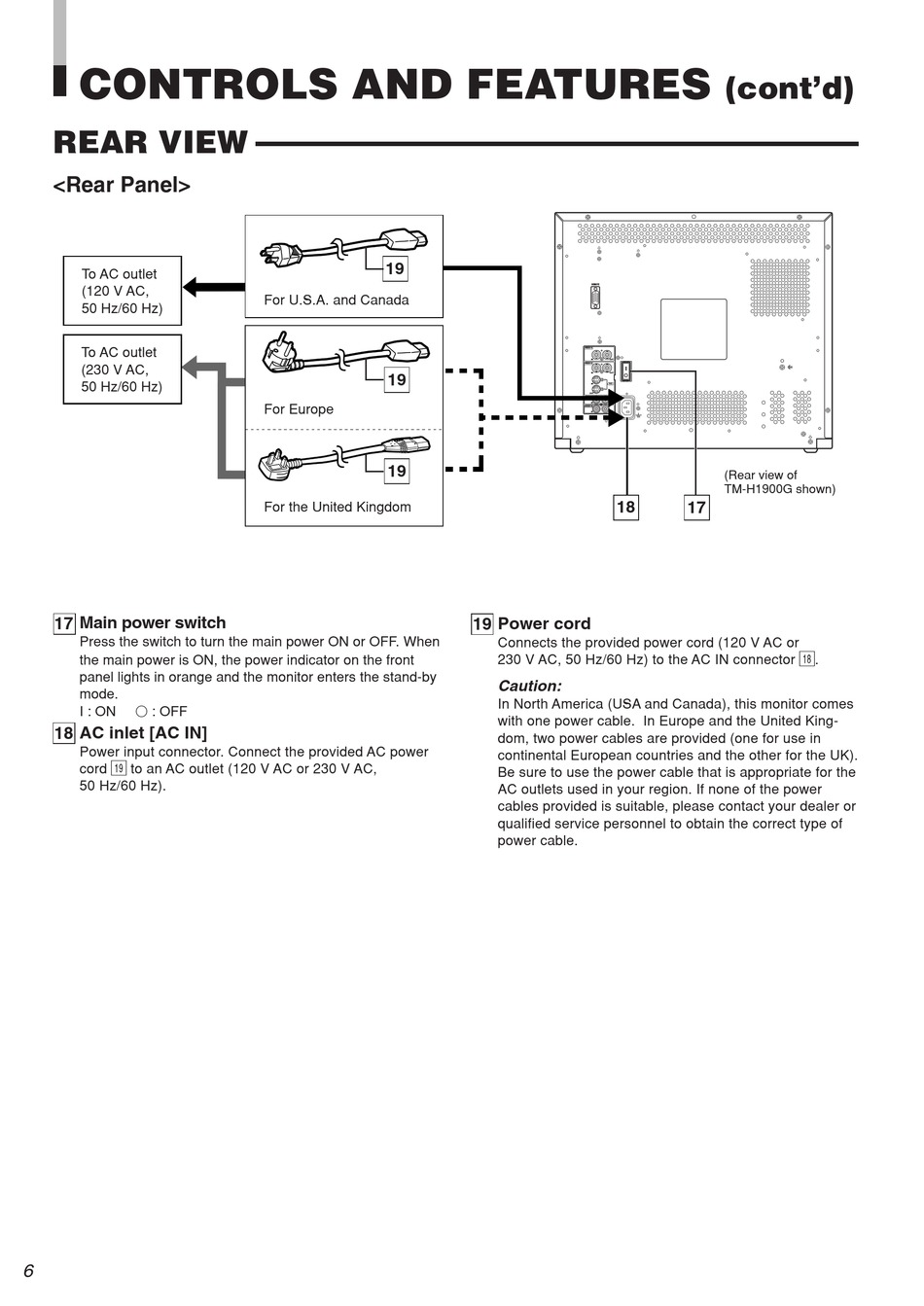

CONTROLS AND FEATURES

REAR VIEW
<Rear Panel>
To AC outlet
(120 V AC,
50 Hz/60 Hz)
To AC outlet
(230 V AC,
50 Hz/60 Hz)
17 Main power switch
Press the switch to turn the main power ON or OFF. When
the main power is ON, the power indicator on the front
panel lights in orange and the monitor enters the stand-by
mode.
I : ON : OFF
18 AC inlet [AC IN]
Power input connector. Connect the provided AC power
(
cord to an AC outlet (120 V AC or 230 V AC,
50 Hz/60 Hz).
6
19
For U.S.A. and Canada
19
For Europe
19
For the United Kingdom
REMOTE
VIDEO A
IN OUT
VIDEO B
IN OUT
Y/C
IN
OUT
AUDIO A
IN OUT
AUDIO B
IN OUT
18
Power cord
19
Connects the provided power cord (120 V AC or
230 V AC, 50 Hz/60 Hz) to the AC IN connector
Caution:
In North America (USA and Canada), this monitor comes
with one power cable. In Europe and the United King-
dom, two power cables are provided (one for use in
continental European countries and the other for the UK).
Be sure to use the power cable that is appropriate for the
AC outlets used in your region. If none of the power
cables provided is suitable, please contact your dealer or
qualified service personnel to obtain the correct type of
power cable.
